Power Distribution Panel – 30A AC/DC - Progressive Dynamics

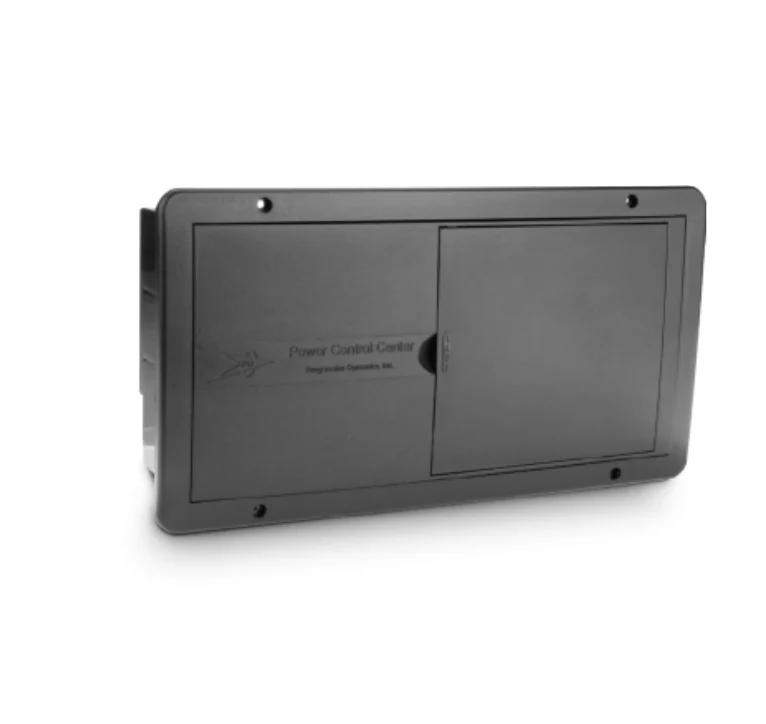

The Progressive Dynamics PD50K3Q2GP 5000 Series power distribution panel organizes 120V AC and 12V DC circuits in RVs, campers, and trailers. Its lightweight, impact-resistant black polymer housing provides generous wiring space, quick-connect terminals, and convenient access to AC breakers and DC fuses.

FEATURES

• 30A AC distribution: Accommodates one 30A, 120V AC main breaker and up to 9 AC branch circuits.

• 12V DC distribution: Supports up to 12 fused DC branch circuits for lighting and appliances.

• Fuse compatibility: Accepts rated fuses up to 30A, including circuits for slide-outs and leveling jacks.

• Quick-connect wiring: Includes 30A quick-connect terminals and two DC inputs.

• Integrated connections: DC ground block and AC outlet located on the rear of the panel.

• Simplified installation: Generous wiring space and built-in strain relief for branch circuits.

• Durable construction: Lightweight, black, impact-resistant, high-temperature polymer housing.

SPECIFICATIONS

• AC rating: 30A, 120V AC

• DC system: 12V DC

• AC branch circuits: Up to 9

• DC branch circuits: Up to 12 fused circuits

• Maximum DC fuse rating: 30A

• Connections: 30A quick-connect terminals; two DC inputs

• Additional features: Rear DC ground block and AC outlet

• Material: Black impact-resistant polymer

• Panel dimensions (W × H × D): 13.4 × 7.1 × 4.0in

• Required cutout (W × H): 12.25 × 5.875in

IMPORTANT: This is a power distribution panel only. A separate compatible converter/charger is required to convert AC power to DC and charge the battery. Circuit breakers, fuses, and other installation components may need to be purchased separately.
