Pundmann Therm Air Flow Heat 10L 4-in-1 Water Heater (Engine, Air, 12V + 110V)

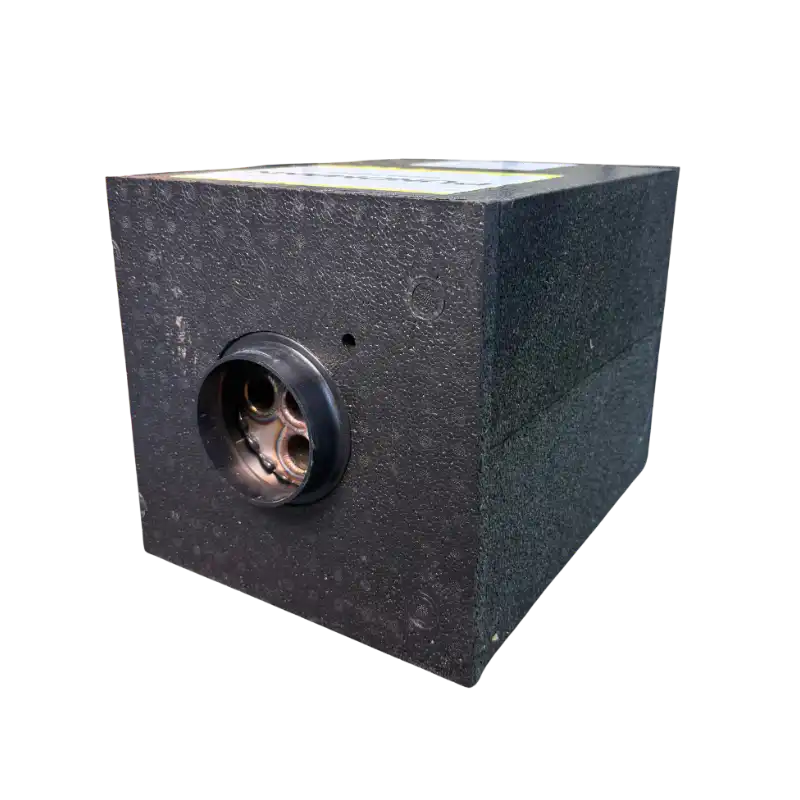

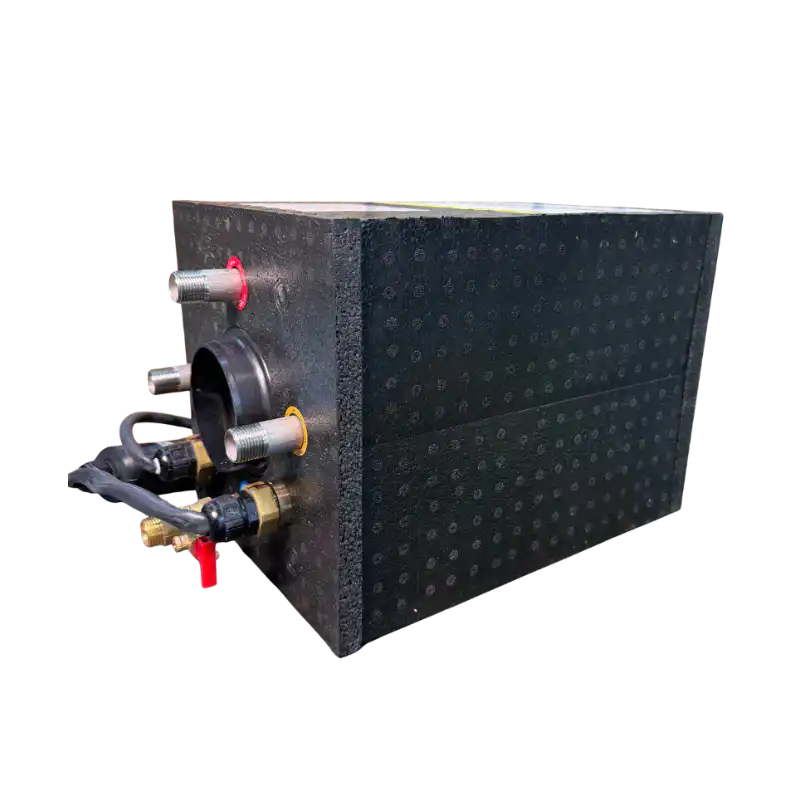

The Pundmann Therm Air Flow Heat 10L is a 4-in-1 water heater designed for camper vans, RVs, and off-grid builds. It heats water using engine coolant, an auxiliary air heater, 12V DC power, or 110V AC shore power, maximizing energy efficiency and reducing reliance on a single heat source. Its 10L food-grade stainless steel tank makes it an ideal solution for extended travel and self-sufficient adventures.

FEATURES

• Four Heating Sources: Heat water using engine coolant, a compatible diesel or gasoline auxiliary air heater, 12V DC, or 110V AC.
• Maximum Energy Efficiency: Captures waste heat while driving or running a parking heater, reducing electrical power consumption.
• Efficient & Durable: Features a 10L food-grade stainless steel tank with EPP insulation for outstanding heat retention.

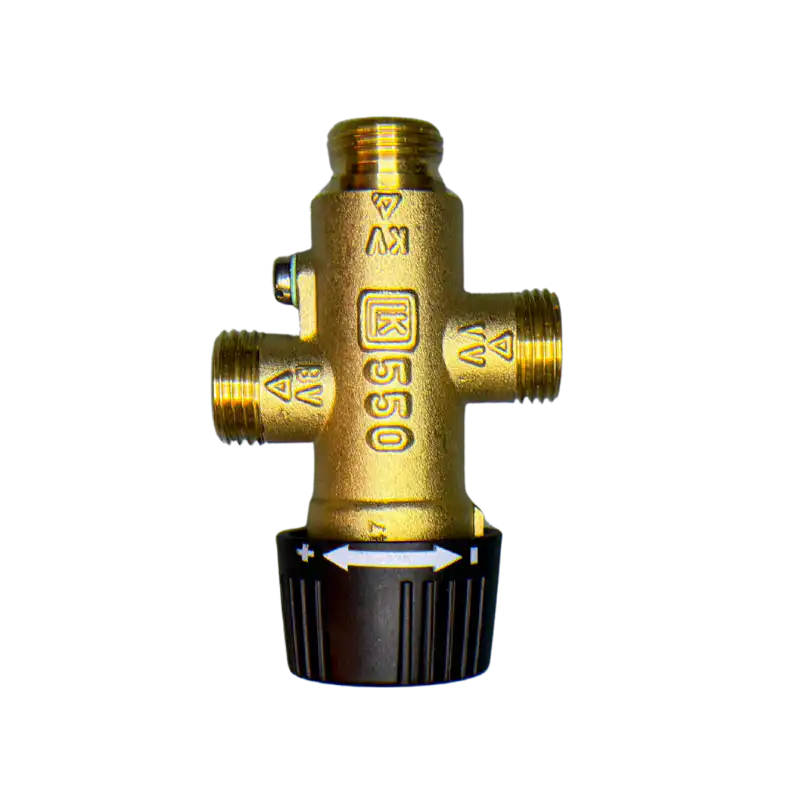

• Integrated Safety: Includes an automatic thermostat (70–75°C), a 3.5 bar pressure relief valve, and a thermostatic mixing valve to help prevent scalding.
• Easy Maintenance: Equipped with a drain valve for winterization and a DC/DC controller with selectable fast and slow heating modes.

SPECIFICATIONS

• Capacity: 10 liters
• Power Supply: 12V DC / 110V AC (US Specification)
• Power Output: 200W (12V) / 1000W (110V)
• Heat Sources:
  • Engine coolant while driving
  • Auxiliary diesel or gasoline air heater
  • 12V DC battery or solar
  • 110V AC shore power or generator
• Maximum Pressure: 3.5 bar
• Air Duct Connection: 90 mm (60 mm adapter available separately)
• Dimensions: 20.4" L × 9.0" W × 7.9" H (517 × 229 × 200 mm)
• Compatibility: Works with compatible 2kW and 4kW auxiliary air heaters, including Autoterm, Webasto, and Espar.
• Application: Suitable for pressurized water systems

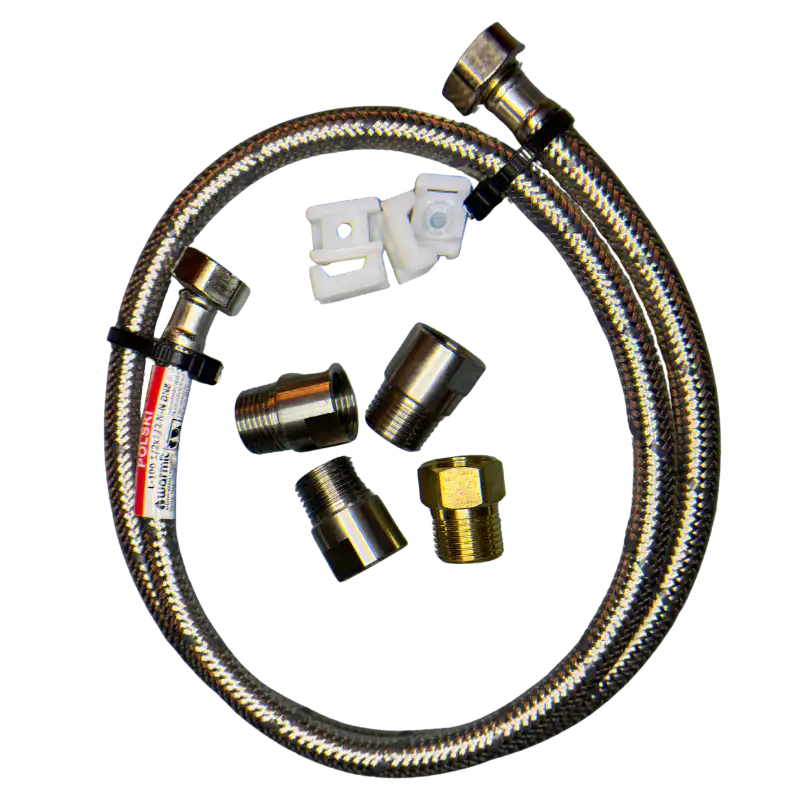

• Included: Mixing valve, drain valve, DC/DC switch, pressure relief valve
• Engineered in: Germany
