Victron Energy 24/375 120V VE.Direct NEMA 5-15R Phoenix Inverter

The Victron Energy Phoenix Inverter 24/375 converts 24V DC battery power into 120V AC electricity to operate household appliances and other equipment in RVs, campervans, and off-grid applications. It provides 300W of continuous power and up to 700W of peak power, with a standard NEMA 5-15R AC outlet.

FEATURES

• Input voltage: 24V DC

• AC output: 120V, adjustable 50Hz or 60Hz

• Continuous power: 300W at 25°C; 260W at 40°C

• Peak power: 700W

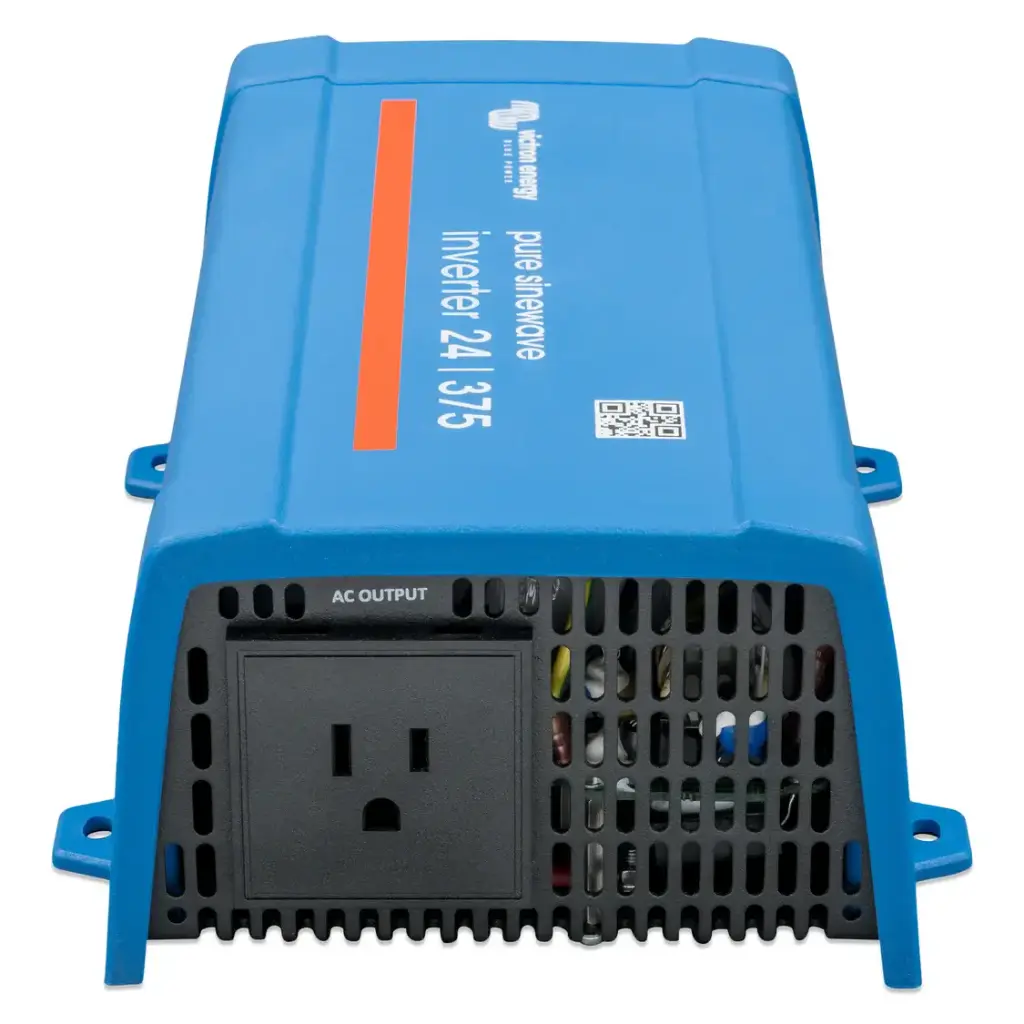

• AC outlet: NEMA 5-15R

• Communication: VE.Direct port for monitoring and configuration

• ECO mode: Reduces standby power consumption when the connected load is low

• Protection: Short-circuit, overload, and overheating protection

• Remote control: Compatible with a remote on/off switch

• Battery connection: Screw terminals

MONITORING AND CONFIGURATION

• Configure low-battery alarms, shutdown and restart thresholds, output frequency, and ECO mode.

• Monitor input/output voltage, load percentage, and alarms.

• Connect to a computer using a VE.Direct-to-USB interface cable or to compatible mobile devices using a VE.Direct Bluetooth Smart dongle. These accessories are sold separately.

• An optional Victron Filax automatic transfer switch can transfer the load to another AC power source.

DIMENSIONS AND WEIGHT

• Dimensions (H × W × D): 3.3 × 7.2 × 10.2 in (85 × 182 × 260 mm)

• Weight: 6.6 lb (3.0 kg)
