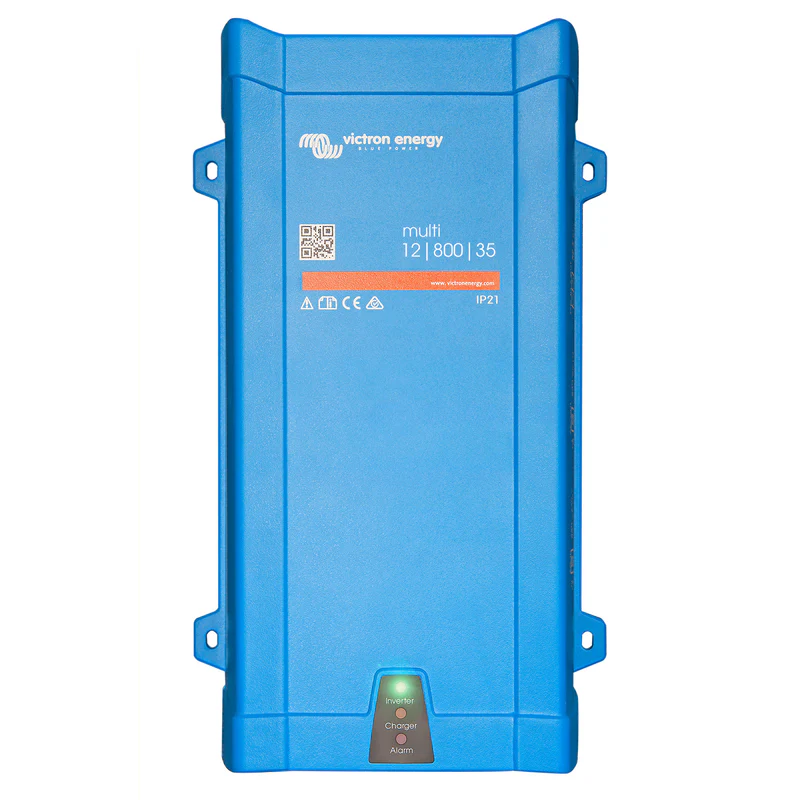

Victron Energy MultiPlus 12/800/35-16 - 120V VE.bus Inverter/Charger

Datasheets  Manual

The Victron Energy MultiPlus 12/800/35-16 combines a pure sine wave inverter, adaptive battery charger, and automatic transfer switch in one compact unit. Designed for 12V battery systems, it provides 120V AC power for RVs, marine applications, and off-grid installations, with PowerControl and PowerAssist to help manage limited external power.

FEATURES

• DC input voltage: 12V

• AC output: 120V, 60Hz

• Continuous output power: 700W at 25°C; 650W at 40°C; 400W at 65°C

• Peak power: 1600W

• Battery charging current: 35A

• AC input current: 16A transfer switch

• Transfer time: Less than 20ms when switching to inverter power

• PowerControl: Limits AC input current to help prevent overloads

• PowerAssist: Supplements limited shore or generator power with battery power during periods of high demand

• Adaptive charging: Adjusts the charging process to help optimize battery charging

• Communication: VE.Bus port for system monitoring and integration

• Parallel operation: Supports parallel and compatible three-phase configurations

• Protection: Short-circuit, overload, and overheating protection

• Dimensions (H × L × P) : 14,2 × 9,4 × 3,9 po (360 × 240 × 100 mm)

APPLICATIONS

• RVs and campervans

• Marine electrical systems

• Off-grid and mobile power installations

• Backup power for compatible electronic equipment and appliances
