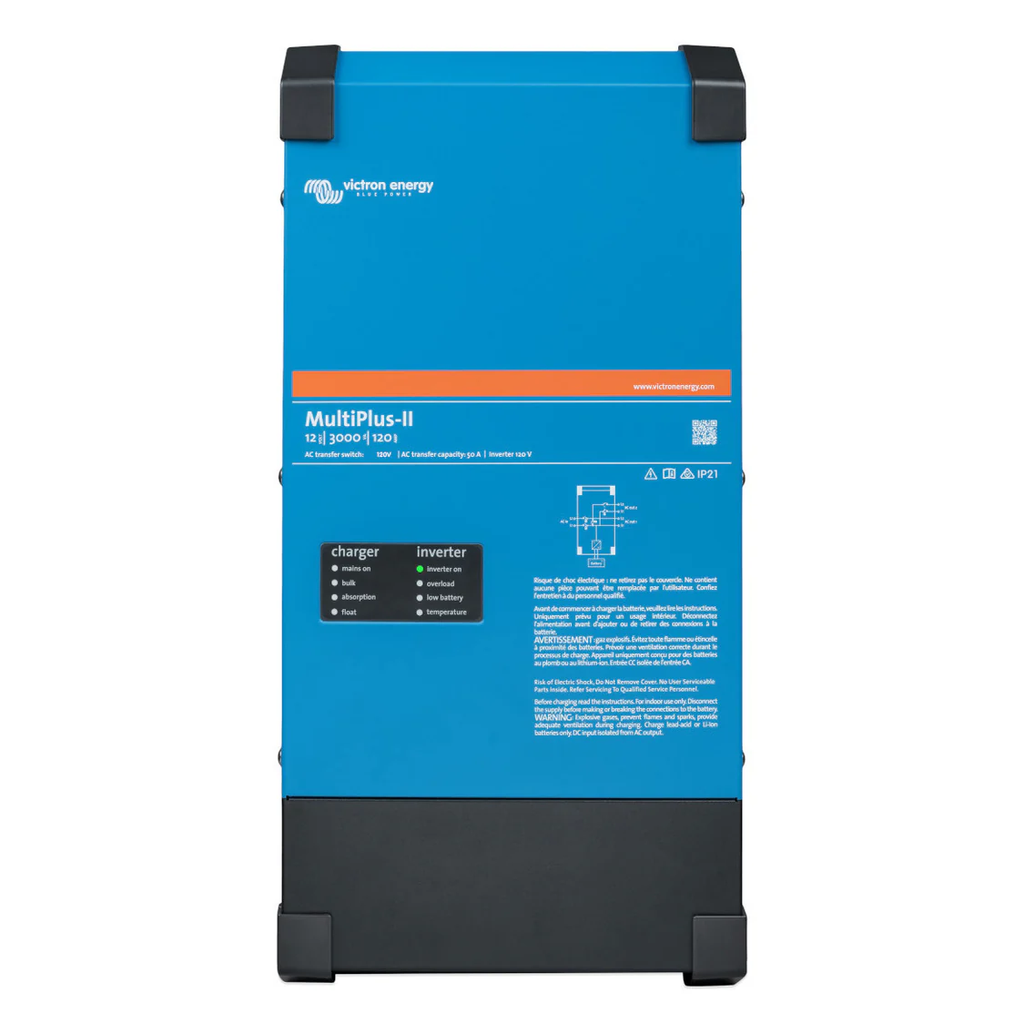

The Victron Energy MultiPlus-II 12/3000/120-50 combines an inverter, battery charger, and automatic transfer switch in one unit. Designed for 12V battery systems, it provides reliable 120V AC power for RVs, marine applications, and off-grid or hybrid installations, with intelligent power management and remote monitoring capabilities.

FEATURES

  • DC input voltage: 12V

  • AC output: 120V, 60Hz

  • Continuous output power: 2400W at 25°C; 2200W at 40°C; 1700W at 65°C

  • Peak power: 5500W

  • Battery charging current: 120A

  • AC input current: Maximum 50A

  • Transfer switch: Integrated, 50A

  • Dual AC outputs:

    • Main output: Provides uninterrupted power transfer between external AC power and inverter power, with a transfer time under 20ms

    • Auxiliary output: Powers selected loads only when external AC power is available

  • PowerControl and PowerAssist: Help prevent input overloads and supplement limited shore or generator power with battery power during peak demand

  • Energy system integration: Compatible with solar charge controllers, grid-connected inverters, and other energy systems

  • Communication: VE.Bus port for remote monitoring, parallel operation, split-phase and three-phase configurations, and system integration

  • Remote control: Remote on/off capability

  • Protection: Against overloads, short circuits, high or low battery voltage, and overheating

  • Certification: UL 458

MONITORING AND CONFIGURATION

  • Configure the unit using VEConfigure with an MK3-USB interface.

  • Monitor and control the system through compatible devices such as Cerbo GX, Venus GX, and Color Control GX, or through the Victron VRM Portal.

  • Supports connecting up to six units in parallel and compatible split-phase or three-phase configurations.

  • Compatible with suitable battery chemistries, including LiFePO₄.

DIMENSIONS AND WEIGHT

  • Dimensions (H × W × D): 22.7 × 10.9 × 5.8 in (578 × 277 × 148 mm)

  • Weight: 42 lb (19 kg)
