Spare tire support - Left door - Transit - PHLÖ SYSTEM
DESIGNED AND MANUFACTURED IN CANADA BY PHLÖ SYSTEM

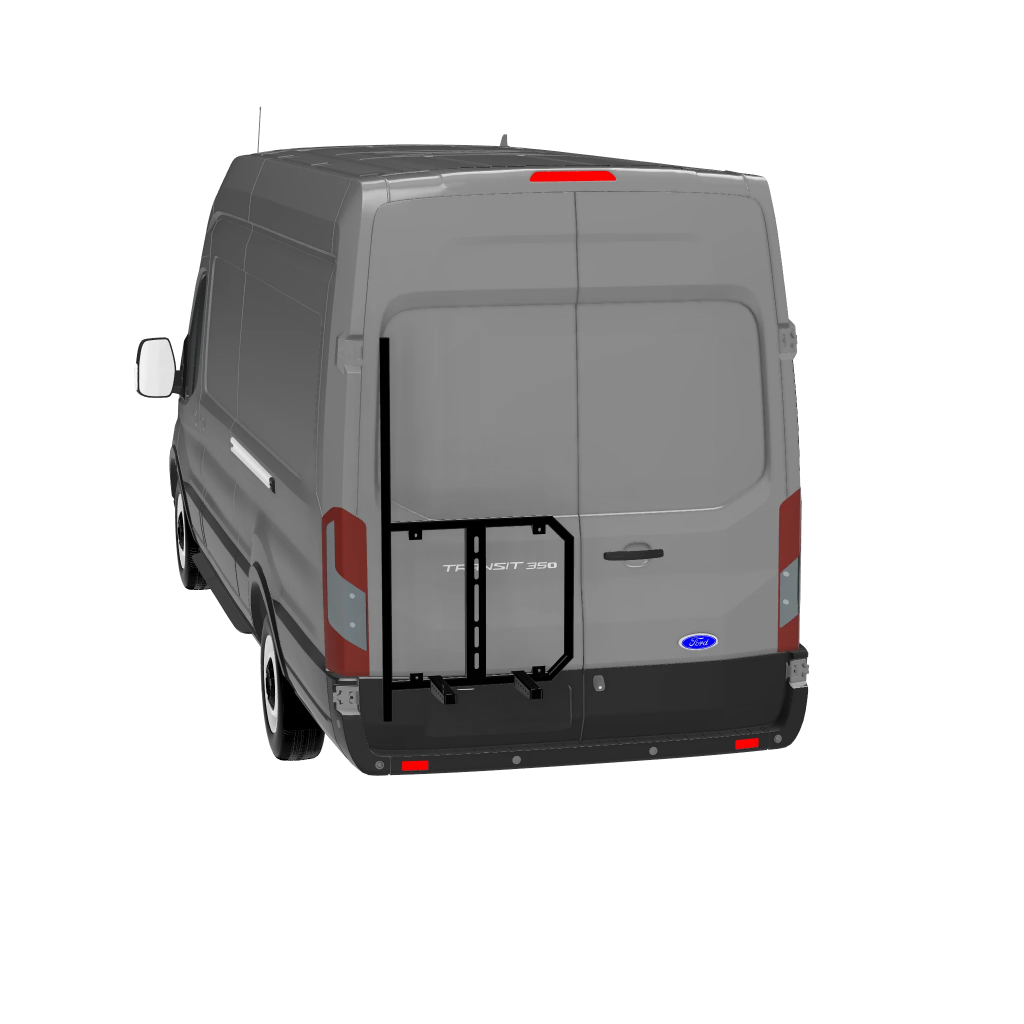

Left rear driver side spare tire carrier for Ford Transit 2015+. Carriers install over existing door hardware and do not require drilling new holes in the doors. Carrier is adjustable to fit a wide variety of tire sizes and includes 2 adapters for steel wheels or rims. Carriers follow the door opening motion, allowing for easy access to the vehicle interior. Included with each carrier are two 10-inch support arms with 1.5-inch diameter tube mounts.
This item is not included in our free shipping policy. Canada RV will contact you with a shipping quote following your purchase. You can also contact us before placing your order.
Specifications:
- 6061 Aluminum Bracket
- Fully TIG welded aluminum construction
- Two 10-inch support arms with 1.5-inch diameter tube mounts are included with each bracket.
- Load capacity of 200 lbs, including weight of the rack
- Weight of bracket with fixing and hardware: 18 lbs
- 308 Stainless Steel Hinge Bracket Fixing
- Stainless Steel Fastening Hardware
- Textured black powder coat baked paint
- Designed to fit all standard to off-road Ford Transit tyre sizes
- Tire mounting adapter for steel wheel and 5x160 and 6x180 rims
- Designed for Transit vans with or without rear windows.
Warnings:
- May cause reversing sensors to beep when reversing (varies by van)
- Padlock included.
- When fully charged, the door should be closed with intention, not slammed.
- Overloading chests or accessories may damage doors and hinges, and this will void your warranty.
- Installation cost: $150 from CANADA RV.
| Installation | I'll do the installation myself. or I want Canada RV to install it. |
