Victron Energy MultiPlus 24/2000/50-50 120V VE.Bus (UL Certified) Inverter/Charger

Data Sheet     User Manual

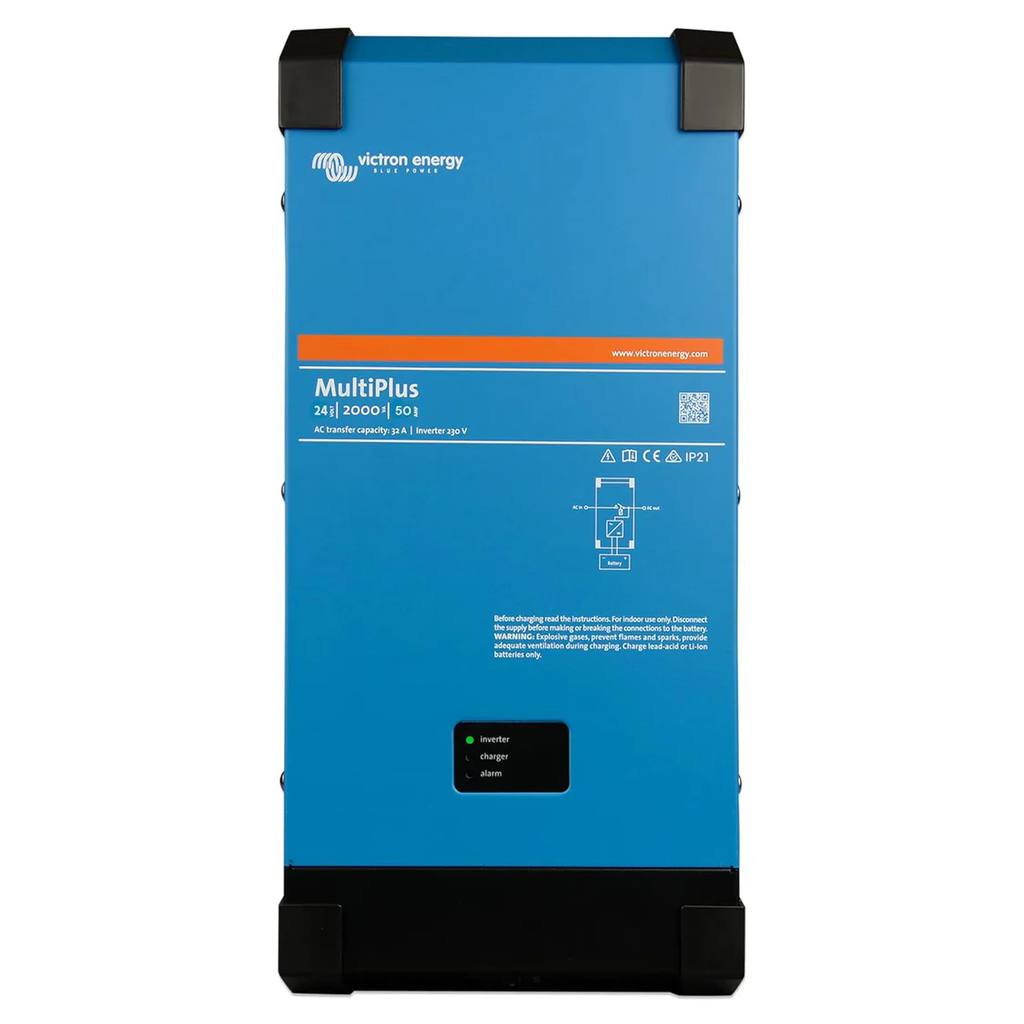

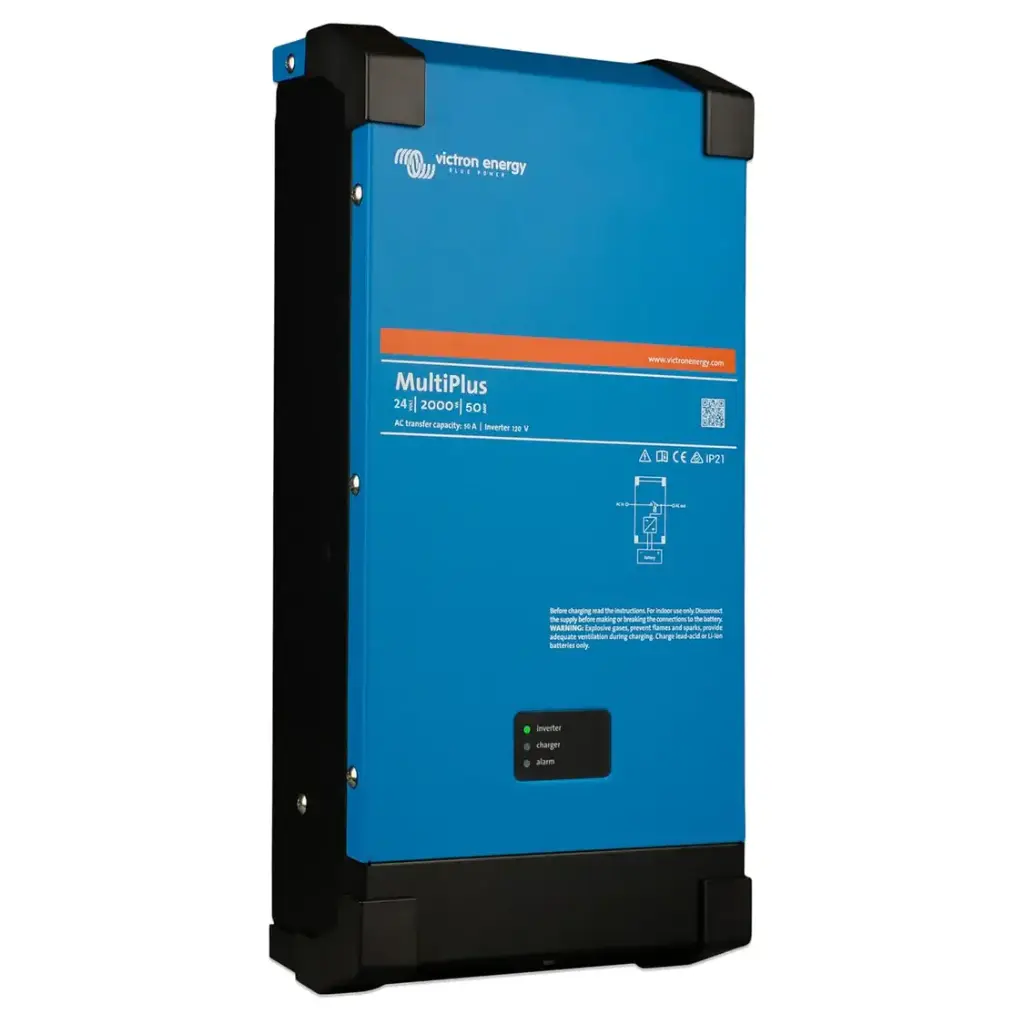

The Victron Energy MultiPlus 24/2000/50-50 combines a pure sine wave inverter, adaptive battery charger, and automatic transfer switch in one compact unit. Designed for 24V battery systems, it provides reliable 120V AC power for RVs, marine applications, and off-grid installations, with intelligent power management and seamless switching between external AC power and inverter power.

FEATURES

• DC input voltage: 24V

• AC output: 120V

• Continuous power: 1600W at 25°C

• Peak power: 3500W for 3 seconds

• Battery charging current: 50A

• AC input: One 120V input

• Transfer switch: Integrated, 50A

• AC outputs: Two 120V outputs

• PowerControl: Limits AC input current to help prevent overloads when shore or generator power is limited

• PowerAssist: Supplements limited external AC power with battery power during periods of high demand

• Adaptive charging: Adjusts the battery charging process to help optimize charging performance

• Automatic transfer: Switches to inverter power in less than 20ms when external AC power is interrupted

• Communication: VE.Bus port for system monitoring and integration

• Expandable system: Supports up to six units in parallel and compatible three-phase configurations

• Protection: 200A DC fuse protection specified by the supplier

• Certification: UL 458

DIMENSIONS AND WEIGHT

• Dimensions (H × W × D): 19.9 × 9.3 × 5.8 in (506 × 236 × 147 mm)

• Weight: 34.2 lb (15.5 kg)
