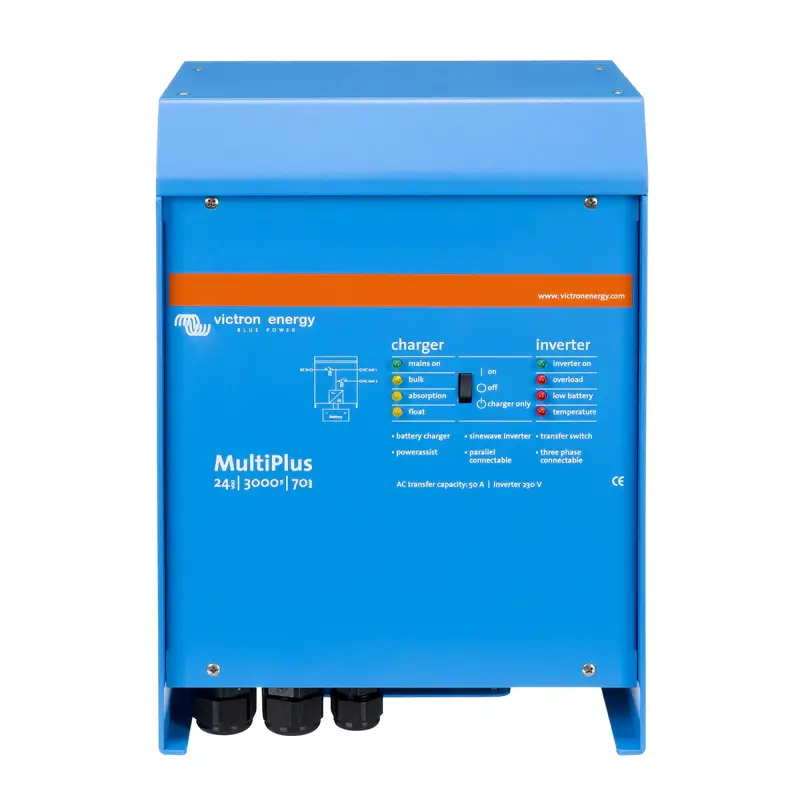

Victron Energy MultiPlus 24/3000/70-50 120V VE.Bus (UL Certified) Inverter/Charger

The Victron Energy MultiPlus 24/3000/70-50 combines a pure sine wave inverter, adaptive battery charger, and automatic transfer switch in one compact unit. Designed for 24V battery systems, it provides 120V AC power for RVs, marine applications, and off-grid installations, with intelligent power management and flexible system integration.

FEATURES

• DC input voltage: 24V

• AC output: 120V, 60Hz

• Continuous output power: 2400W at 25°C; 2200W at 40°C; 1700W at 65°C

• Peak power: 6000W for 3 seconds

• Battery charging current: 70A

• AC input: One 120V input

• Transfer switch: Integrated, 50A

• AC outputs: Two 120V outputs

  • Main output: Automatically switches to inverter power when external AC power is interrupted, with a transfer time under 20ms

  • Auxiliary output: Powers selected loads only when external AC power is available

• PowerControl and PowerAssist: Help manage limited AC input power and supplement it with battery power during periods of high demand

• Communication: VE.Bus port for remote monitoring and system integration

• Expandable system: Supports up to six units in parallel and compatible three-phase configurations

• Protection: 300A DC protection specified by the supplier

• Certification: UL 458 and UL 1741

DIMENSIONS AND WEIGHT

• Dimensions (H × W × D): 14.3 × 10.2 × 8.6 in (362 × 258 × 218 mm)

• Weight: 40 lb (19 kg)
