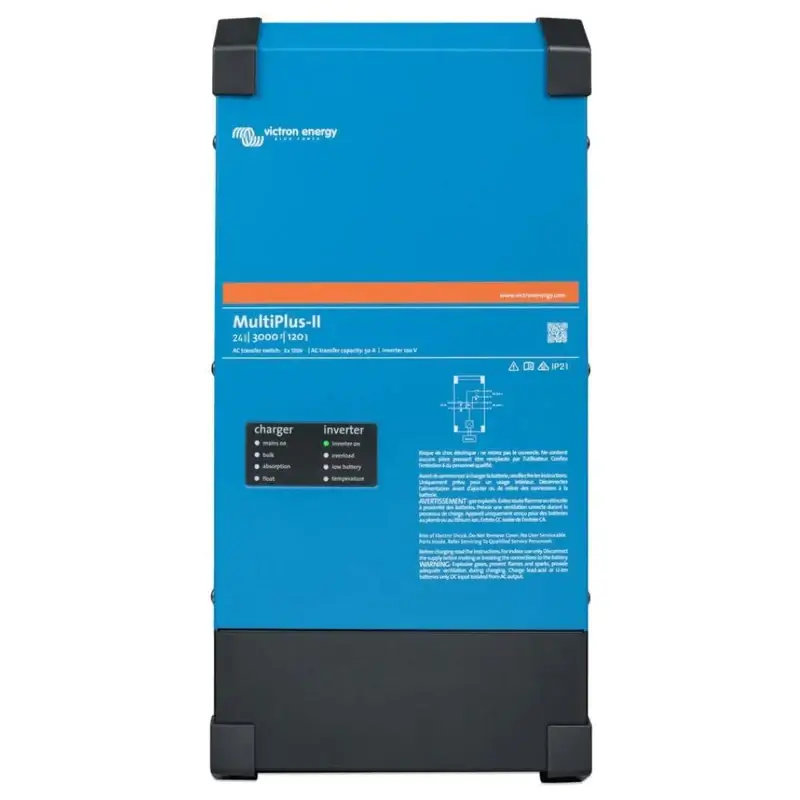

Victron Energy MultiPlus-II 24/3000/70-50 2x120V (UL certified) Inverter/Charger
100% original guarantee
Return within 30 days for most orders
Free delivery on most orders
Victron Energy MultiPlus-II 2x 120V Inverter/Charger – Advanced Split-Phase Power for North American Systems
The Victron Energy MultiPlus-II 2x 120V is a powerful all-in-one inverter and charger designed specifically for North American 120/240V split-phase systems. Ideal for marine, RV, off-grid, and mobile power applications, it delivers seamless power transfer, efficient charging, and advanced system management.
Key Features:
-
Optimized for 120/240V Split-Phase or 120V Single-Phase Input
Accepts shore or generator power from either 120/240V split-phase or 120V single-phase sources, automatically adapting for passthrough and charging. -
Reliable 120V Output in All Scenarios
Always provides 120V output—even in inverter mode—by internally bridging L1 and L2. Supplies both sides of a distribution panel when grid power is unavailable. -
240V Loads Only When Split-Phase Power Is Available
Heavy 240V appliances (e.g., air conditioners or water heaters) are powered only when true split-phase AC input is connected—preventing unnecessary battery drain. -
PowerControl & PowerAssist
Prevents overload by limiting input current (PowerControl), and temporarily supplements generator/grid power with battery power during high-demand periods (PowerAssist). -
Dual AC Outputs
- Main output (L1): Seamless transfer in <18 ms—ideal for sensitive electronics.
- Auxiliary output (L2): Powers only when AC input is active—perfect for non-critical loads that shouldn’t drain batteries.
-
Parallel & 3-Phase Capability
Scale your system by connecting up to six units in parallel or configuring them in three-phase setups for higher output and flexibility. -
Flexible Configuration & Monitoring
- On-site via VEConfigure (with MK3-USB)
- Remote monitoring/control via Cerbo GX, Color Control GX, or the Victron VRM Portal
- Bluetooth-enabled (with optional VE.Bus Smart Dongle)
- Compatible with LiFePO₄ and other battery chemistries
Technical Highlights:
- Input Voltage: 120V single-phase or 120/240V split-phase
- Output Voltage (Inverter Mode): 120V on both L1 and L2
- Max Parallel Units: 6
- Grid & Generator Integration: Full PowerControl and PowerAssist functions
- Monitoring Options: Cerbo GX, Venus GX, CANvu GX, Bluetooth (dongle required)
The Victron MultiPlus-II 2x 120V is the ultimate North American mobile power solution—offering intelligent control, seamless operation, and scalable power for complex off-grid or hybrid systems.
No Specifications
