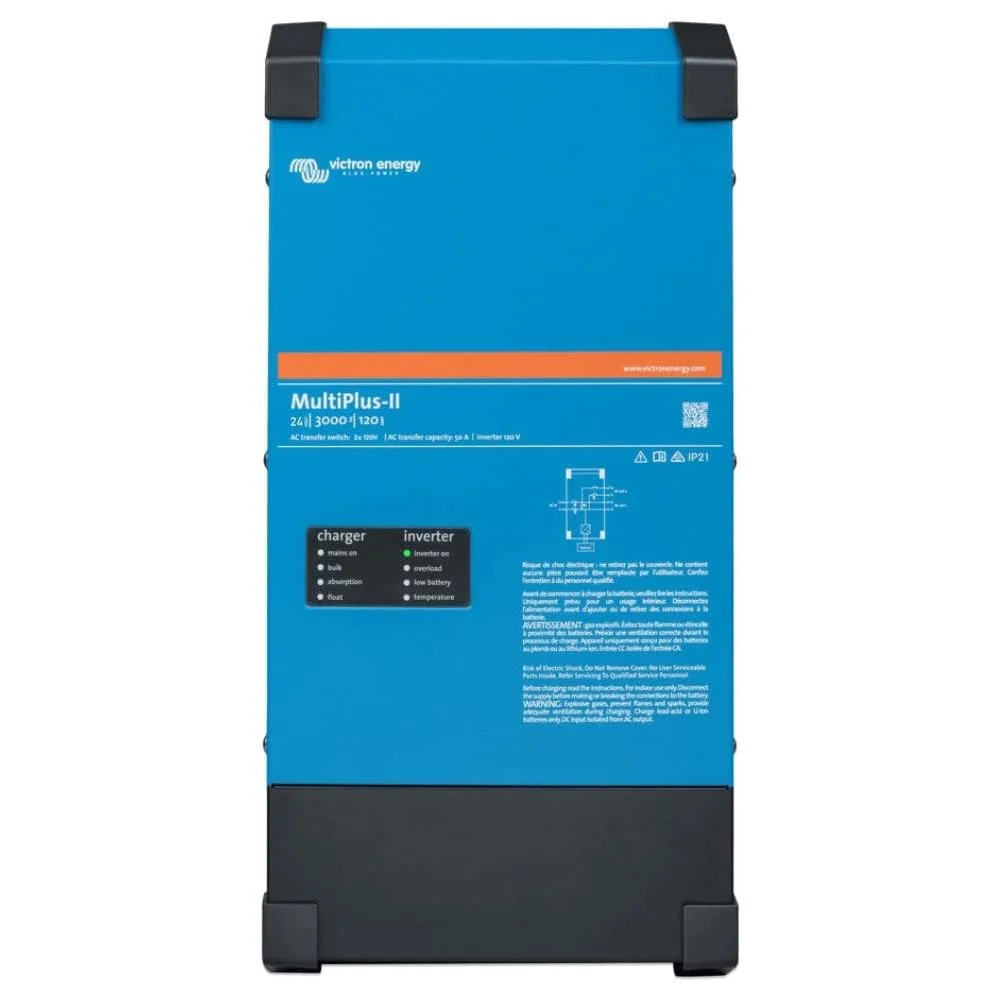

Victron Energy MultiPlus-II 24/3000/70-50 2x120V (UL certified) Inverter/Charger

Datasheets   Manual

The Victron Energy MultiPlus-II 24/3000/70-50 combines an inverter, battery charger, and transfer switch for North American RV, marine, mobile, and off-grid power systems. Designed for 120V single-phase or 120/240V split-phase installations, it provides intelligent power management with PowerControl and PowerAssist.

FEATURES

• Battery voltage: 24V DC

• AC input: 120V single-phase or 120/240V split-phase

• Inverter output: 120V on both L1 and L2 in inverter mode

• Transfer time: Less than 18ms for the main AC output

• PowerControl: Limits AC input current to help prevent overloads

• PowerAssist: Supplements limited shore or generator power with battery power during peak demand

• Dual AC outputs:

  • Main output (L1): Transfers automatically between AC input and inverter power

  • Auxiliary output (L2): Available when external AC input is present

• Scalability: Supports up to six units in parallel and compatible three-phase configurations

• Monitoring and configuration: Compatible with VEConfigure, MK3-USB, Cerbo GX, Color Control GX, and the Victron VRM Portal

• Bluetooth: Available with an optional VE.Bus Smart Dongle

• Battery compatibility: Supports LiFePO₄ and other compatible battery chemistries

• Certification: UL certified

APPLICATIONS

• RVs, campervans, and marine electrical systems

• Off-grid and hybrid power installations

• Systems requiring automatic transfer between shore power, generator power, and inverter power

• Installations requiring scalable power and remote monitoring
