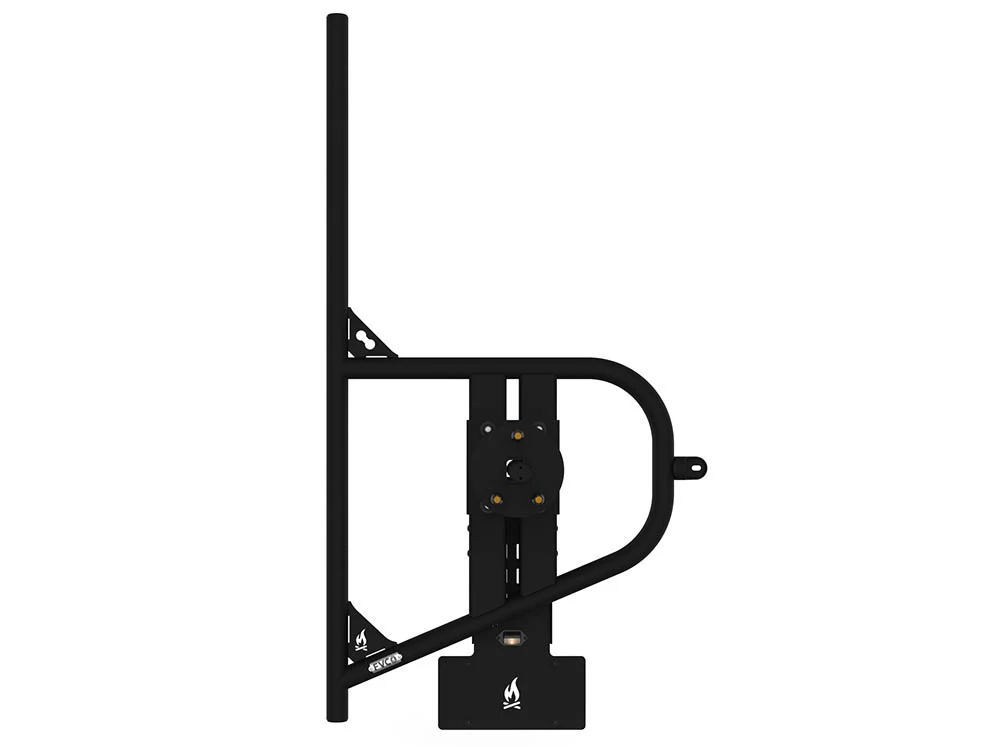

Promaster Rear Tire Carrier

View the Installation Guide

The ProMaster Rear Tire Carrier relocates the spare tire to the driver-side rear door, freeing valuable underfloor space for water tanks, auxiliary fuel tanks, or other equipment. Constructed from 1.75" aluminum round tubing and 3/16" formed aluminum, this lightweight yet durable carrier uses stainless-steel hinge brackets and requires only one additional mounting point on the rear door. Installation takes approximately one hour using basic hand tools and the included drilling template.

FEATURES

• Rear Door-Mounted Spare: Fits tires up to 245/70/R16 or equivalent, allowing larger-than-stock tires while freeing underfloor storage space.
• Adjustable Mounting: Includes an adjustable locking rod compatible with a traditional hitch lock and M14 × 1.5 × 68 mm wheel studs with locking lug nuts and key.
• Door Protection: Dual-shock silicone dampener absorbs impacts in both directions, while the included door strap limits opening.
• License Plate Relocation: Includes a license plate relocation kit with LED light.
• Lightweight Construction: Durable aluminum frame with stainless-steel mounting brackets.

SPECIFICATIONS & COMPATIBILITY

• Vehicle: Ram ProMaster
• Model Years: 2014+
• Roof: Standard Roof & High Roof
• Mounting Location: Driver-side rear door hinges
• Maximum Tire: 245/70/R16 or equivalent
• Main Tubing: 1.75" aluminum round tube
• Main Structure: 3/16" formed aluminum
• Wheel Studs: M14 × 1.5, 68 mm, Grade 10.9, zinc yellow chromate finish
• Locking Hardware: Conical-seat locking lug nuts and key
• Installation: Approximately 1 hour; basic hand tools required
