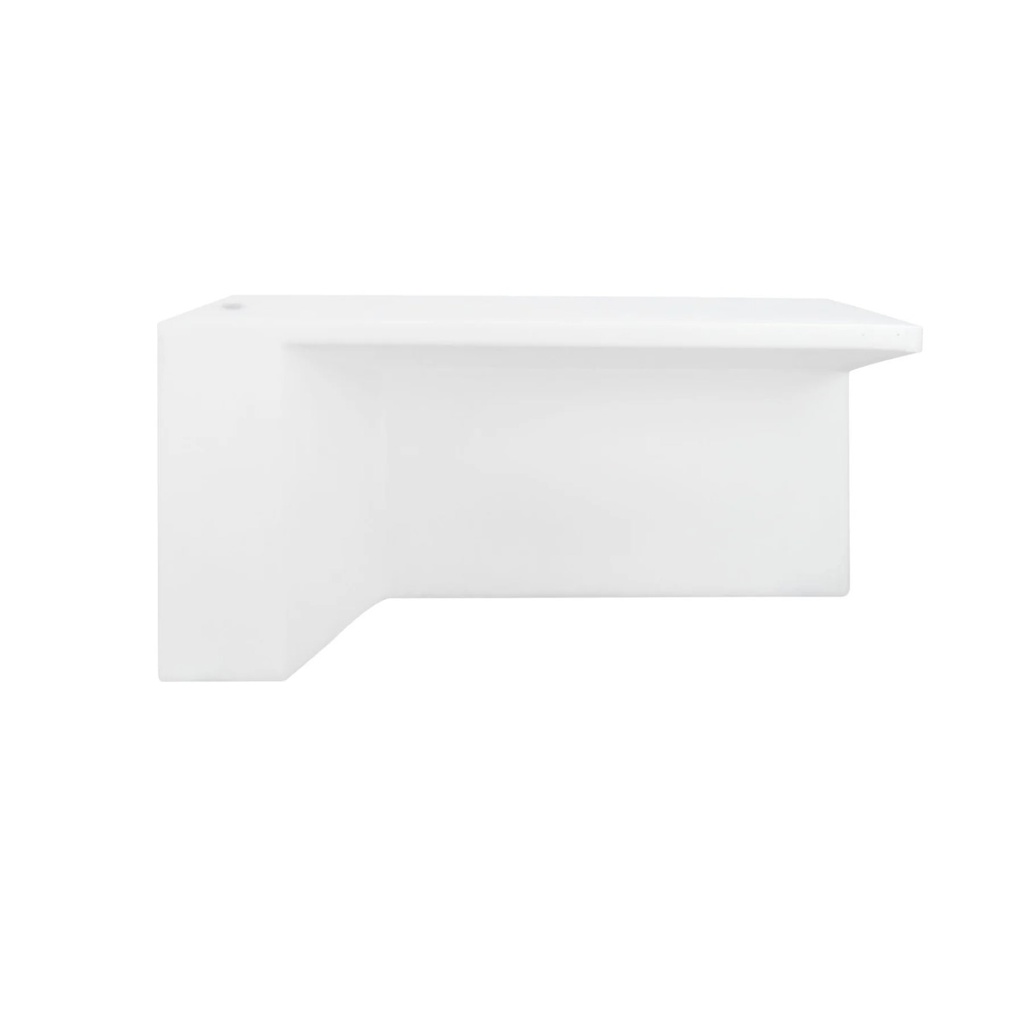

Promaster Wheel Well Water Tank (22 Gallon)

The 22-Gallon Wheel Well Water Tank provides high-capacity freshwater storage while making efficient use of the otherwise difficult-to-use space around the Ram ProMaster wheel well. Its custom-shaped design conforms to the wheel well while maintaining squared top and exterior surfaces for easier cabinetry and interior construction. Made from BPA-free, CSA-approved, food-grade linear low-density polyethylene, this tank is designed for freshwater use and also provides additional sound insulation around the wheel well.

FEATURES

• Space-Saving Design: Uses the wheel-well area to maximize available interior space.
• Custom-Fit Shape: Follows the wheel well while maintaining squared surfaces for easier cabinetry and van conversion.
• Flexible Installation: Can be installed on either the driver or passenger side of the van; both sides can be equipped for increased water capacity.
• Freshwater Storage: Holds 22 US gallons / 83.2 litres and is made from BPA-free, CSA-approved, food-grade polyethylene.
• Weight Distribution: Positions water weight around the rear axle, helping distribute the load within the van.
• Additional Sound Insulation: Helps reduce road noise around the wheel-well area.
• Available Accessories: Optional Fresh Water Fittings Kit, Aluminum Strapping Kit, and KUS S5U Water Level Sender & Gauge Kit are available.

SPECIFICATIONS & COMPATIBILITY

• Vehicle: Ram ProMaster
• Compatible Wheelbases: 136", 159", and 159" Extended
• Installation: Driver or passenger side
• Capacity: 22 US gallons / 83.2 litres
• Dimensions: 42.5" × 13" × 19" (L × W × H)
• Material: Linear low-density polyethylene
• Wall Thickness: Approximately 3/16"
• Ports: 1 × 1½", 2 × 1¼", 1 × ¾", 3 × ½" NPT female ports, including drill-out membrane ports
• Flooring Compatibility: Fits around the wheel well with or without flooring installed
• Compatible Vehicles: Mercedes Sprinter and Ford Transit, all wheelbases
• Fixation Kit: Available separately
