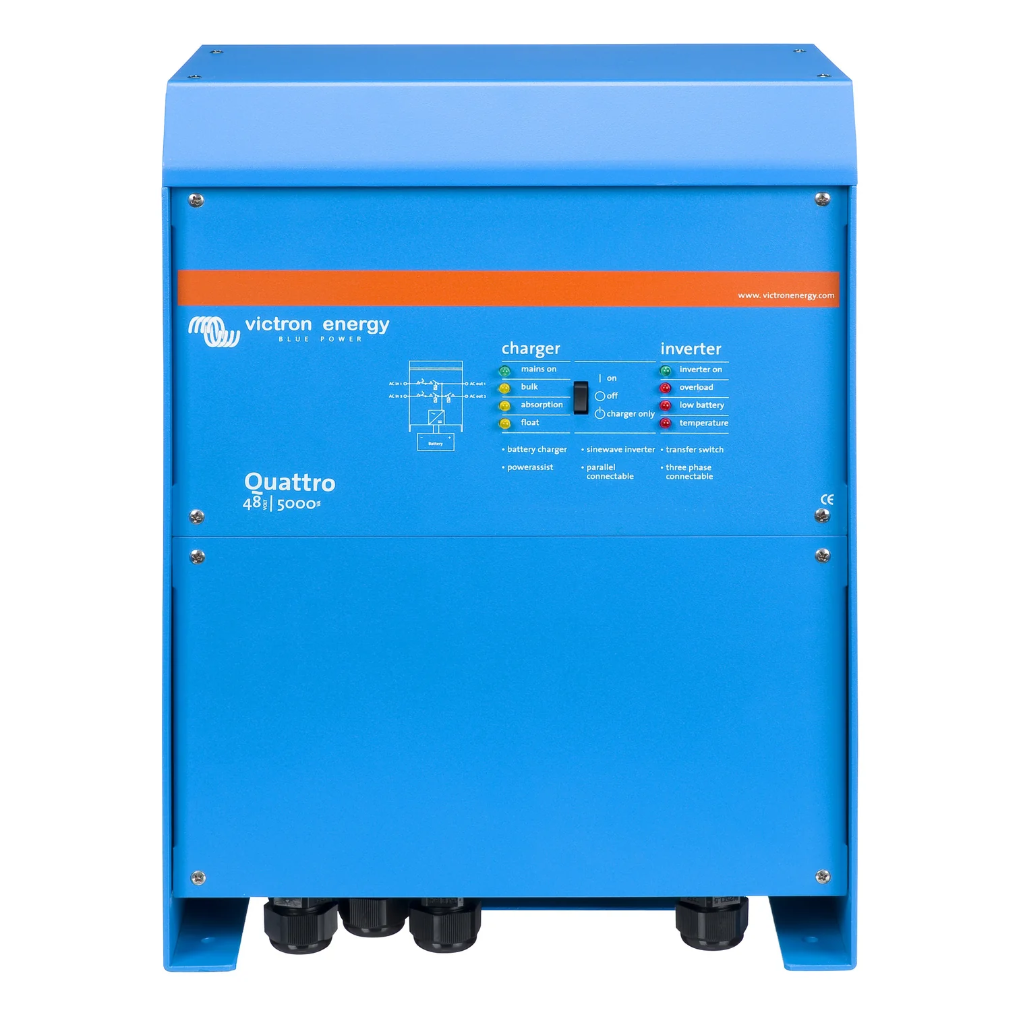

Victron Energy Quattro 48/5000/70-100/100 120V VE.Bus Inverter/Charger | QUA485021100
Similar to the MultiPlus inverter/charger, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
100% original guarantee
Return within 30 days for most orders
Free delivery on most orders
Victron Energy Quattro 48/5000/70-100/100 120V VE.Bus Inverter/Charger | QUA485021100 at a glance
- DC Input Voltage48V
AC Output Voltage120V
Continuous Power4000W at 25°C
Peak Power (3 sec.)10000W
DC Charge Current70A
Number of AC Input2 X 120V- Transfert Switch2 X 100A
- Number of AC Output2 X 120V
Dimensions17.5 X 13.0 X 9.6 in
444 X 328 X 240 mm
Weight66 lbs / 30 kg
Communication Port(s)VE.Bus
Victron Energy Quattro 48/5000/70-100/100 120V VE.Bus Inverter/Charger | QUA485021100
Two AC inputs with integrated transfer switch
The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro will automatically connect to the active source.
Two AC inputs with integrated transfer switch
System configuring
- In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
- Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
- Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
On-site Monitoring and control
Several options are available: Battery Monitor, Multi Control Panel, Color Control GX or other GX devices, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
Remote Monitoring and control
Color Control GX or other GX devices.
Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
Remote configuring
When connected to the Ethernet, systems with a Color Control GX or other GX device can be accessed, and settings can be changed remotely.
