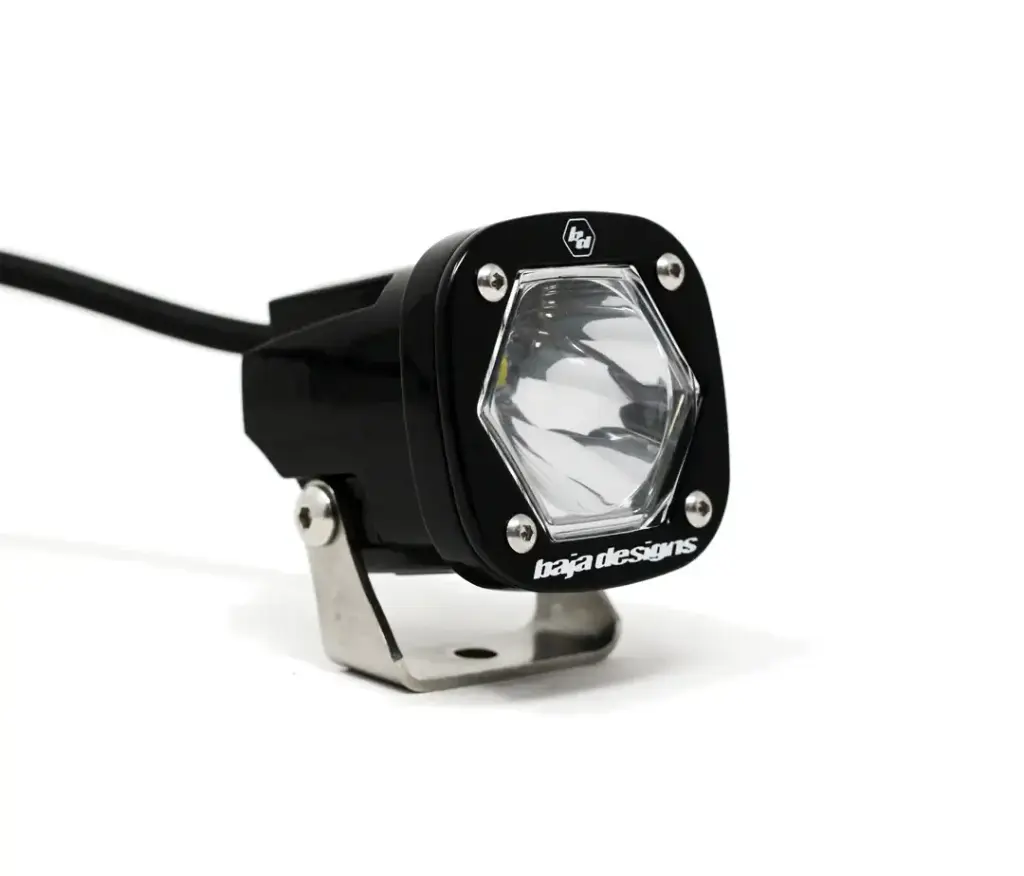

S1 Black LED Auxiliary Light Pod - BAJA DESIGNS

The Baja Designs S1 is a compact yet powerful LED light designed to deliver the performance of a full-size light in a small 2.1-inch cube. Engineered from the ground up, the S1 combines a specialized reflector with high-output LEDs to produce 2,320 lumens, making it perfect for off-road driving, campsite illumination, work areas, or any application that requires versatile lighting.

Its compact size allows for flexible mounting in tight spaces, and it’s engineered for easy installation with a single 2.5-inch hole. This makes the S1 an ideal choice for both professional and recreational users seeking a durable, high-performance lighting solution.

Patent: U.S. Patent No. 11,273,751

Lens Patterns & Applications

• Spot: 9-degree focused beam for long-distance illumination. Ideal for use with additional Wide Cornering or Driving Combo lights.

• Wide Cornering: 42-degree horizontal beam for improved peripheral visibility. Perfect for navigating tight turns, wooded trails, or inclement weather like dust, rain, snow, or fog.

• Work/Scene: Wide, even beam for illuminating large areas. Excellent for construction sites, campsites, pit areas, or outdoor workspaces.

• Trail: Optimized for motorcycles on tight, technical terrain. Enhances vertical and horizontal spreads, providing near- and mid-field visibility for dual-sport or single-track riding.

Lens Color Options

• Clear: Offers natural daylight color (5000K) for reduced eye fatigue and enhanced terrain recognition.

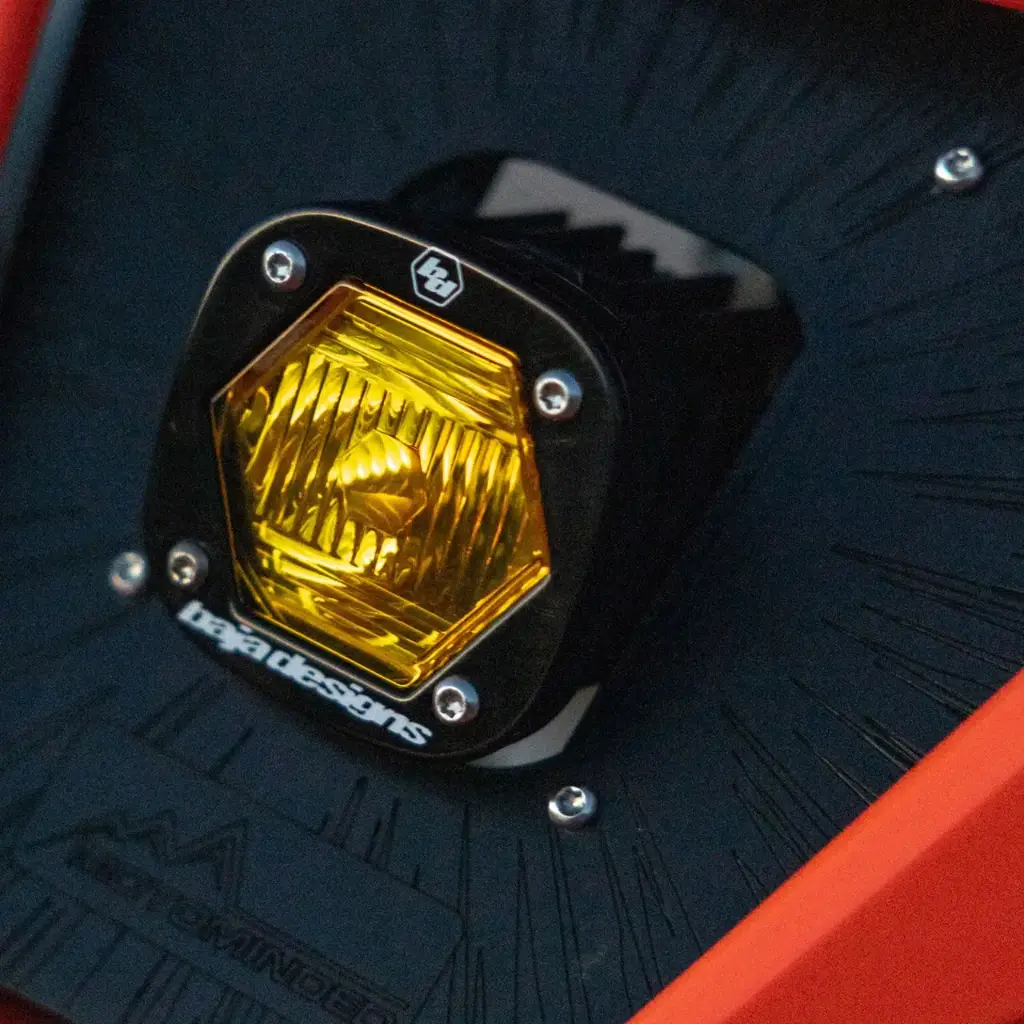

• Baja Amber: Designed for off-road conditions like dust, rain, snow, or fog. Minimizes glare and enhances visibility for safer navigation.

Note: Single lights do not include a wiring harness. Compatible harnesses: 64-0139 (single 2-pin) or 640117 (dual 2-pin).

Key Features & Technologies

• uService® Technology: Replaceable lenses and optics for easy maintenance or customization.

• ClearView® Optics: Direct, precise lighting exactly where needed.

• MoistureBlock®: Waterproof, rainproof, and fully submersible (IP69K rated).

• CopperDrive®: 100% LED-driven for maximum brightness and efficiency.

• 5000K Daylight Output: Reduces driver fatigue and enhances terrain recognition.

• Satisfaction Guarantee: 30-Day Money Back Guarantee.

• Limited Lifetime Warranty: Full protection for long-term use.

Specifications

• Lumens: 2,320

• Wattage/Amperage: 20W / 1.42A

• Beam Pattern: Spot / Wide Cornering / Work-Scene / Trail

• Lighting Quantity: 1

• Lighting Technology: LED, Forward Projecting

• Lens Material: Hardcoated Polycarbonate

• Housing Material: Hard Anodized & Powder-Coated Cast Aluminum

• Housing Color: Black

• Mounting Hardware: Stainless steel, included

• Voltage Range: 9–28V

• Overvoltage Protection: Built-in

• Average Rated Life: 49,930 hours

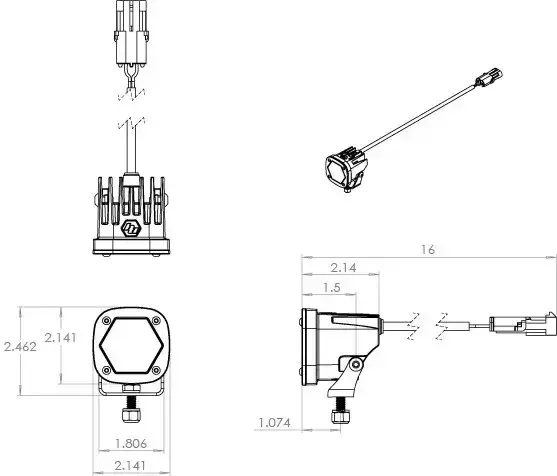

• Dimensions: 2.1" (L) x 2.1" (W) x 2.1" (H)

• Weight: 0.4 lbs

• Product Type: S1 Flush Mount LED Light Pod

Warranty & Guarantee

• 30-Day Money Back Guarantee – Full satisfaction or refund

• Limited Lifetime Warranty – Long-term protection and product reliability
