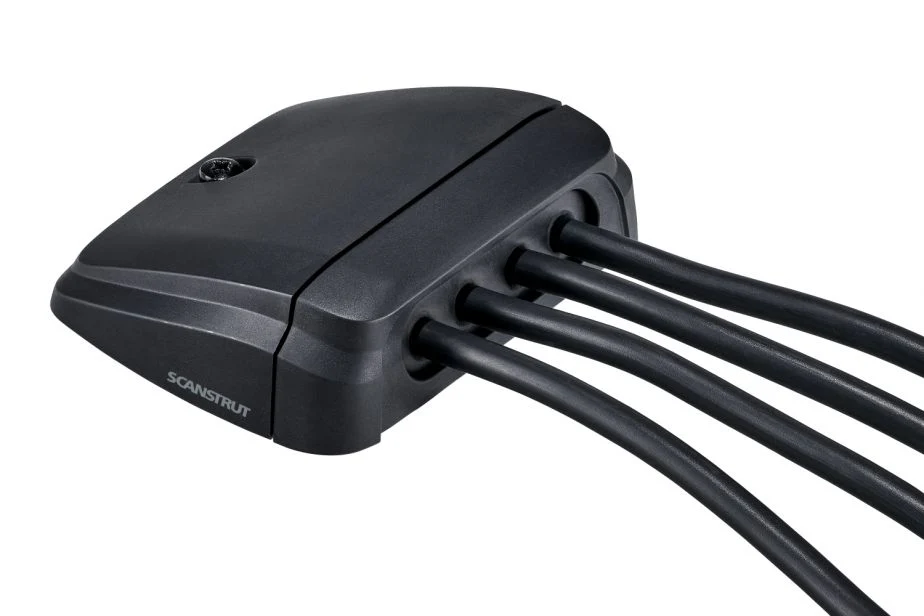

The Scanstrut Horizontal Multi-Cable Seal provides a clean, low-profile and waterproof solution for routing multiple cables through a single mounting point. Designed for installations involving solar panels, lighting and electronic equipment, it accommodates one to four cables of varying sizes up to 0.59 inches (15 mm) in diameter.
FEATURES
Accommodates one to four cables through a single seal
Suitable for cables of varying diameters, up to 0.59 inches (15 mm)
IP68 waterproof protection
Horizontal cable-entry design with a low-profile construction
Self-drilling rubber sealing insert allows custom cable openings
Marine-grade glass-filled nylon construction
UV-stable and impact-resistant materials
Captive nuts allow easy assembly and repeat installations
No messy sealants required
Suitable for wood, metal and GRP mounting surfaces
Backed by a 3-year manufacturer warranty
SPECIFICATIONS
Manufacturer Part Number: DS-H-MULTI-BLK
Material: Glass-filled nylon
Cable Entry: Horizontal
Cable Capacity: 1–4 cables
Maximum Cable Diameter: 0.59 inches (15 mm)
Waterproof Rating: IP68
Dimensions (L × W × H): 3.84 × 4.51 × 1.40 inches (97.6 × 114.8 × 35.8 mm)
Warranty: 3 years
