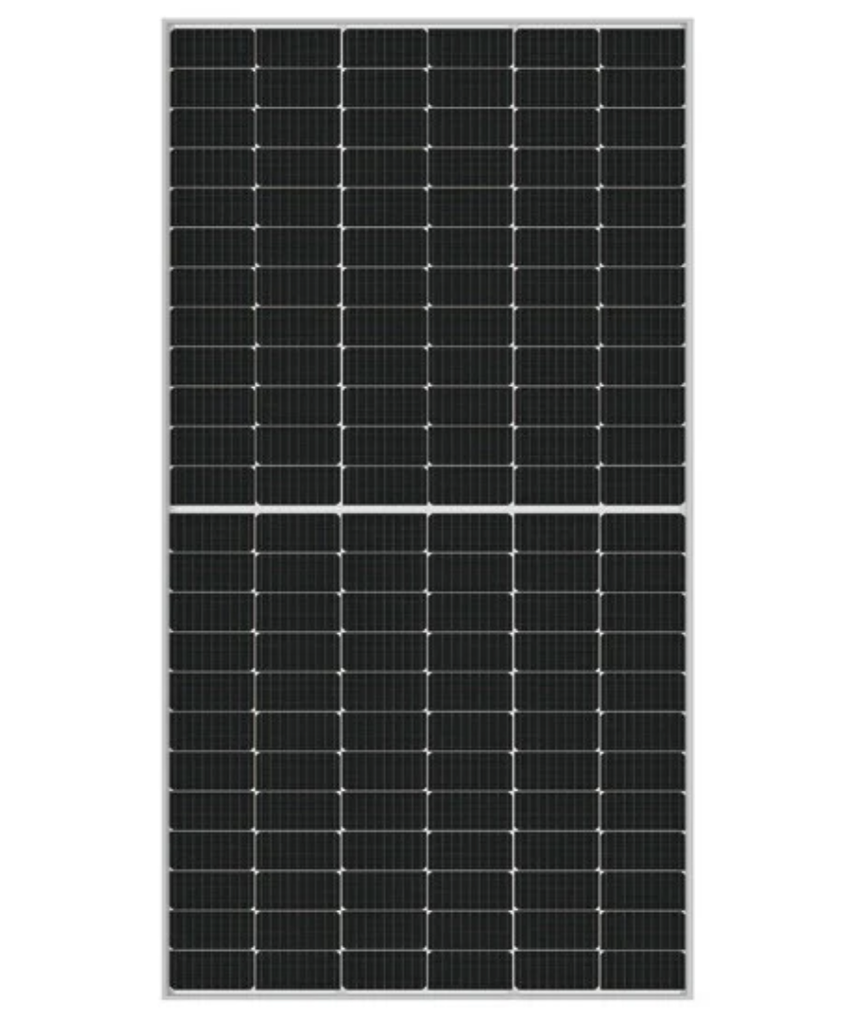

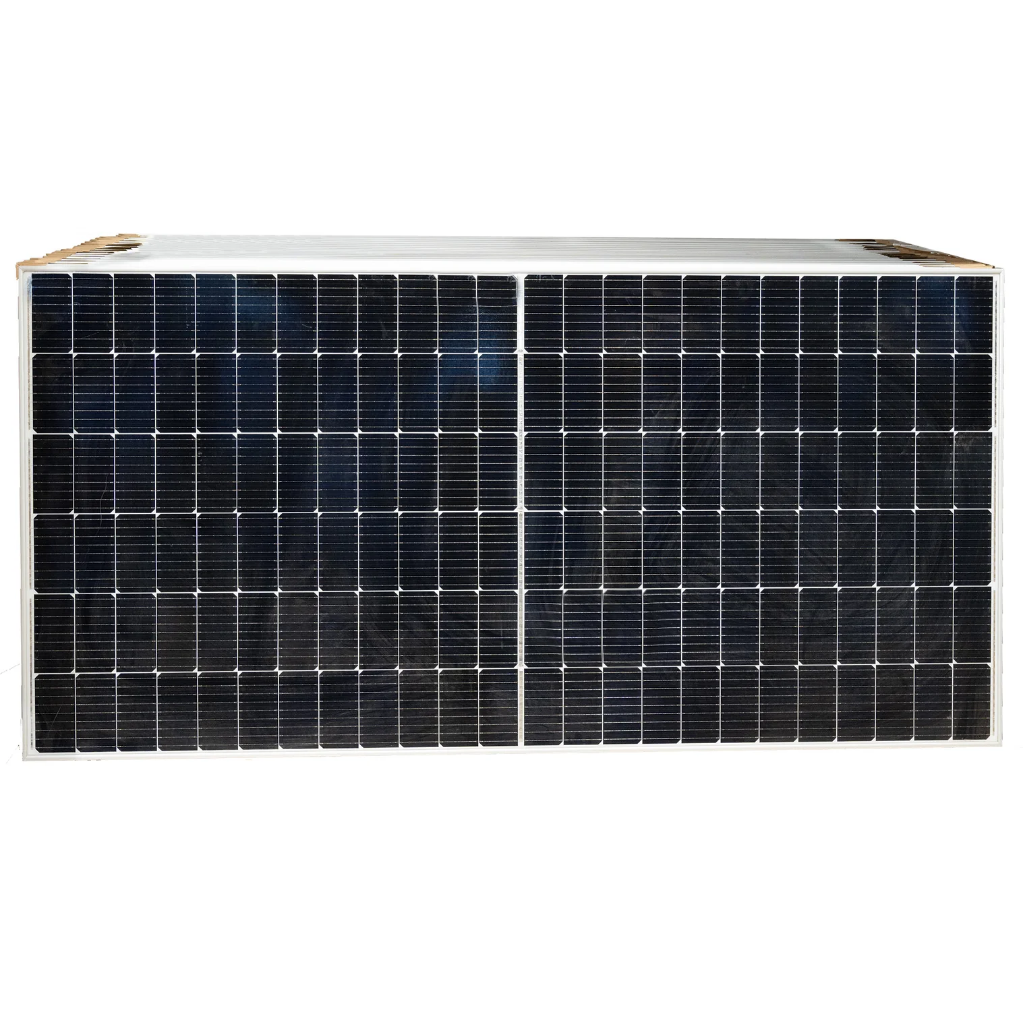

Solar pannel - (Pallet of 31 units) Longi 540W Monocrystalline and Bifacial Solar Panel | LR5-72HBD-540M

Solar pannel - (Pallet of 31 units) Longi 540W Monocrystalline and Bifacial Solar Panel | LR5-72HBD-540M

Technical information

Data Sheet

Longi 540W Monocrystalline and Bifacial Solar Panel (Pallet of 31 units) | LR5-72HBD-540M at a glance

• Max Power

  540W

• TechnologyMonocrystalline - Bifacial
• Dimensions88.8 X 44.6 X 1.38 in
  2256 X 1133 X 35 mm
• Weight71.2 lbs / 32.3 kg
• Connector TypeMC4
• Open Circuit Voltage49.5 V
• Short Circuit Current13.85 A
• Warranty On Material12 years for material and processing
• Warranty On Production30 years - 1st year power degradation no more than 2%
  Subsequent annual power degradation no more than 0.45%

Longi 540W Monocrystalline and Bifacial Solar Panel (Pallet of 31 units) | LR5-72HBD-540

The Longi LR5-72HBD-540M solar panel is designed for optimal performance, offering 540W of power and a high efficiency of 21.1%.

With its bifacial technology, it captures light from both sides to increase energy yield, making it an excellent choice for rooftop or ground-mounted installations.

Equipped with monocrystalline PERC cells and a robust tempered glass structure, this panel ensures outstanding durability and resistance to harsh weather conditions.

It operates efficiently even in low-light environments, providing a stable and reliable energy output throughout the year.

Technical Specifications:

Nominal Power: 540W

• Cell Type: Monocrystalline PERC
• Technology: Bifacial half-cell
• Efficiency: 21.1%
• Open Circuit Voltage (Voc): 49.50V
• Short Circuit Current (Isc): 13.85A
• Voltage at Maximum Power (Vmp): 41.65V
• Current at Maximum Power (Imp): 12.97A
• Operating Temperature: -40°C to +85°C
• Dimensions: 2256 × 1133 × 35 mm
• Weight: 27.2 kg
• Power Tolerance: 0~+5W
• Weather & Hail Resistance: IEC 61215 and IEC 61730 certified
• Product Warranty: 12 years
• Performance Warranty: 25 years (80% of initial power output)

  With its optimized design to minimize power losses and compatibility with various inverters, the Longi LR5-72HBD-540M is the perfect choice for those seeking a high-performance, durable, and cost-effective solar solution.
