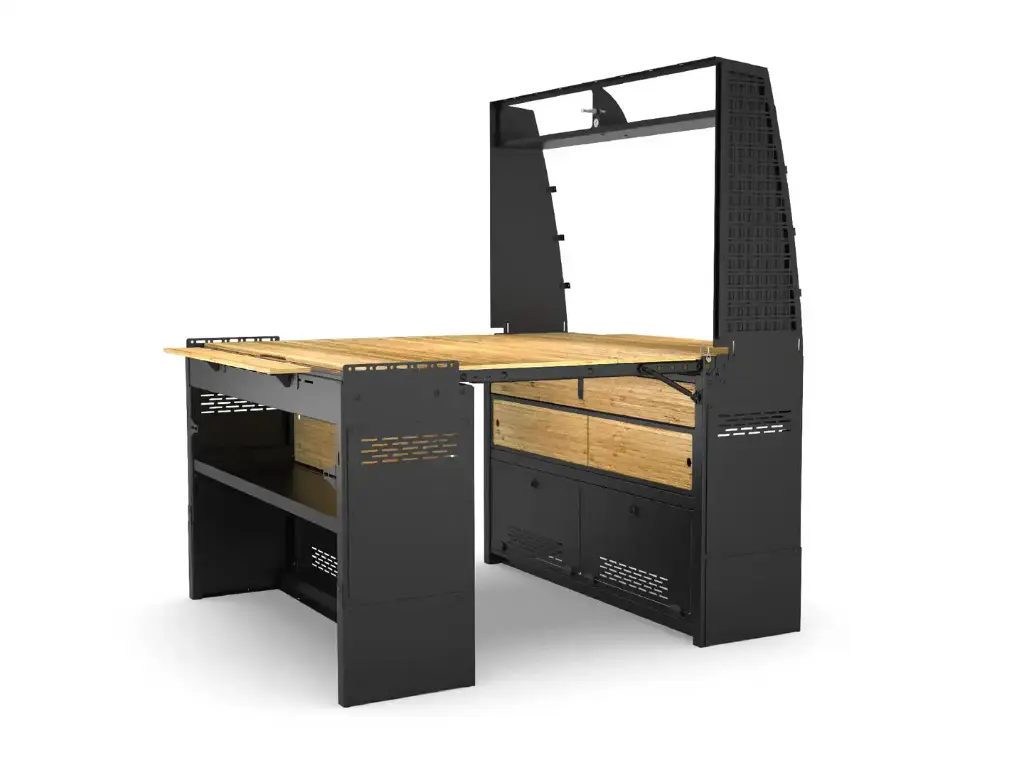

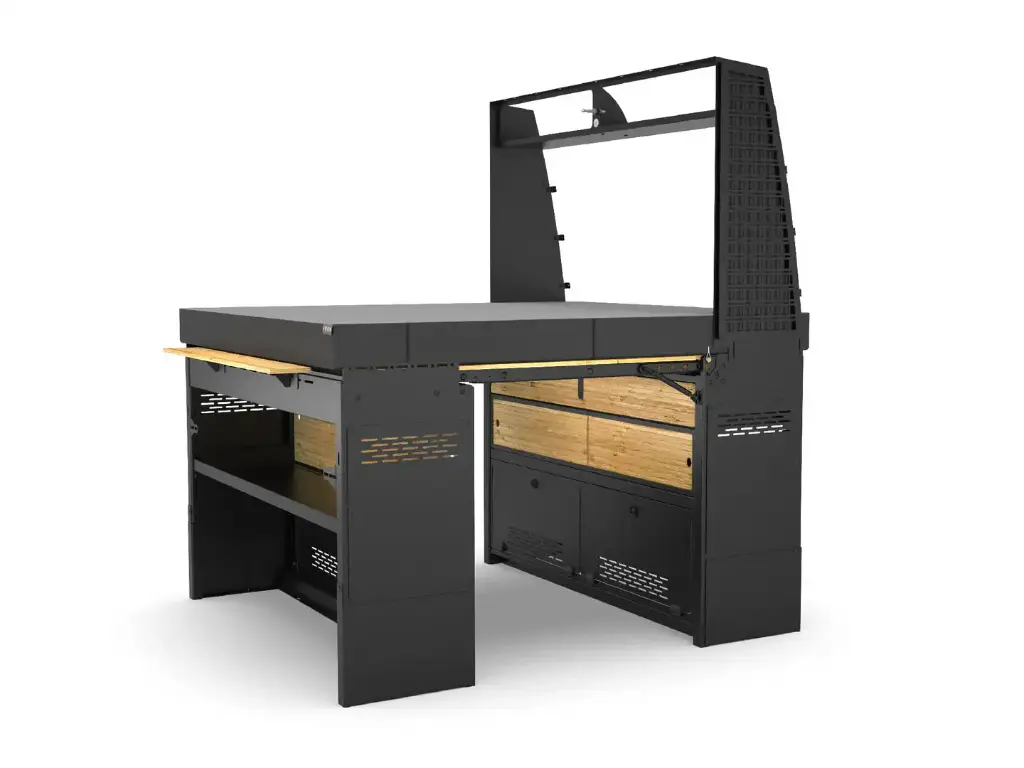

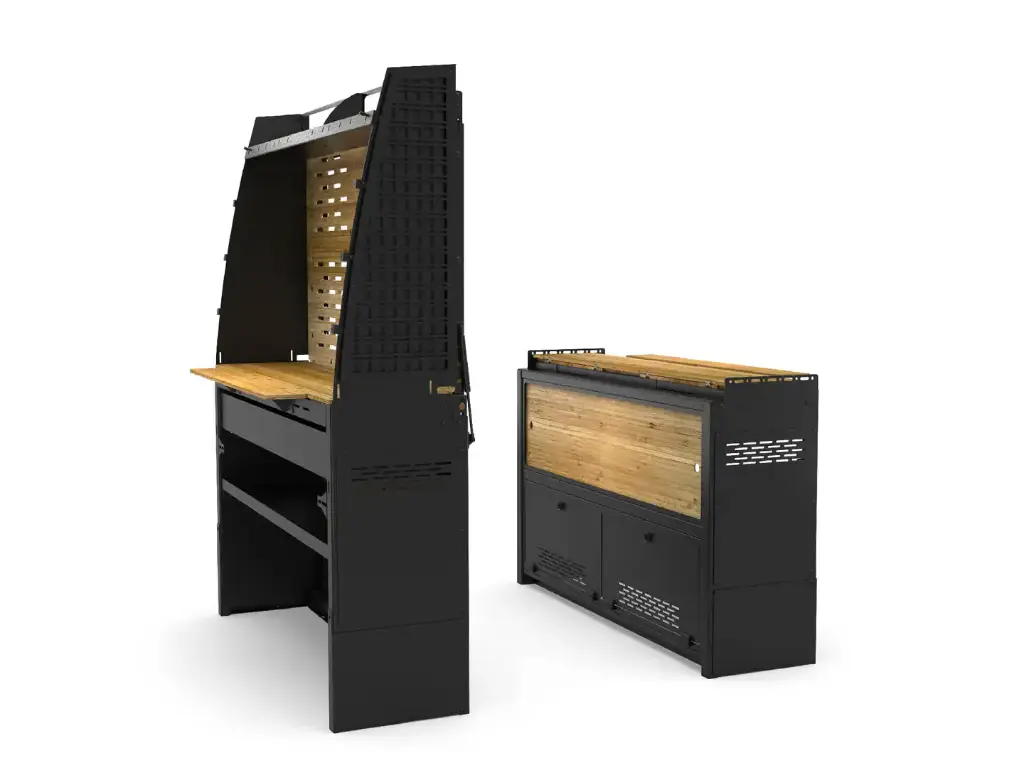

Sprinter Van Murphy Bed System

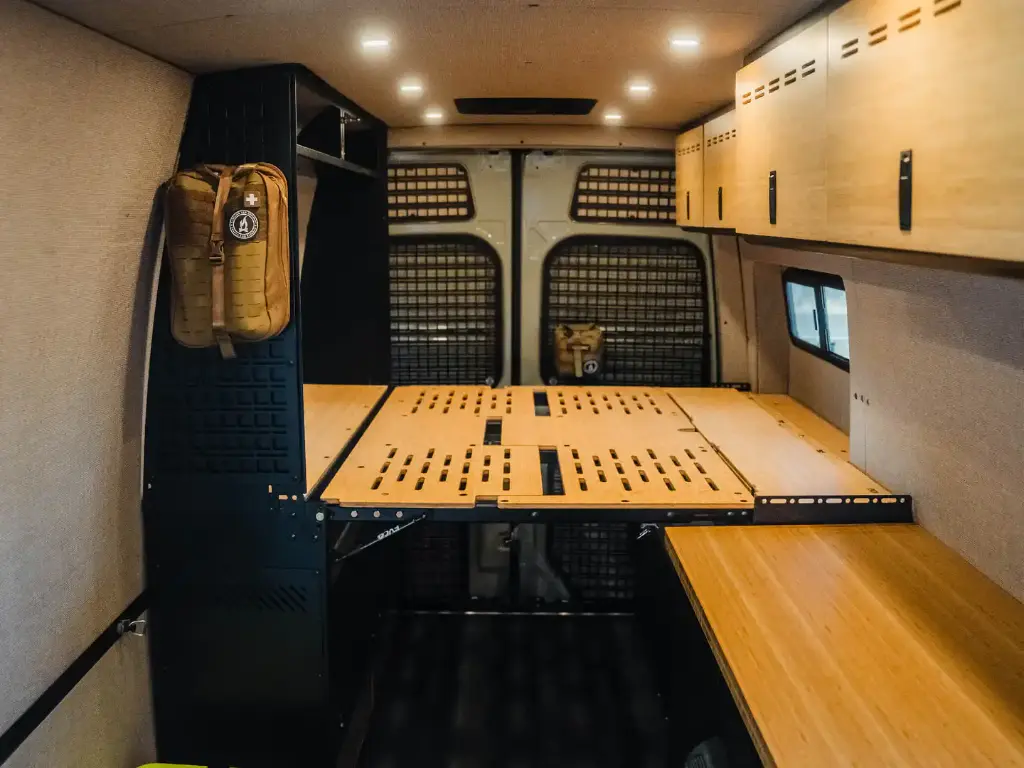

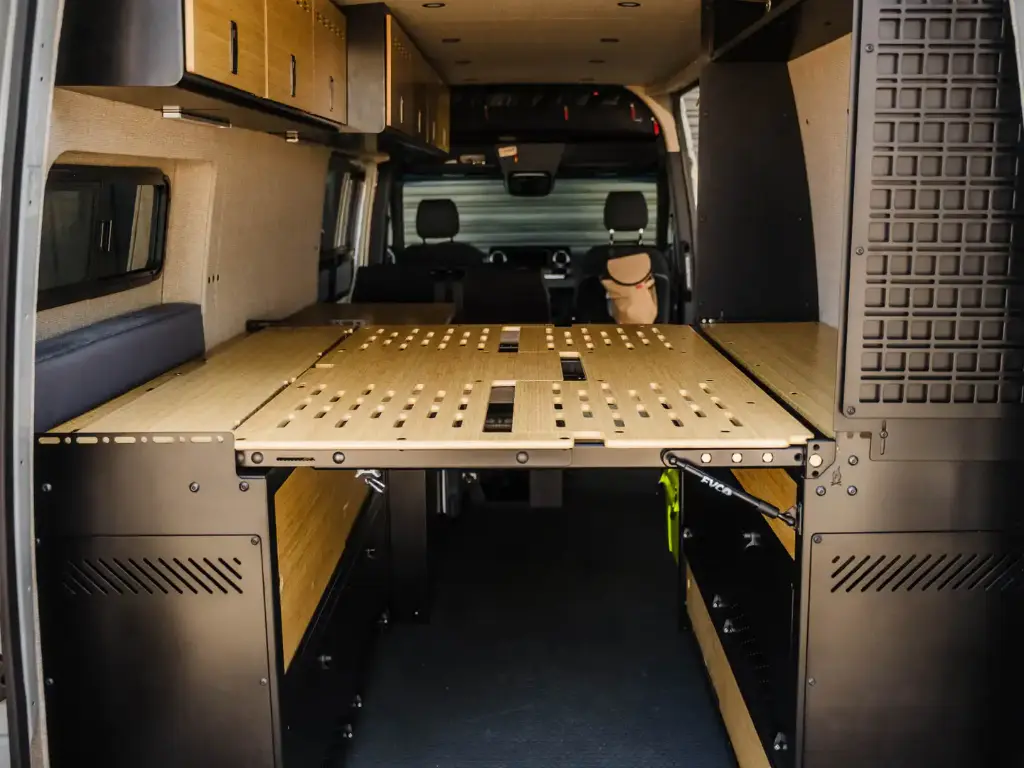

Transform your Sprinter van into a versatile living space with the Sprinter Van Murphy Bed System. Designed to maximize every inch of your interior, this innovative bed system combines a comfortable sleeping area, spacious storage, countertop workspace, and dining table into one premium solution.

Constructed from lightweight powder-coated aluminum and carbonized bamboo, the Murphy Bed System offers exceptional durability while reducing weight. Gas struts make raising and lowering the bed effortless, while integrated storage compartments are large enough to accommodate electrical systems or 24-gallon wheel-well water tanks. Whether you're traveling full-time or heading out for weekend adventures, this system provides the flexibility your van build needs.

Features

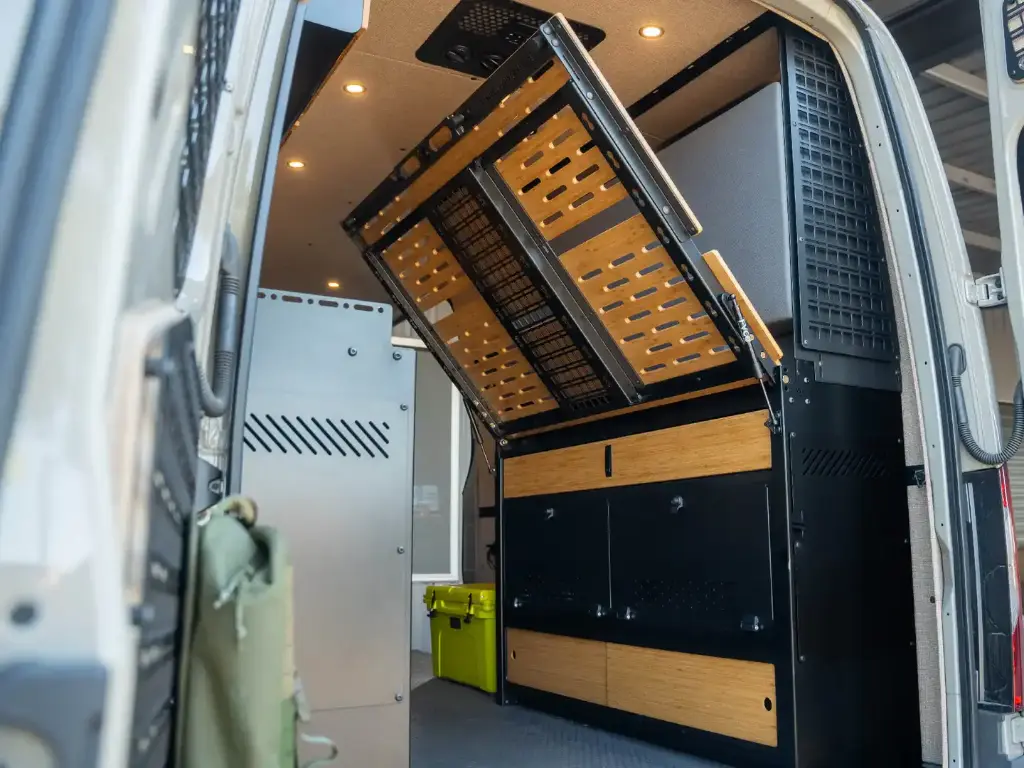

• Space-saving Murphy bed with gas strut-assisted operation
• Converts from sleeping area to open living space in seconds

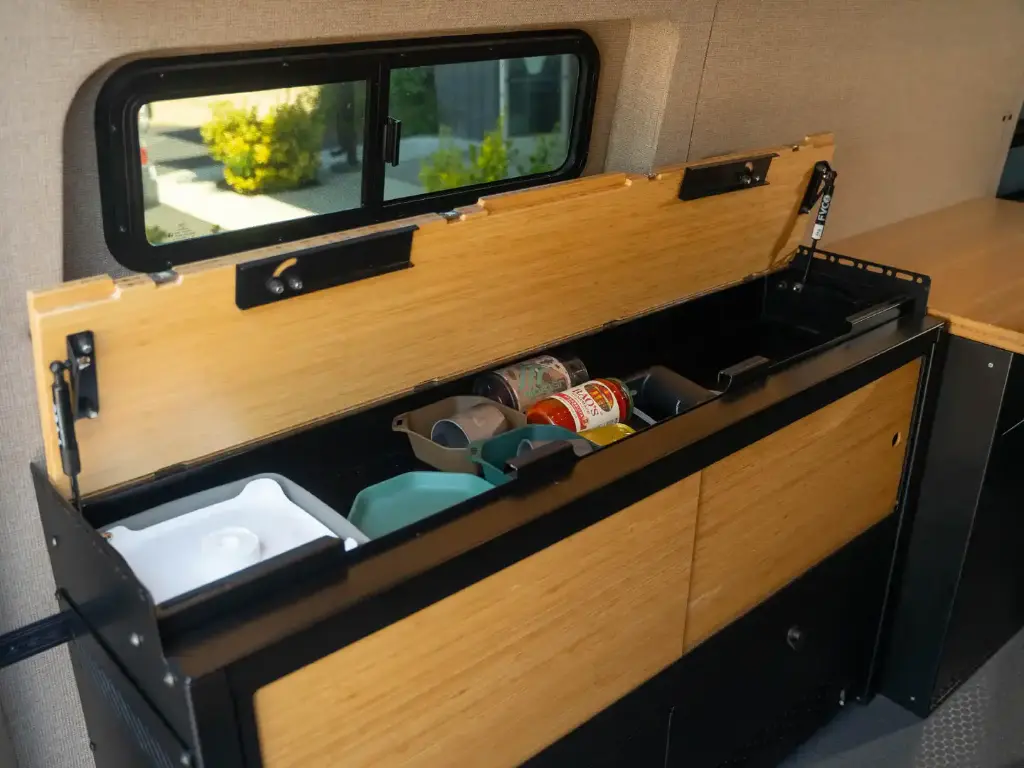

• Large storage compartments for electrical systems or 24-gallon water tanks
• Expandable countertop doubles as a standing desk, dining table, or workstation
• Built-in bedside overhead cabinet with open storage

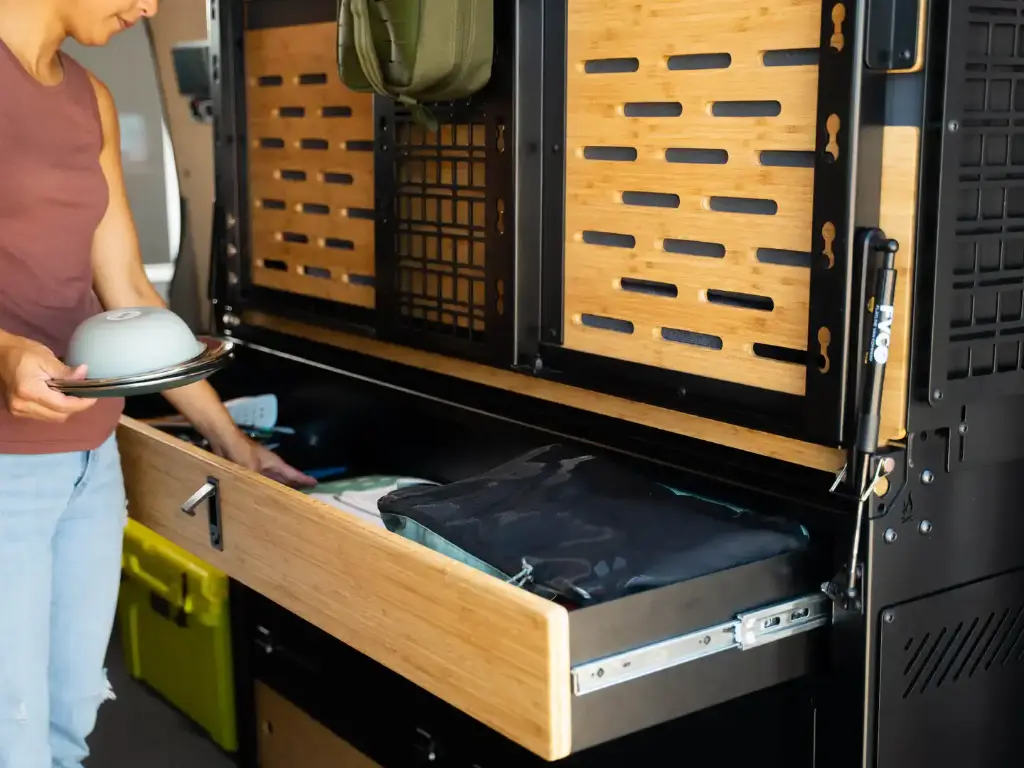

• Heavy-duty drawer with soft-close slides and push-lock latch

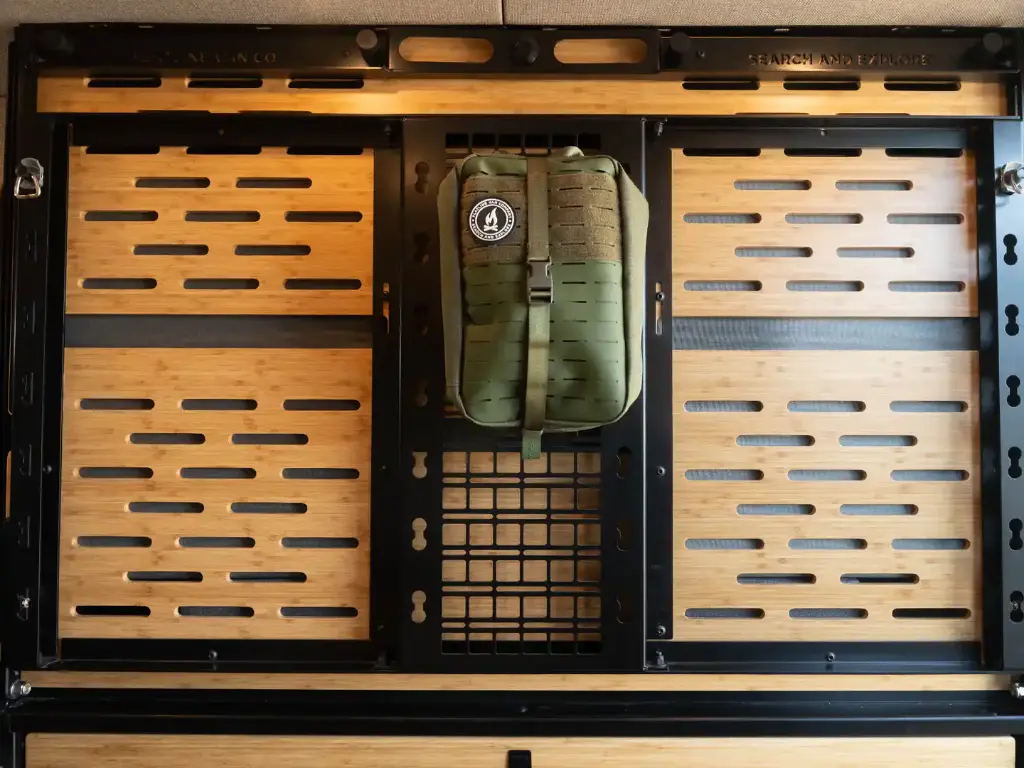

• Integrated MOLLE panel and L-Track cutouts on the underside of the bed
• Additional bedside MOLLE panels included (optional installation)
• Adjustable cabinet spacing from 33" to 36"
• Adjustable side panels to accommodate different flooring heights
• Cabinets can be installed on either side of the van
• Lightweight powder-coated aluminum construction with carbonized bamboo accents

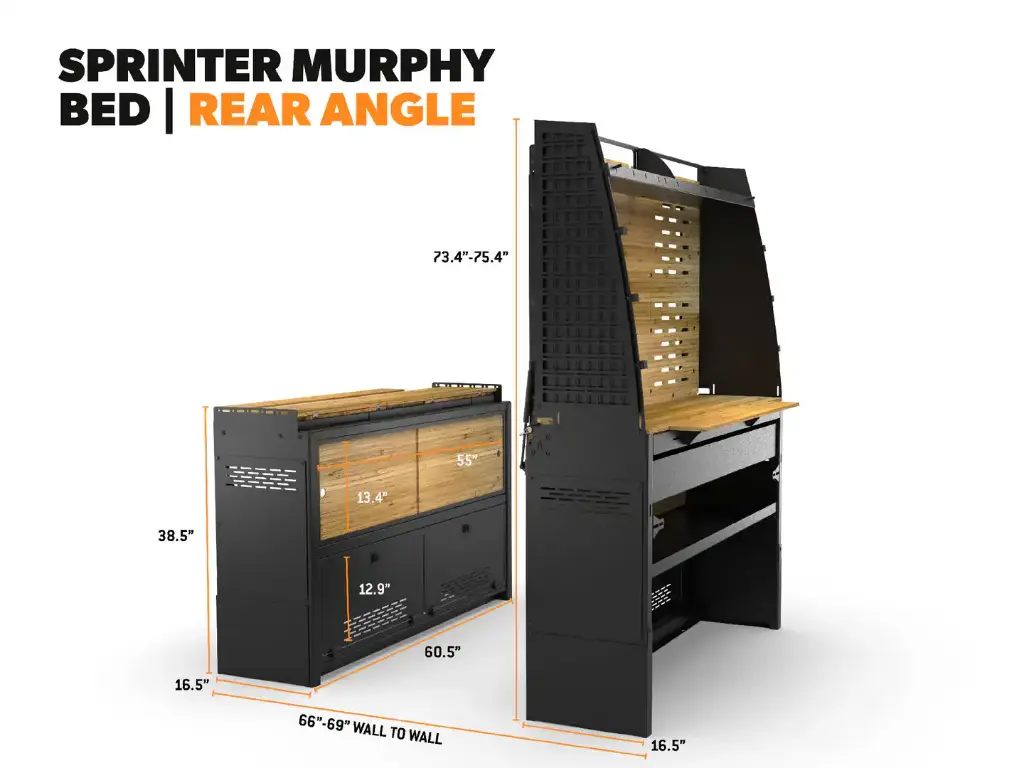

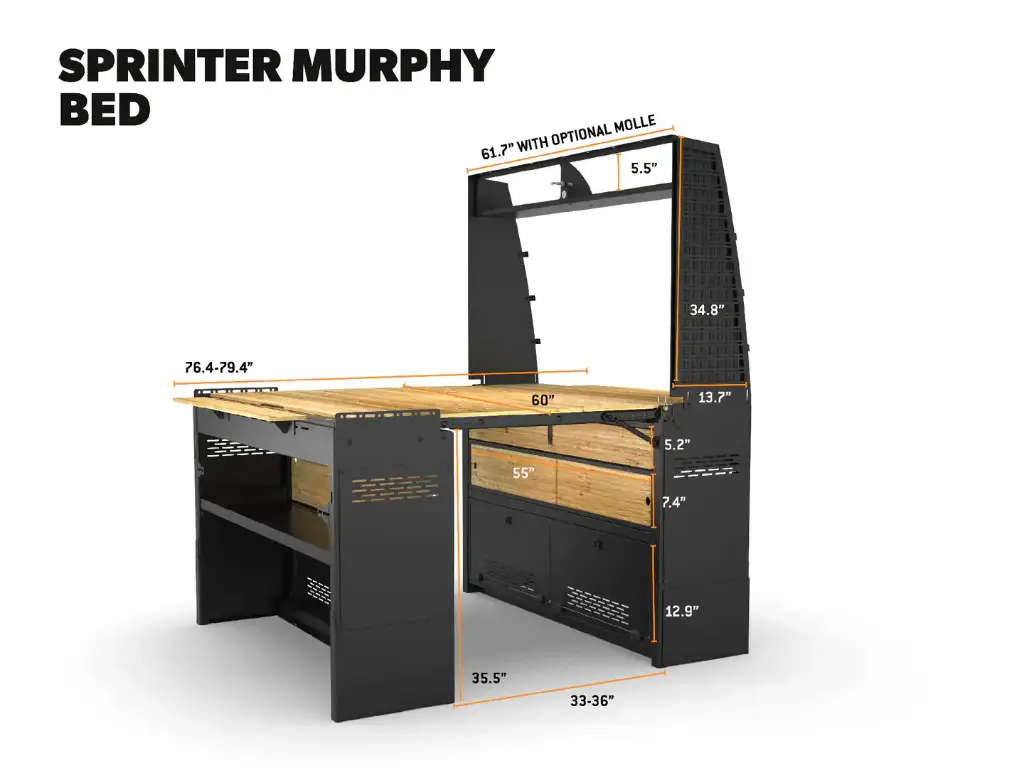

Specifications

• Bed Size with Flares: 60" W × 76.4"–79.4" L
• Bed Size without Flares: 60" W × 66"–69" L
• Layout: East-to-West sleeping orientation
• Clearance Under Bed: 35.5"
• Cabinet Spacing: Adjustable from 33" to 36"
• Total Weight: 255 lbs

Compatibility

• Mercedes-Benz Sprinter High Roof Vans (2007+)
• Compatible with vans equipped with flares for maximum bed length
• Not compatible with dually models
