Sprinter Carbon Fiber Roof-Top Tent System

Ultra-light carbon fiber rooftop sleeping system with integrated rack and interior access

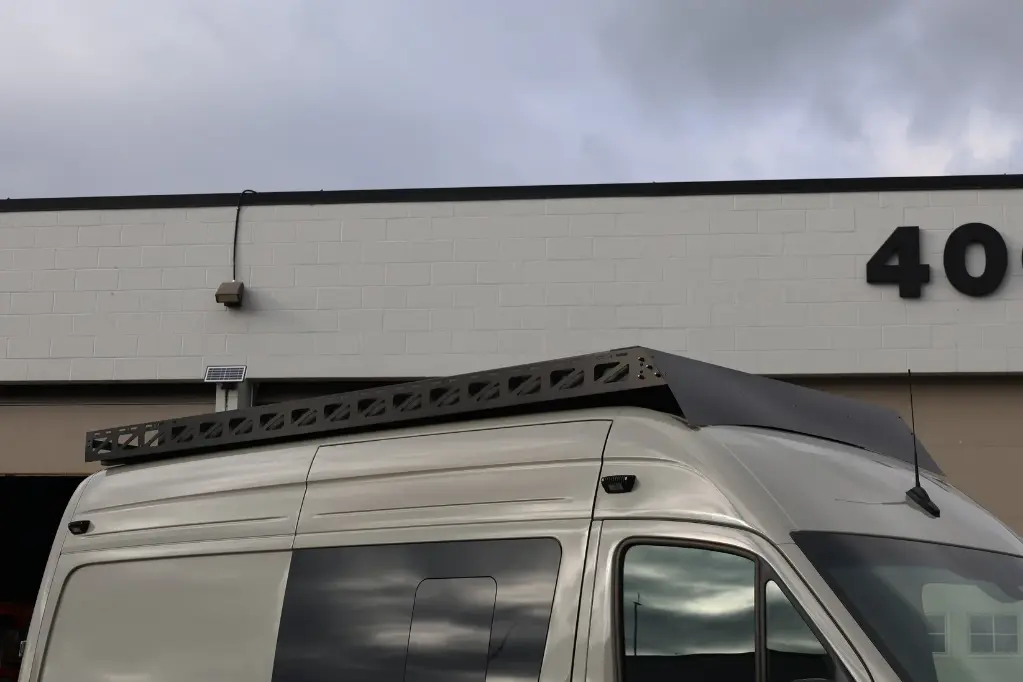

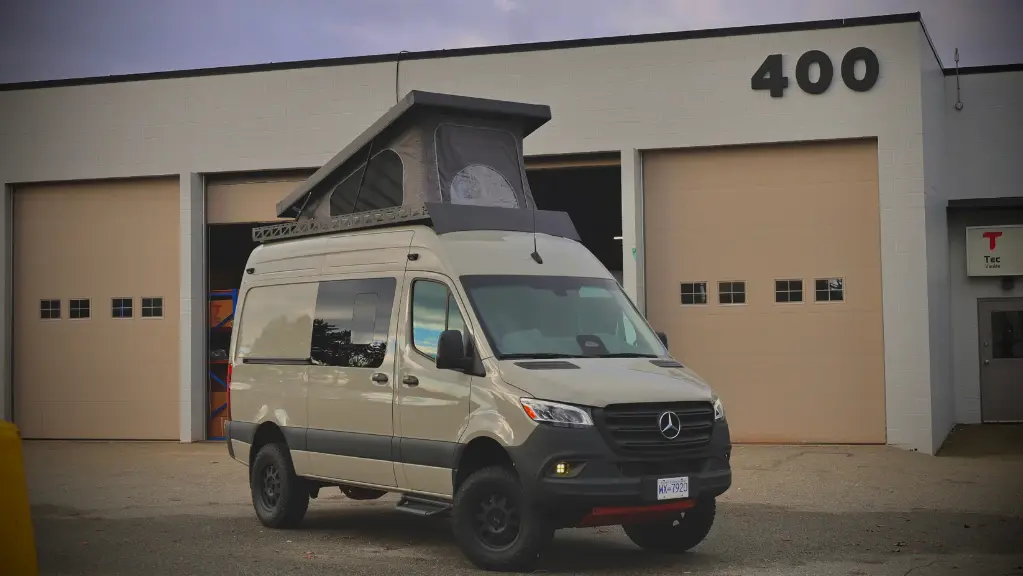

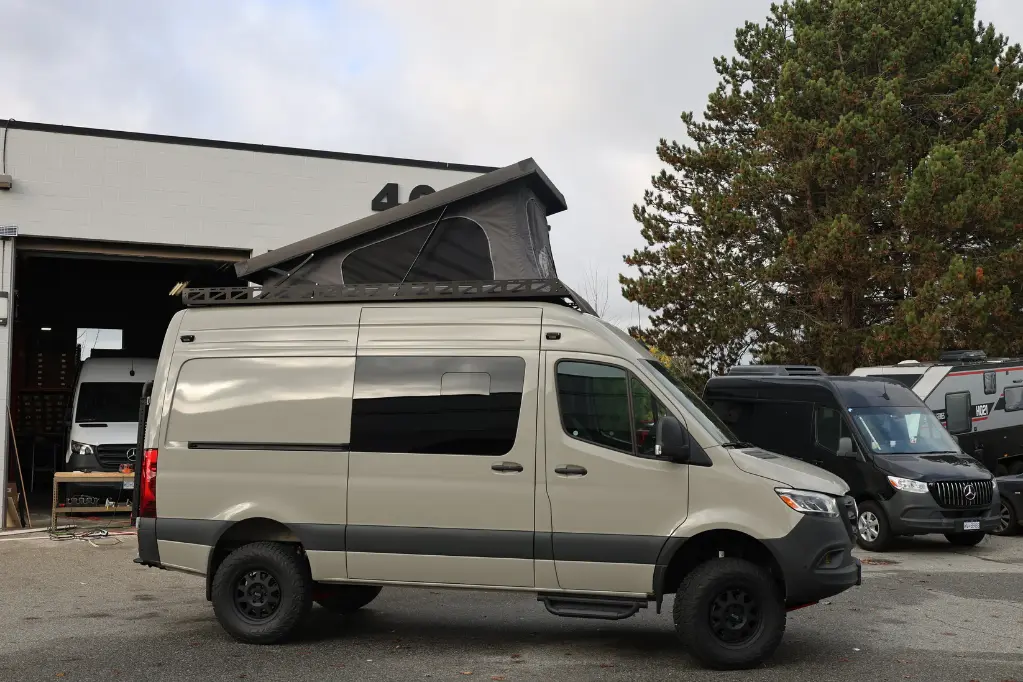

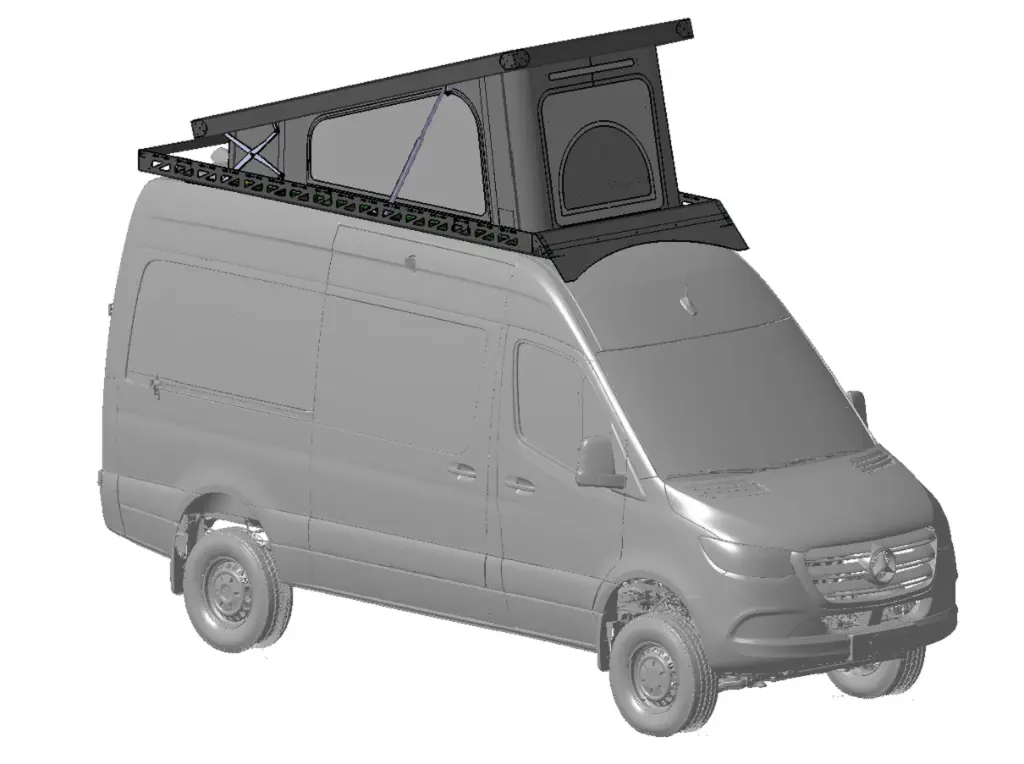

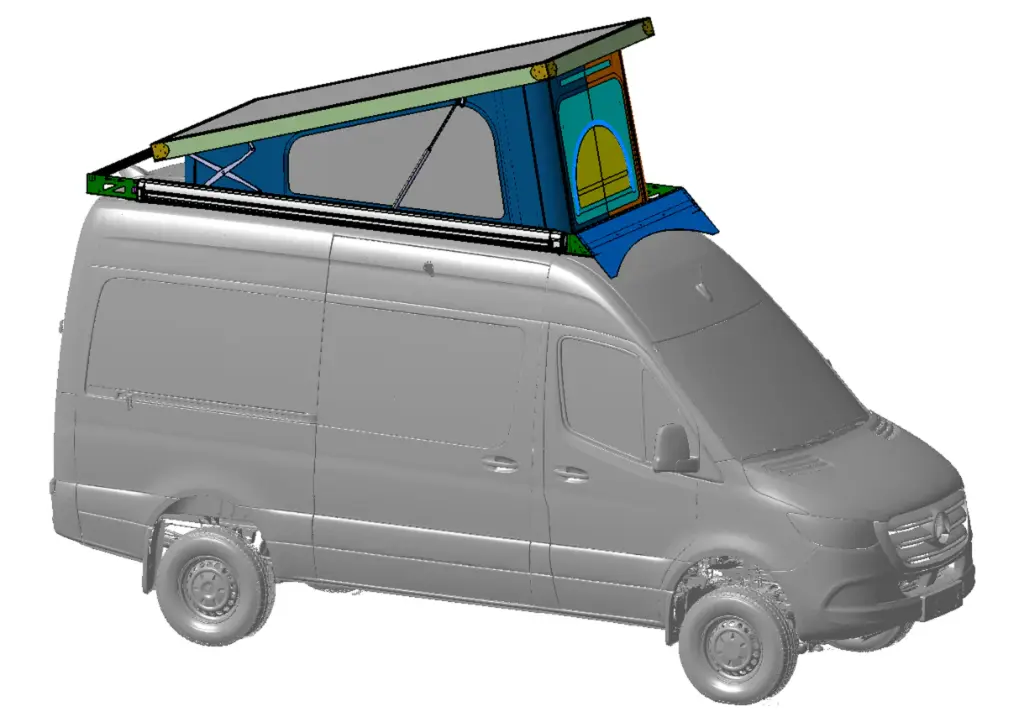

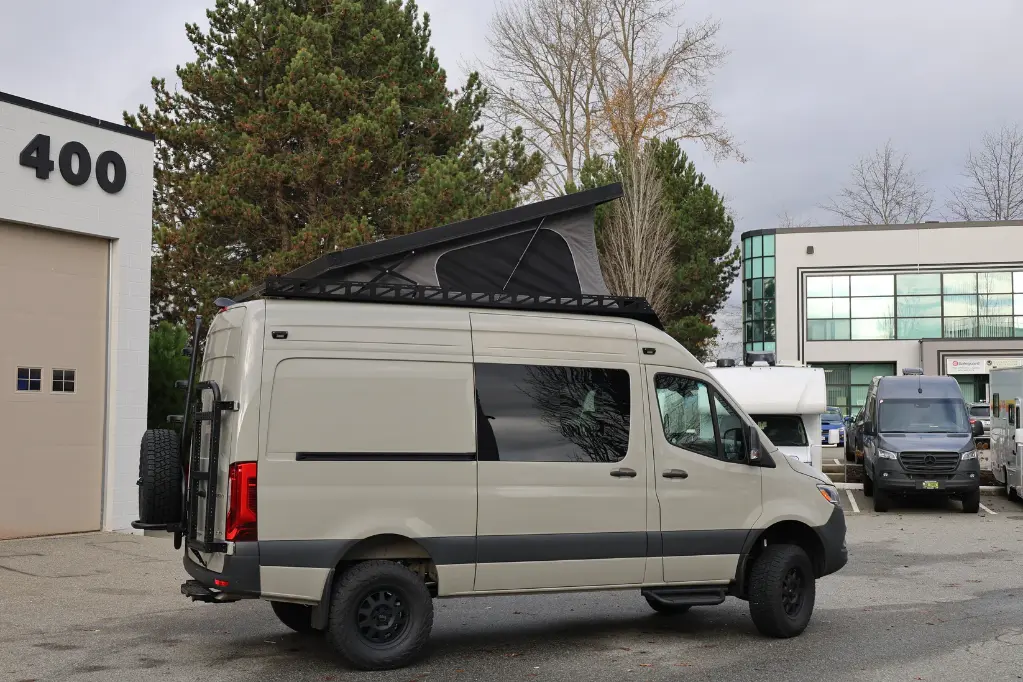

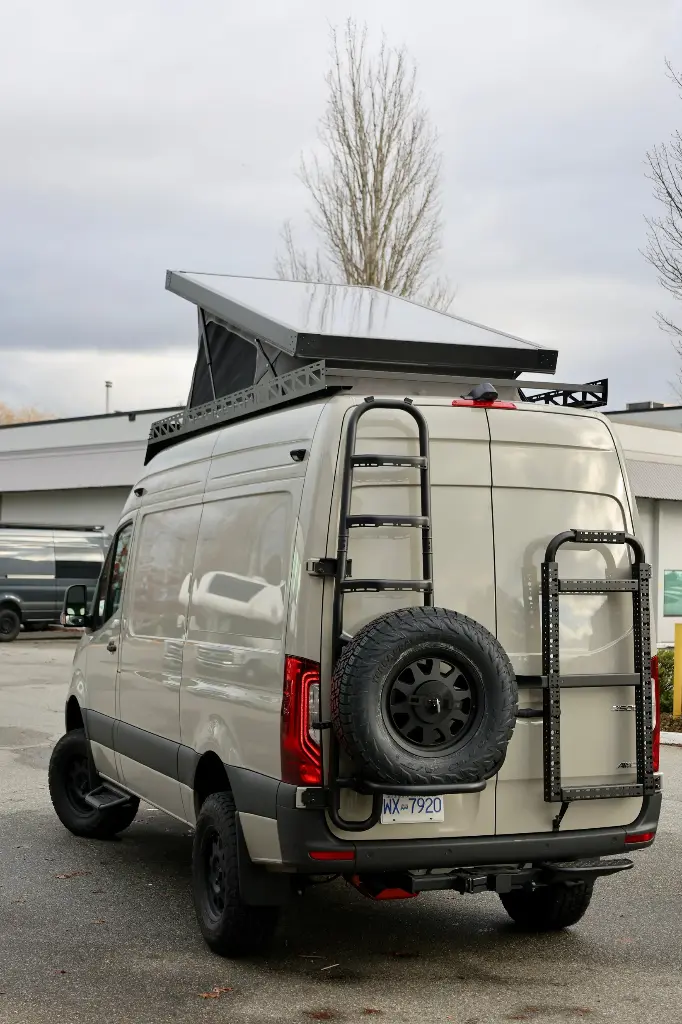

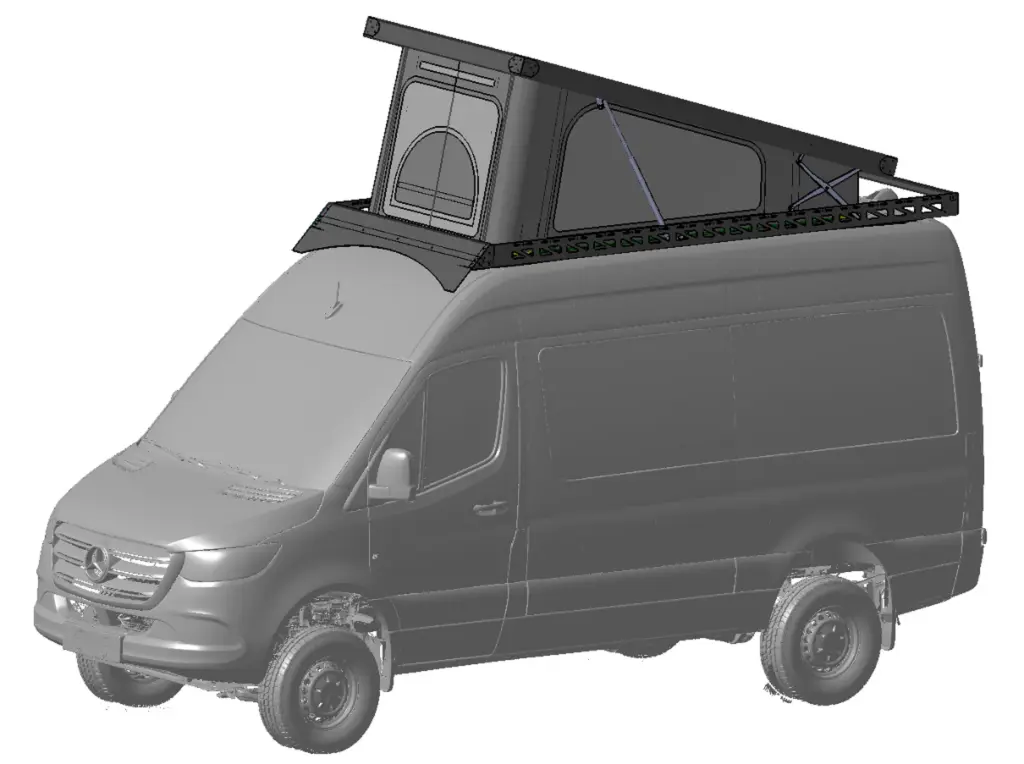

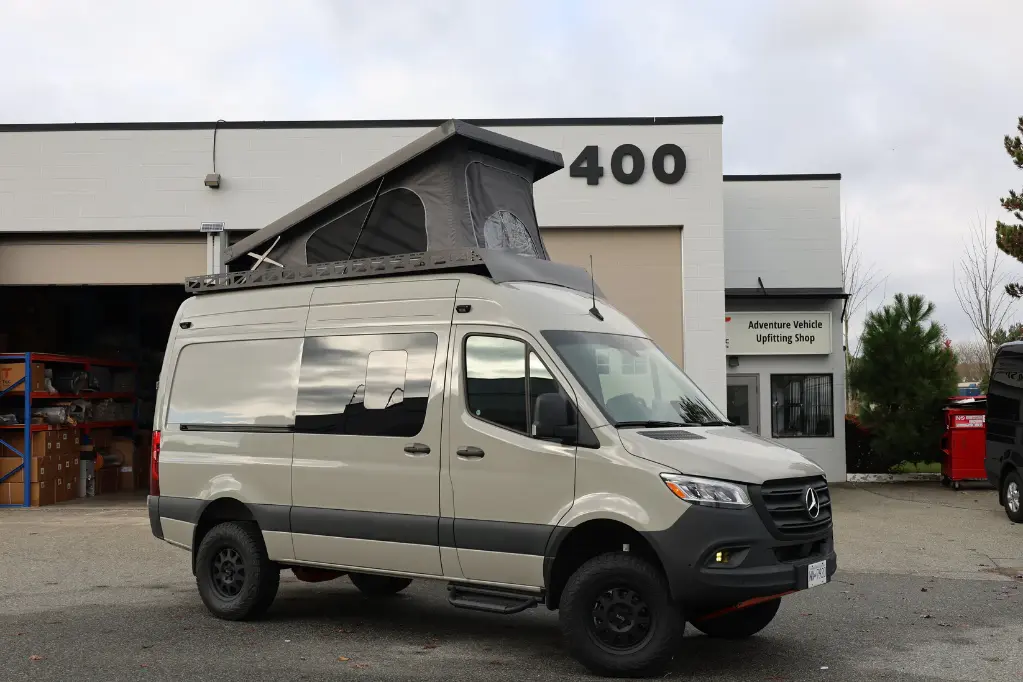

The Sprinter Carbon Fiber Roof-Top Tent System is a fully integrated rooftop sleeping and roof rack solution engineered exclusively for Mercedes Sprinter vans. Built using aerospace-grade carbon fiber, it combines a rooftop tent and structural roof rack into a single low-profile system designed for extreme weight reduction, aerodynamic efficiency, and year-round usability.

At approximately 150 lbs total system weight (including rack components), it is designed to minimize roof load while providing a fully insulated sleeping environment with interior-only access for added convenience and stealth operation.

FEATURES

• Ultra-light carbon fiber composite construction for maximum strength and minimal weight
• Integrated system combining roof rack + rooftop tent in one unit
• Total system weight approximately 150 lbs (depending on configuration)
• Interior-only access design for added security and convenience

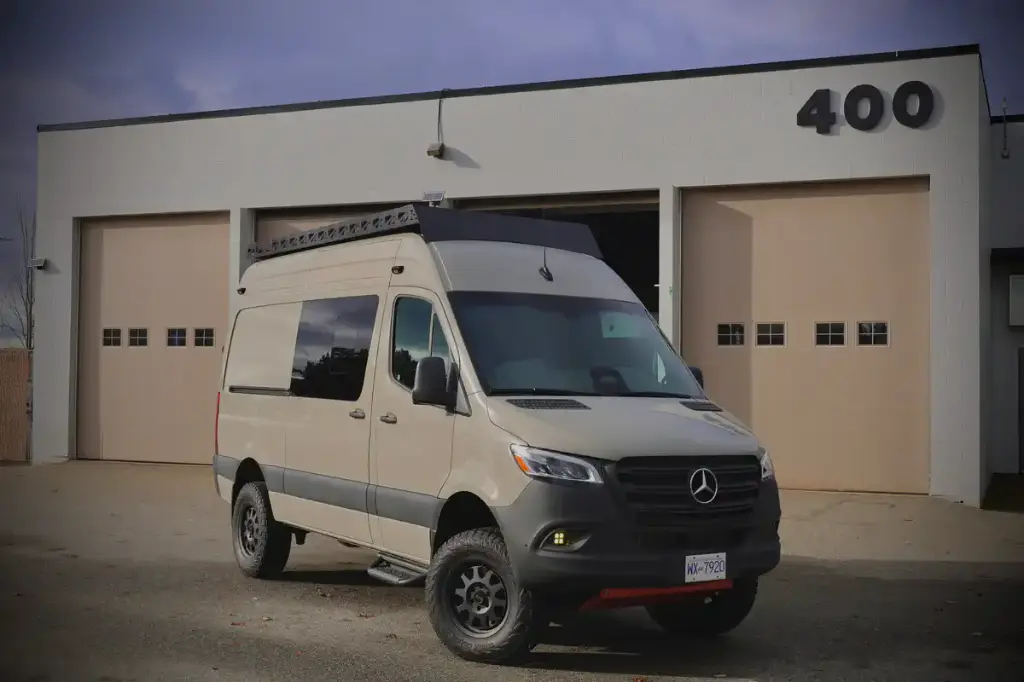

• Low-profile aerodynamic shell reduces wind resistance and fuel consumption
• Fully integrated roof structure eliminates external straps and exposed hardware
• Compatible with solar panels, roof fans, and rooftop accessories
• Built-in LED lighting system for interior illumination
• Integrated USB and USB-C charging ports
• Includes supportive gel and memory foam mattress system
• Removable insulation layer for 3–4 season use

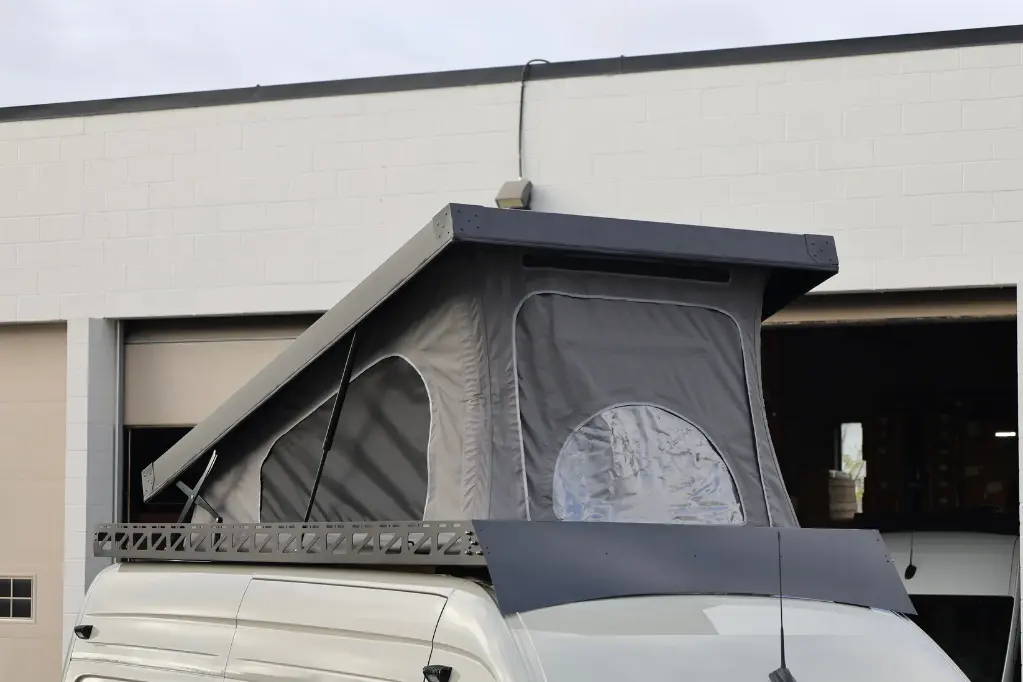

• Mold- and moisture-resistant fabric walls reduce condensation buildup

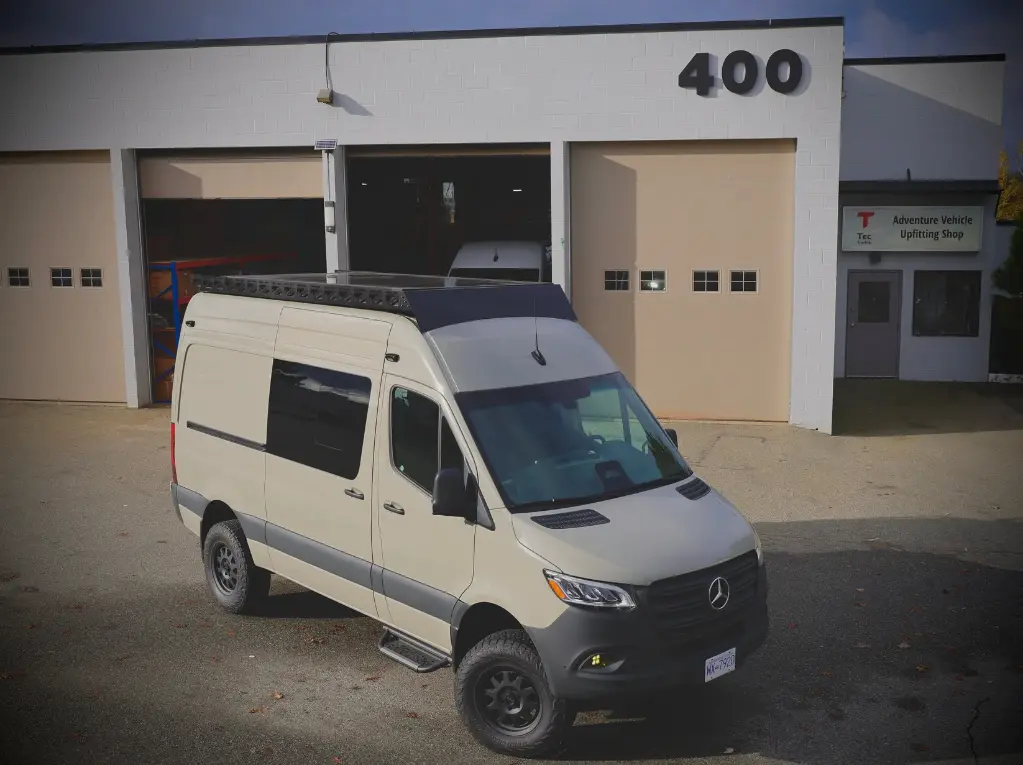

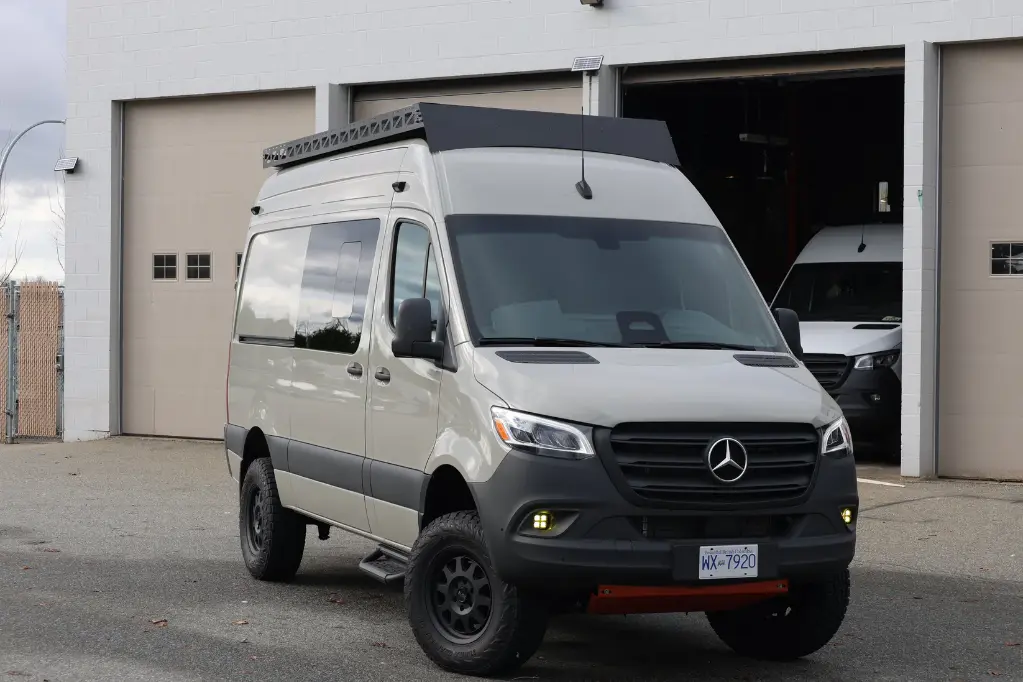

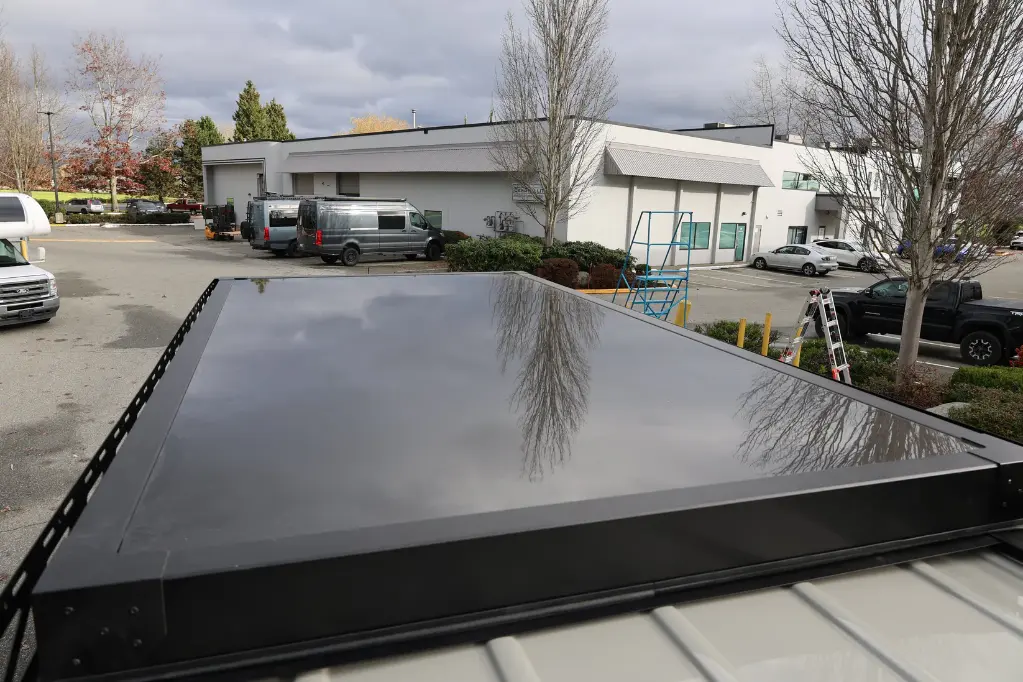

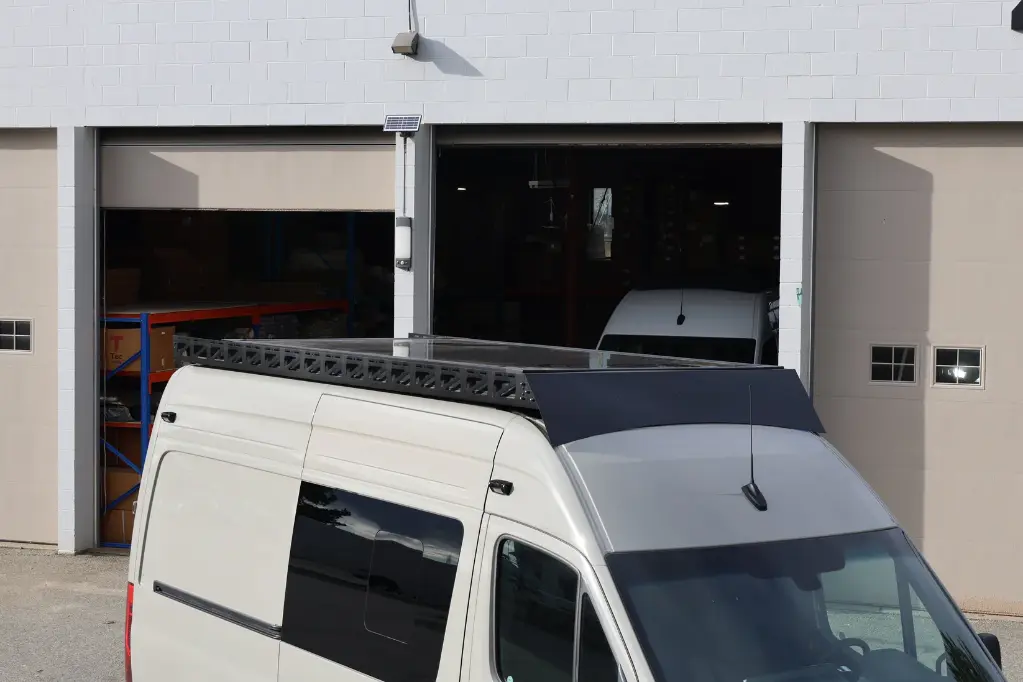

• Designed for seamless flush closure when not in use

SPECIFICATIONS

• Total system weight: ~150 lbs (varies by configuration)
• Material: Aerospace-grade carbon fiber composite
• Compatible vehicles: Mercedes Sprinter 144 High Roof / 170 High Roof
• Rack width: 153 cm (5 ft ¼ in)
• Sprinter 144 rack length: 342 cm (134.5 in)
• Sprinter 170 rack length: 442 cm (174 in)
• Interior width: 130 cm (51 in)
• Interior length: 252.5 cm (99.5 in)
• Front interior height: 94 cm (37 in)
• Rear interior height: 36 cm (14 in)
• Entry hatch opening: 450 × 700 mm (17.7" × 27.6")
• Mounting system: Direct bolt-on to roof rails (no drilling required)
• Insulation: Removable thermal layer (3–4 season configuration)
• Lighting: Integrated LED system
• Charging: Built-in USB + USB-C ports

COMPATIBILITY / INSTALLATION

• Designed exclusively for Mercedes Sprinter 144 and 170 High Roof vans
• Installs directly onto factory or compatible roof rails
• Entry hatch integrates similarly to a roof fan cutout (e.g., Maxxair-style opening)
• Supports rooftop accessories including:
  • Solar panels
  • Roof fans
  • Light bars
  • Roof rails and crossbars
• Interior-only operation for opening and closing system
• Installation does not require exterior drilling in standard configuration
• Professional installation recommended due to structural integration requirements
