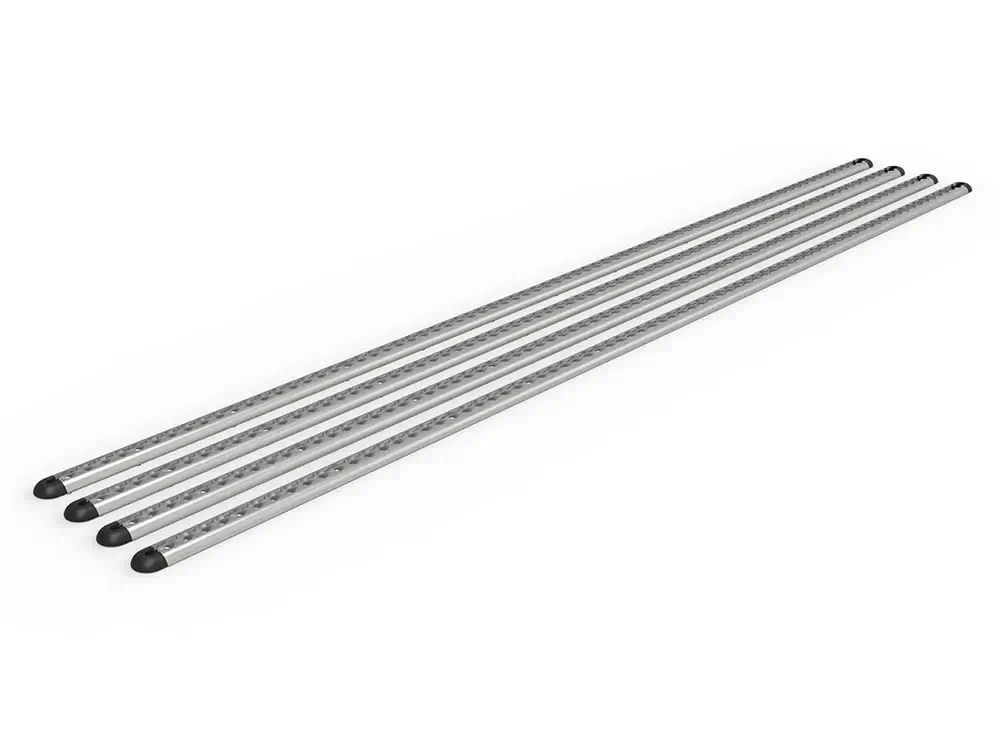

Sprinter Van Bed Bracket L-Track System – Floor-to-Ceiling Mounting Kit (2019+)

Maximize flexibility in your van build with the Sprinter Van Bed Bracket L-Track System, designed to integrate with Sprinter Bed Brackets and enable adjustable bed height configurations. This system also provides additional mounting points for gear, storage, and interior accessories, making it a versatile foundation for modular van layouts.

Built for strength and adaptability, the vertical L-Track setup allows on-demand repositioning of bed systems while maintaining structural stability throughout your build.

Features

• Enables floor-to-ceiling adjustable bed height system
• Integrates with Sprinter Bed Brackets and bed systems
• Provides additional gear and accessory mounting points
• Pre-aligned hole pattern for simplified installation

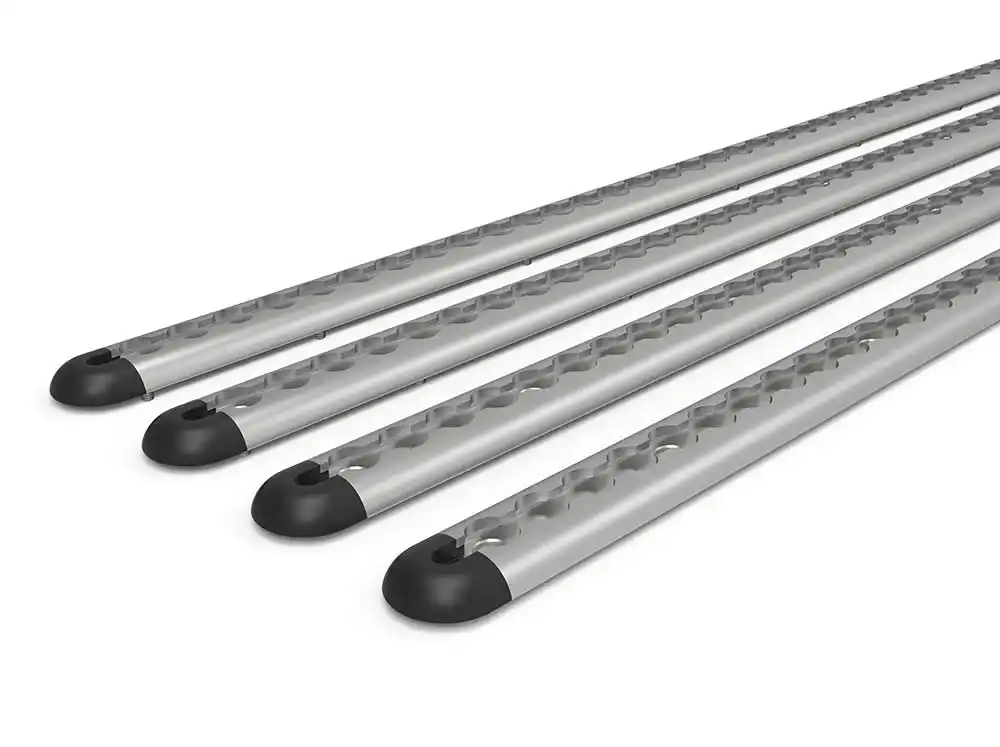

• Includes optional end caps for clean finish
• UV-resistant anodized aluminum construction
• Designed for modular and adaptable interior layouts
• Supports vertical storage and bed configuration flexibility

Installation Overview

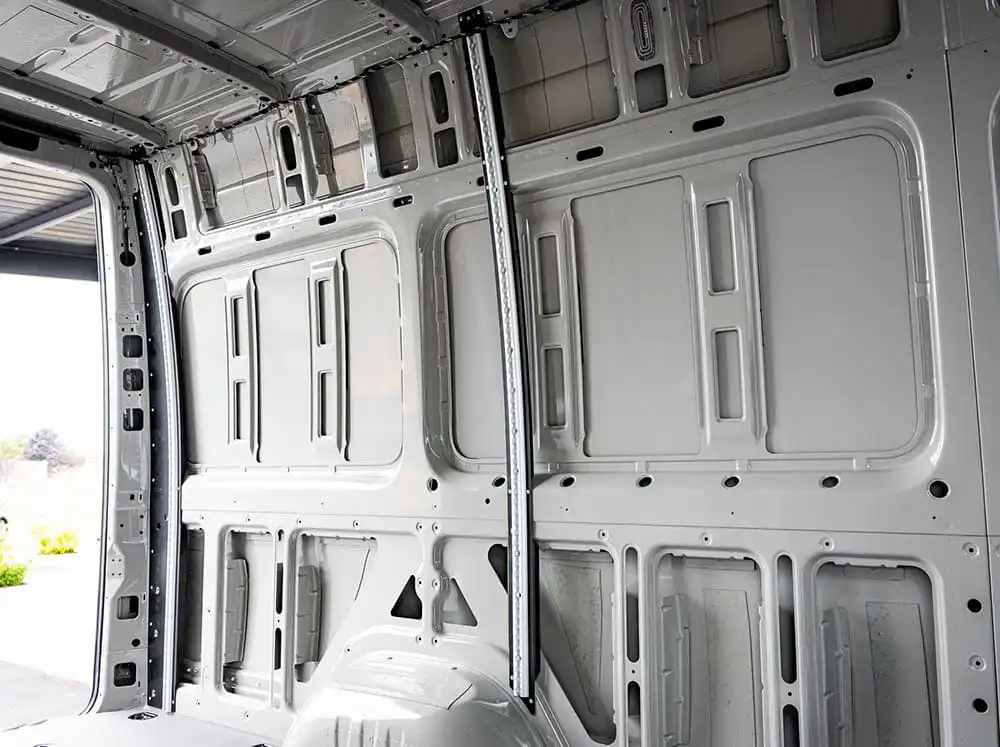

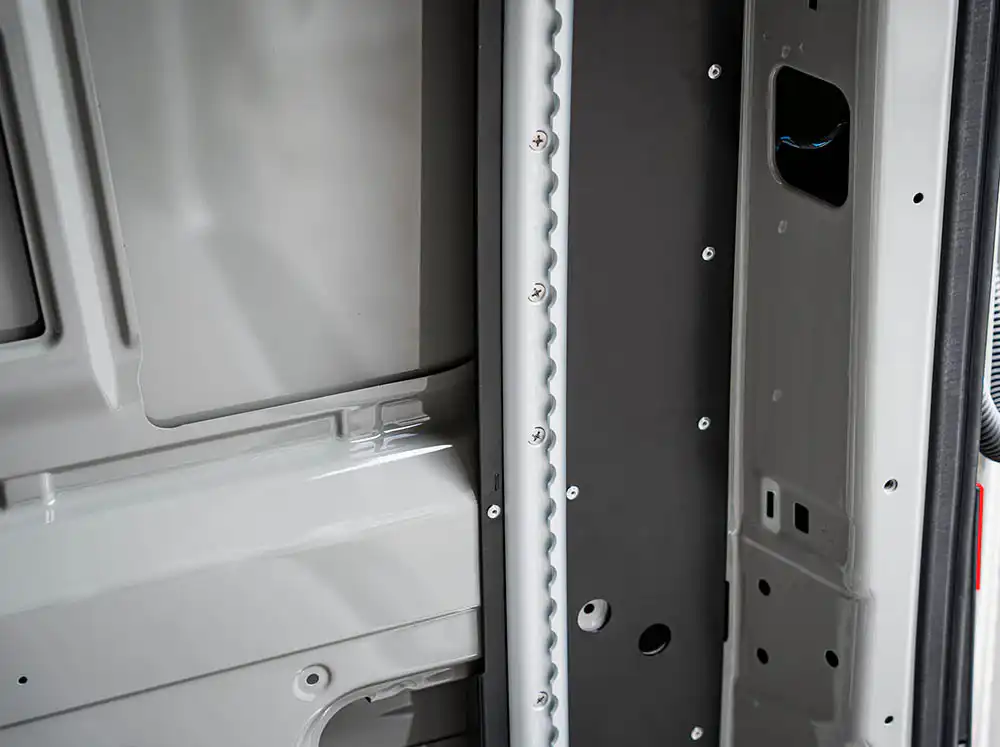

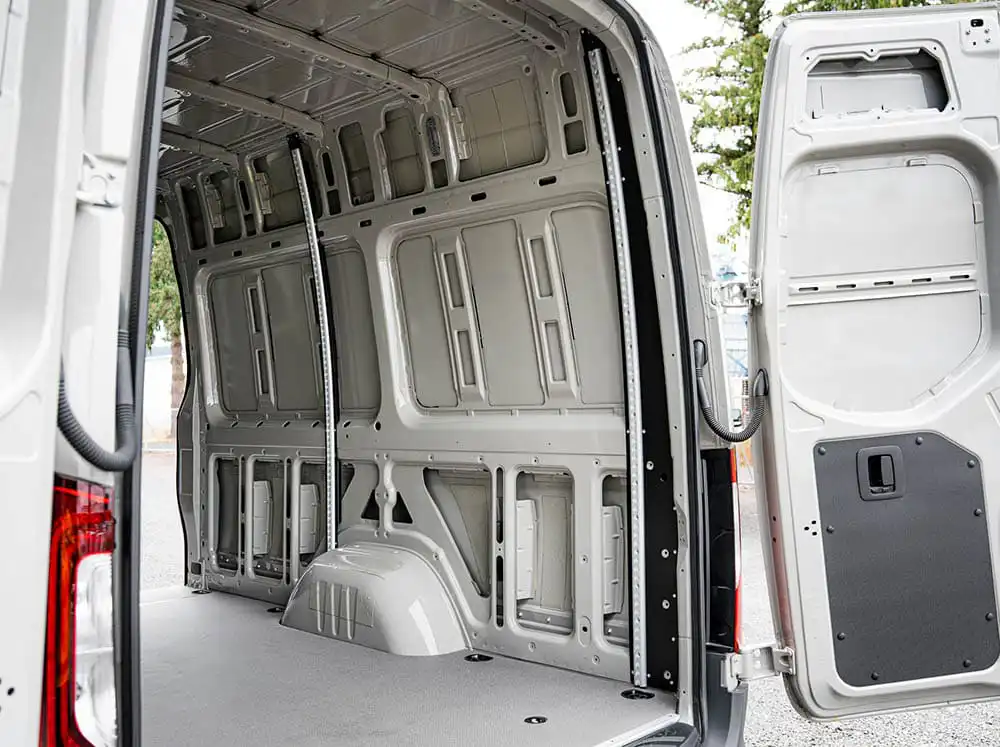

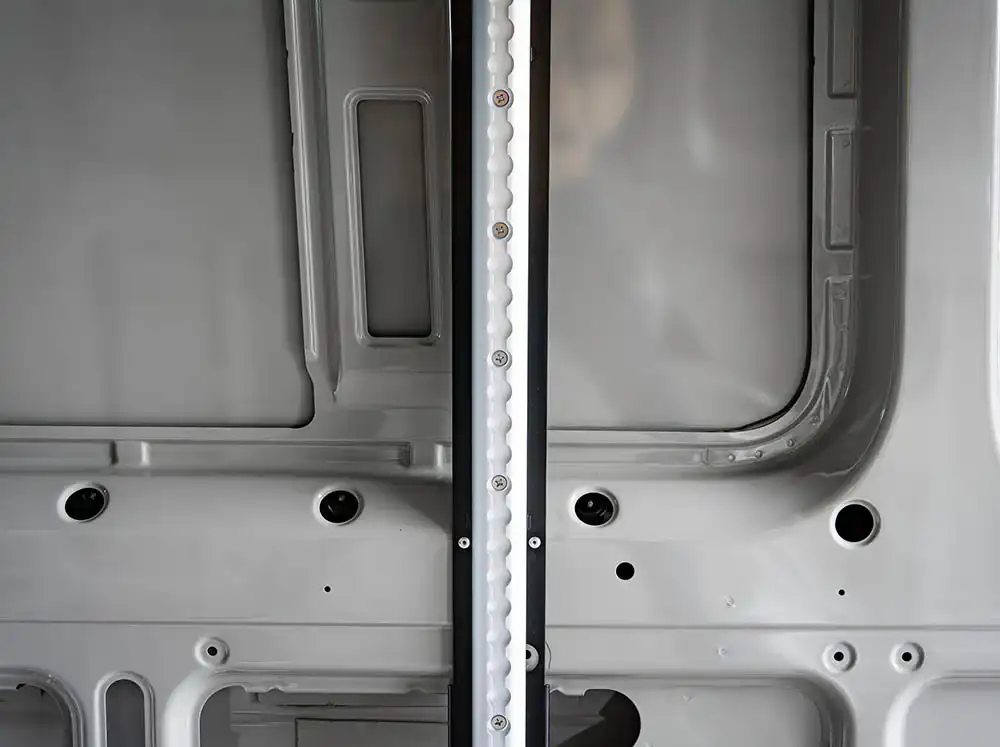

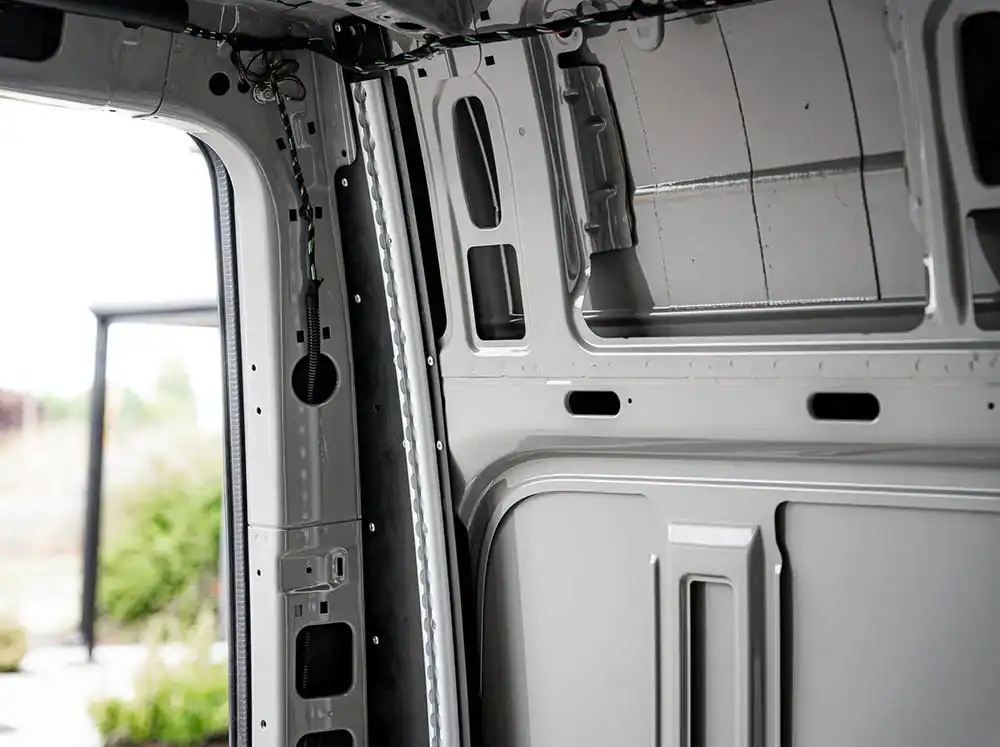

The L-Track mounts vertically between floor and ceiling using pre-aligned hardware points that match compatible bed brackets. Once installed, it creates a structural rail system that allows bed systems to be mounted, adjusted, or repositioned using L-track studs.

The system is designed for straightforward alignment with minimal measuring, reducing installation complexity and ensuring consistent fitment across compatible Sprinter layouts.

Compatibility

• Compatible with Mercedes-Benz Sprinter (2019+)
• Fits 144” high roof vans with bed brackets
• Fits 170” Sprinter high roof vans with bed brackets
• Requires compatible Sprinter Bed Bracket system

Specifications

• Material: 6000 series aluminum
• Finish: anodized, UV-resistant coating
• Coverage: floor-to-ceiling vertical installation
• Hardware: stainless steel hardware included
• System type: modular L-track mounting system
• Finish options: includes optional end caps
