Sprinter Van Ceiling Structure Kit
Features
- Creates a continuous flat ceiling mounting surface across the van
- Bridges gaps between factory structural ribs for consistent support
- Enables flexible installation of overhead cabinets and shelving
- Integrated wire channel with pass-throughs for clean cable routing

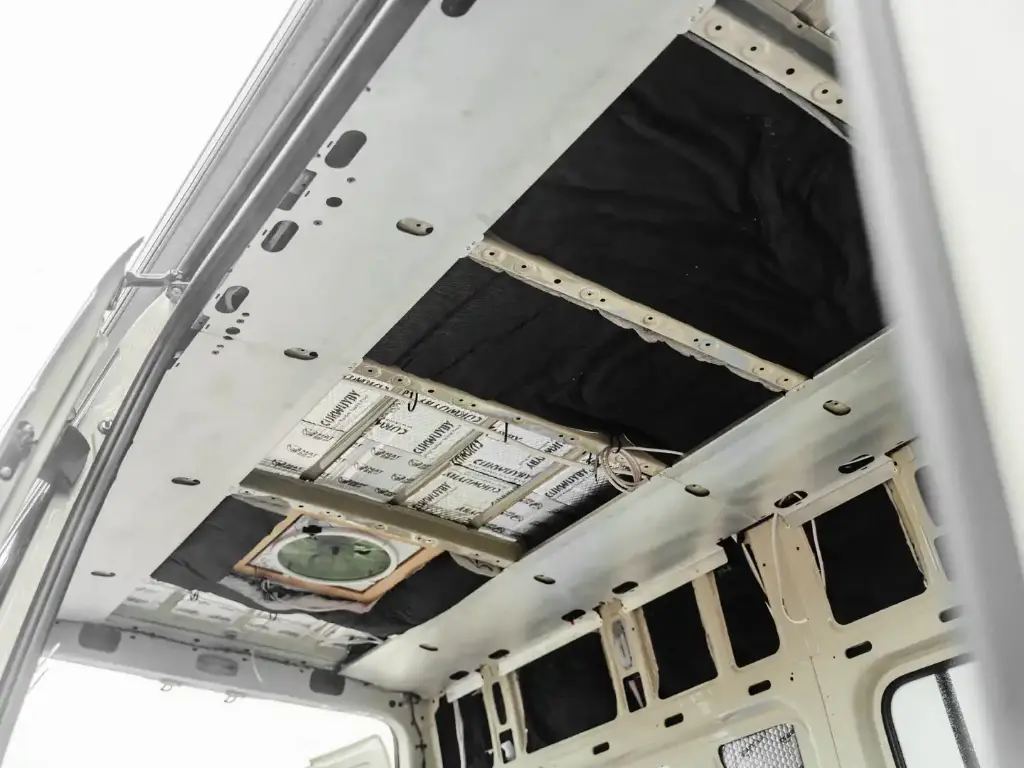

- Forms dedicated pockets for insulation placement
- Built-in flange at wall-to-ceiling junction for a clean finish

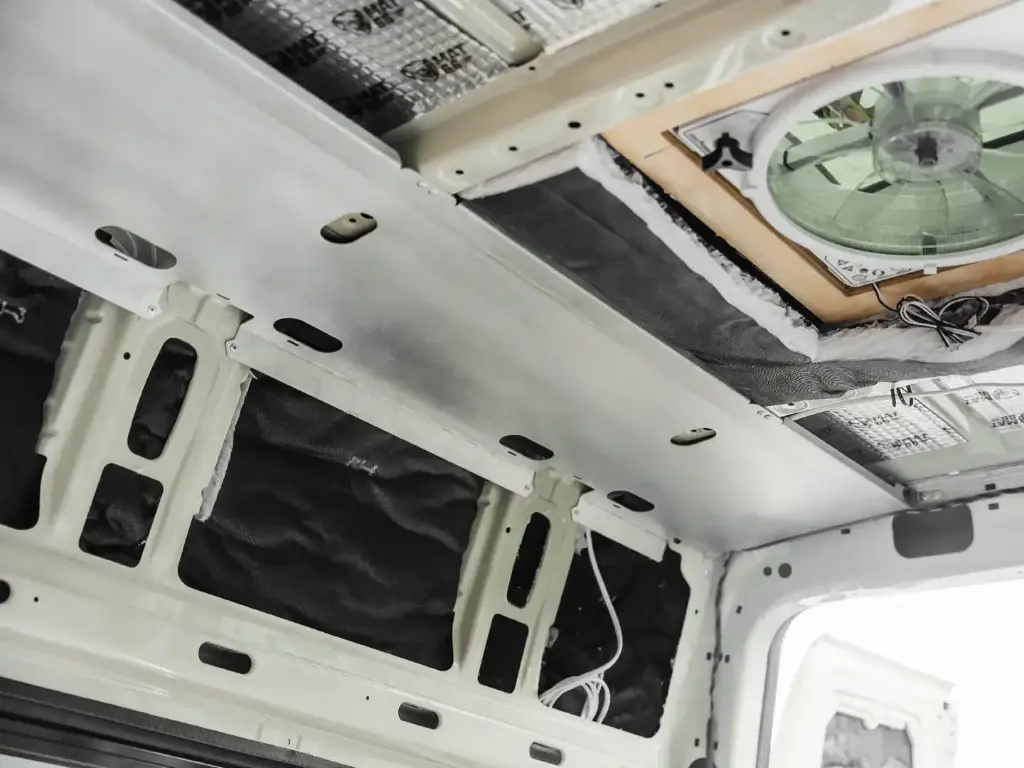

- Helps align interior wall panels and eliminate gaps

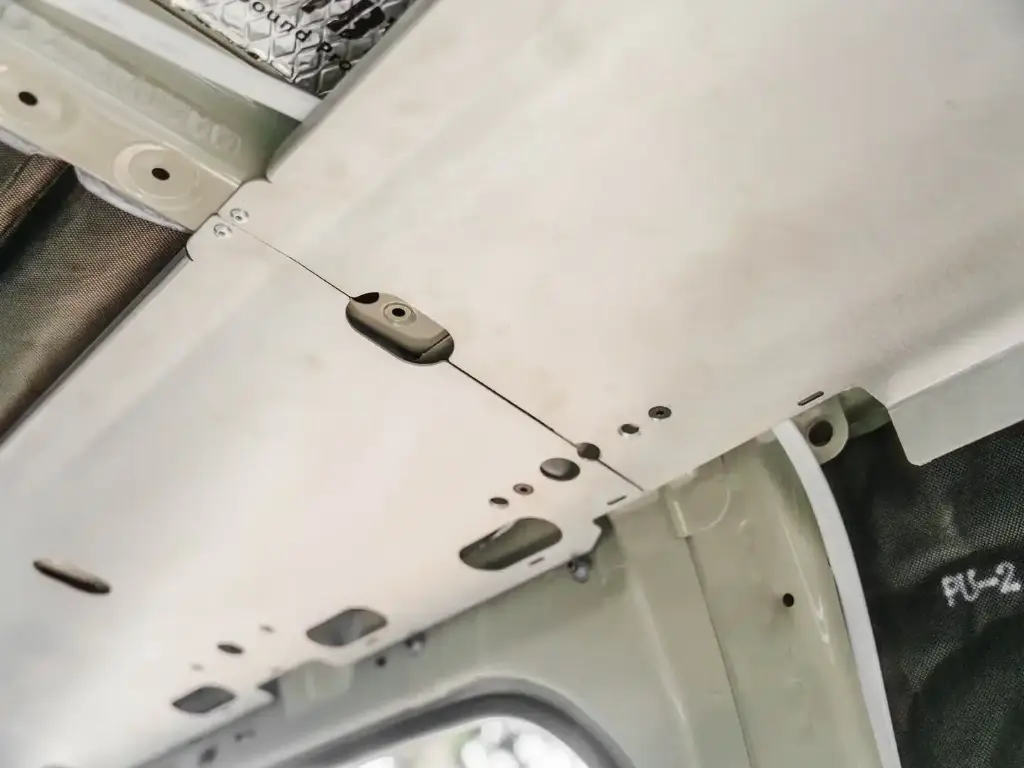

- Reduces installation time for van conversion builds
- Lightweight aluminum construction for strength without excess weight
- Designed for DIY builders and professional upfitters
Installation Guides

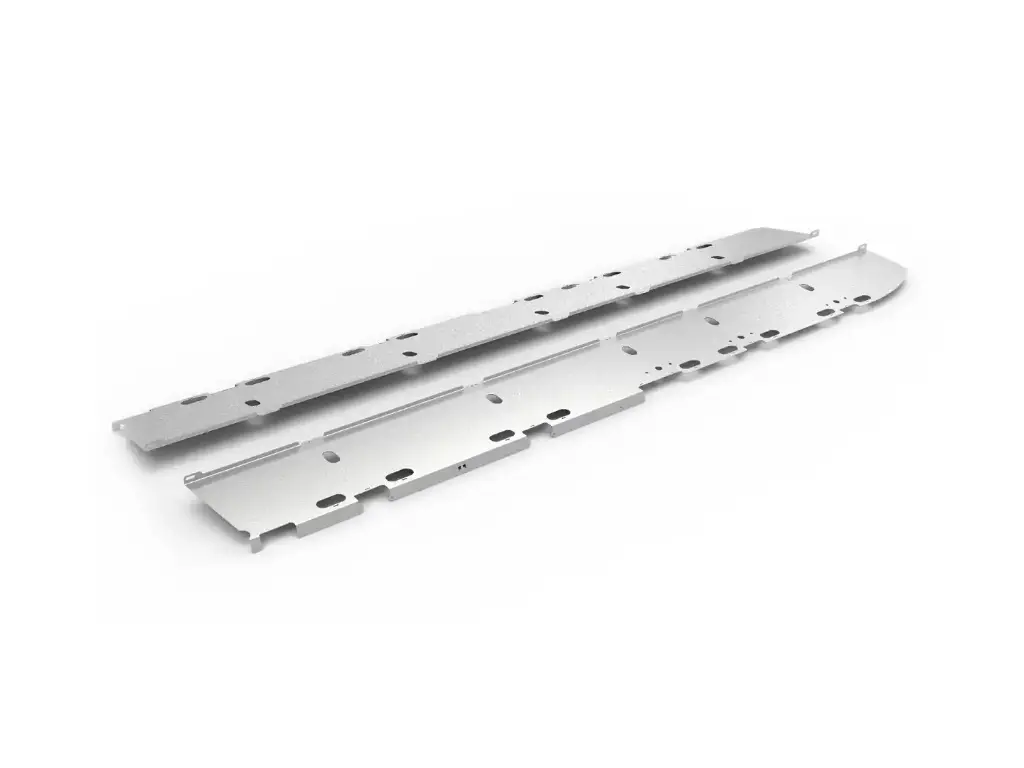

Sprinter Van Ceiling Structure Kit – Flat Mounting Framework System

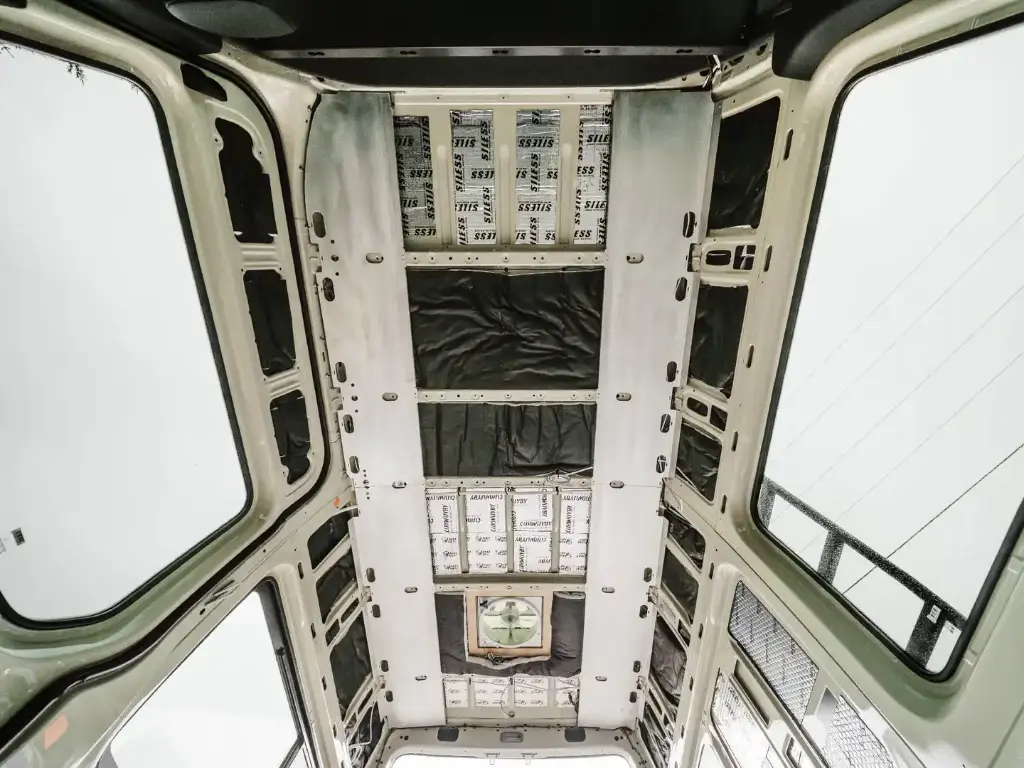

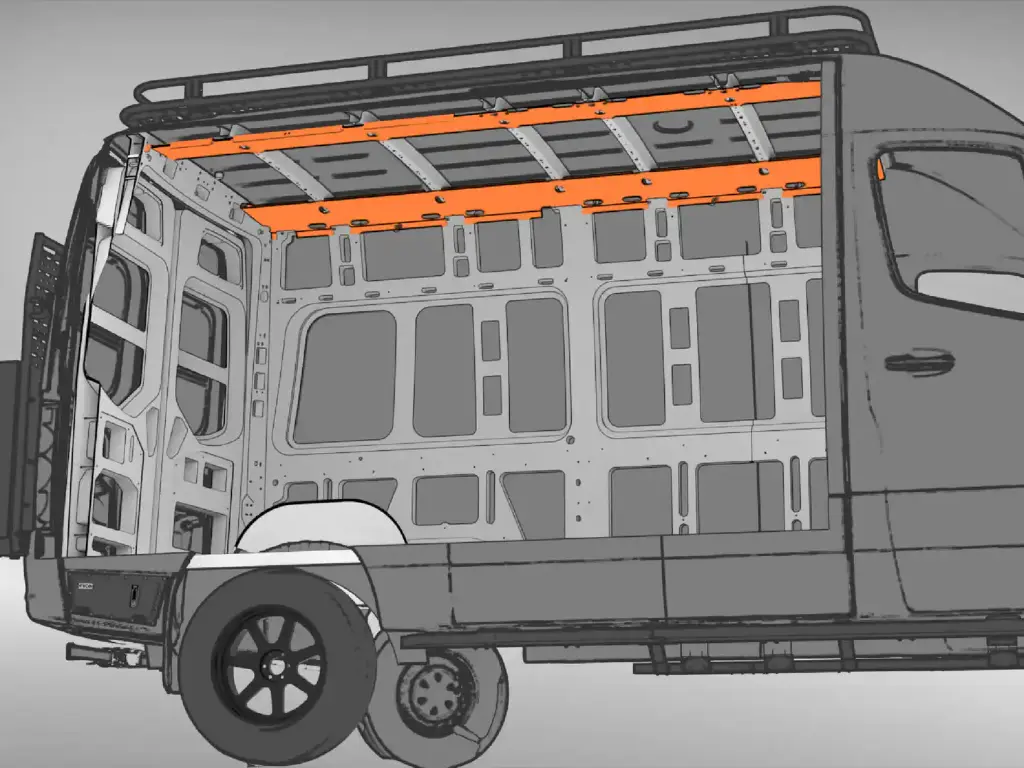

A ceiling structure kit designed to create a continuous, flat mounting surface inside Mercedes Sprinter vans. This system bridges factory roof ribs, eliminating uneven mounting points and simplifying the installation of cabinets, panels, and overhead storage.
Built for van conversions, it provides a clean, professional foundation while improving installation speed and layout flexibility.
Specifications
- Product Type: Ceiling structure framework kit
- Application: Van interior ceiling mounting system
- Vehicle Compatibility:
- 2019+ Mercedes-Benz Sprinter High Roof vans
- Fits 144" and 170" wheelbase models

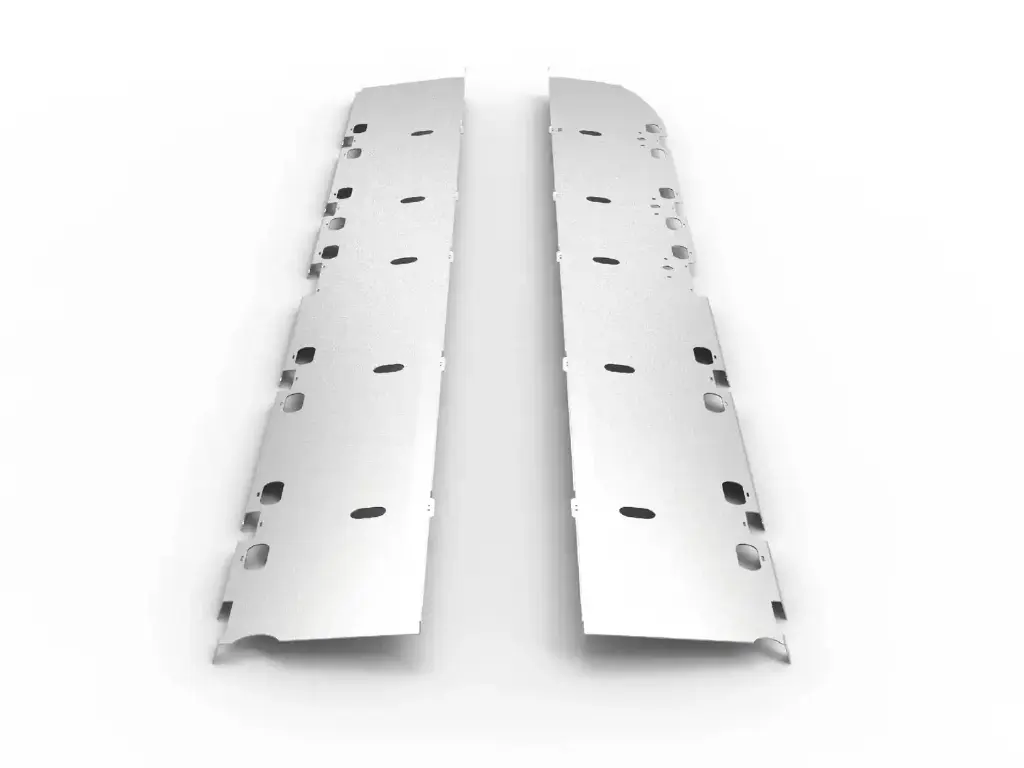

- Material: 2 mm aluminum panels
- Mounting Hardware: Stainless steel brackets
- Mounting Surface Width: 13 in continuous span
- Installation Type: Bolt-on structural integration
- Functionality: Supports cabinetry, paneling, wiring, and insulation
- Unit of Measure: Kit
| Select your van | SPRINTER 144" or SPRINTER 170" |
