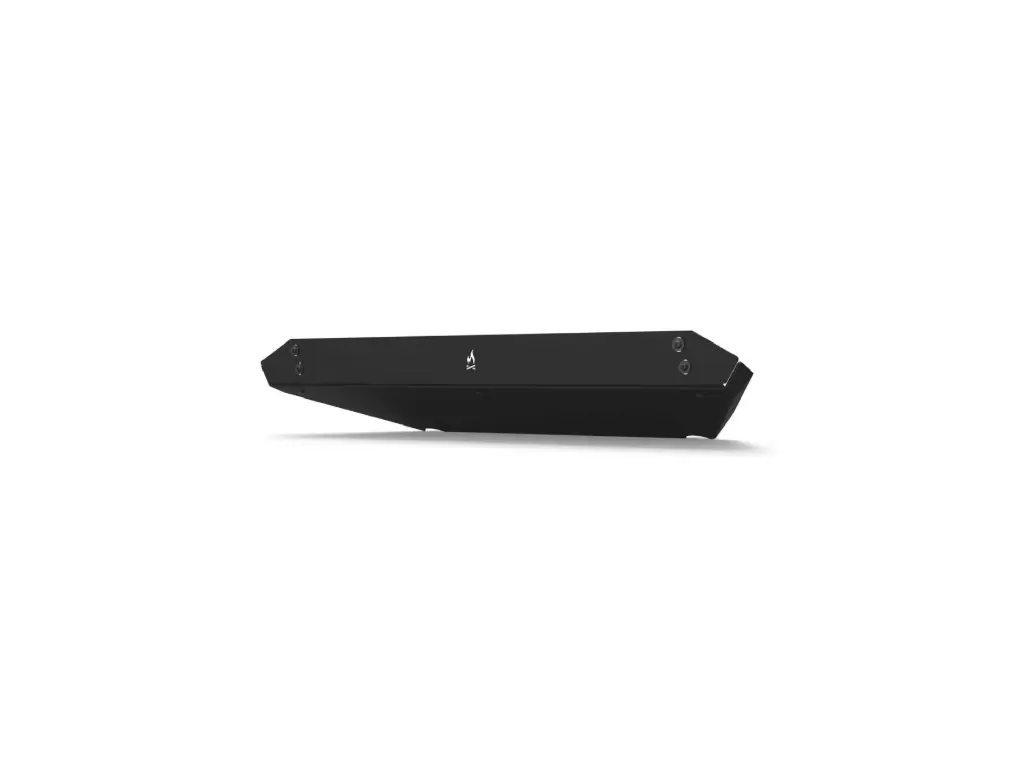

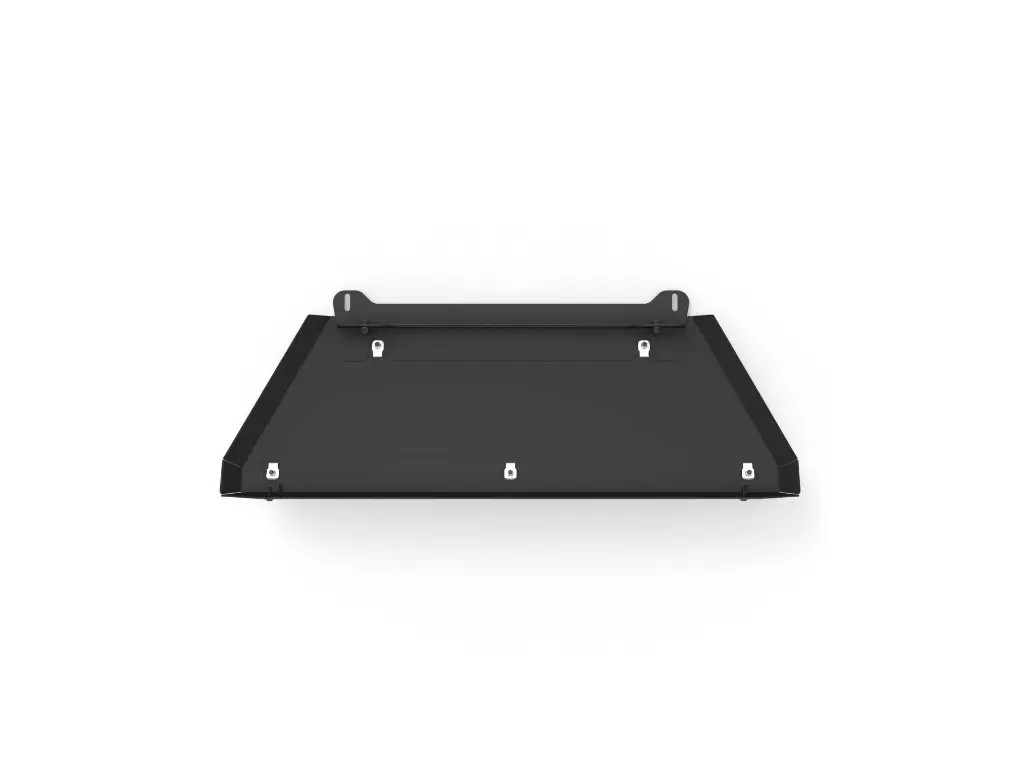

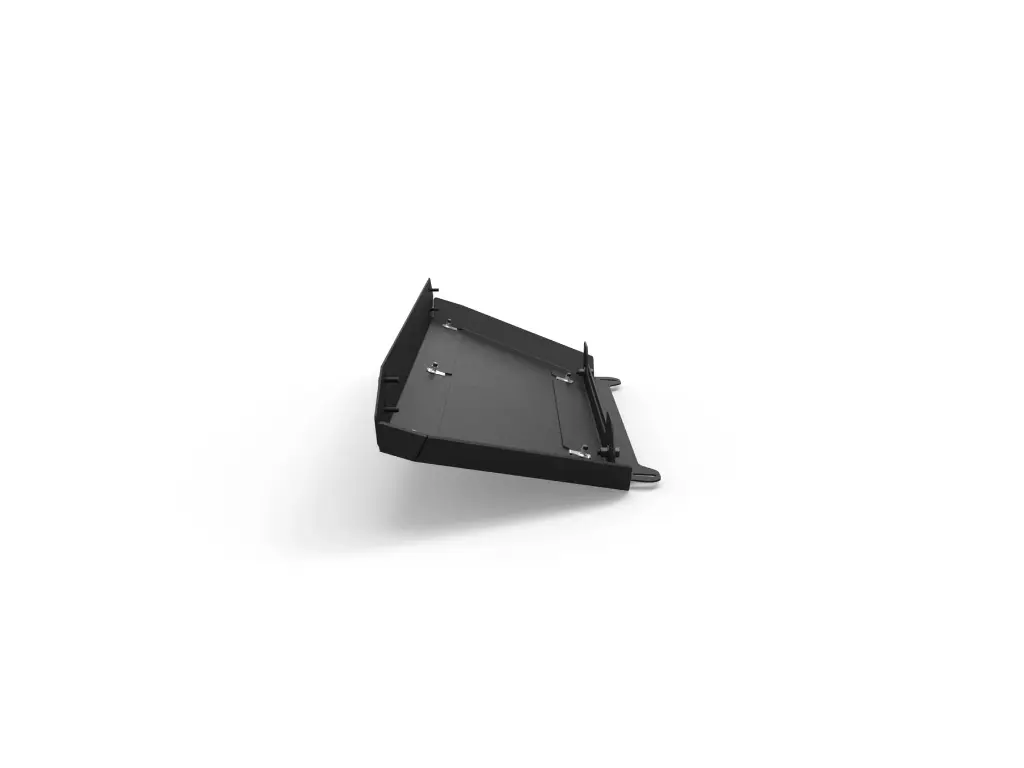

Sprinter Van Front Skid Plate
Features
- Provides full front engine underbody protection against trail damage
- Heavy-duty 5mm aluminum skid plate construction
- Integrated side bends for increased structural rigidity
- Stainless steel mounting brackets for long-term durability
- Bolt-on installation with no drilling or cutting required
- Quick-access design with 5-screw removal for maintenance
- Can be used as a standalone upgrade or paired with front-end accessories
- Designed for off-road and overland driving conditions
- Compatible with lifted and non-lifted configurations (select variants)
- Works with optional frame rail support system for 3500 models
Installation Guides
Sprinter Van Front Skid Plate Installation Guide » Sprinter Van Front Skid Plate Installation Guide »
Sprinter Van Front Skid Plate – Engine Protection System (5mm Aluminum)

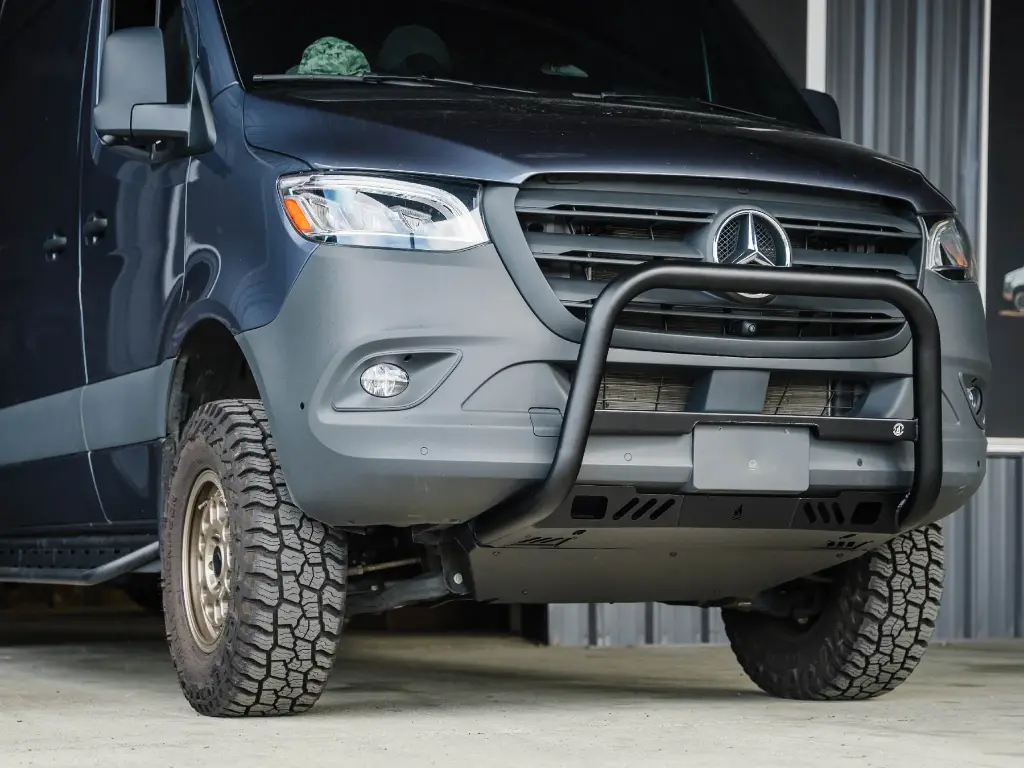

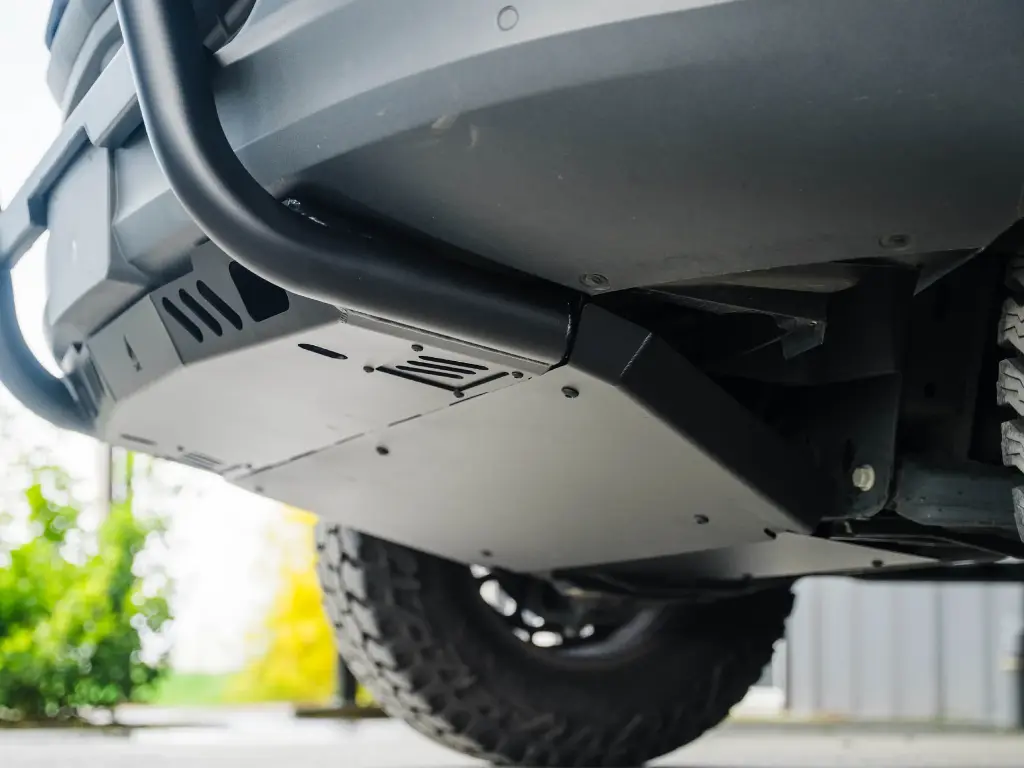

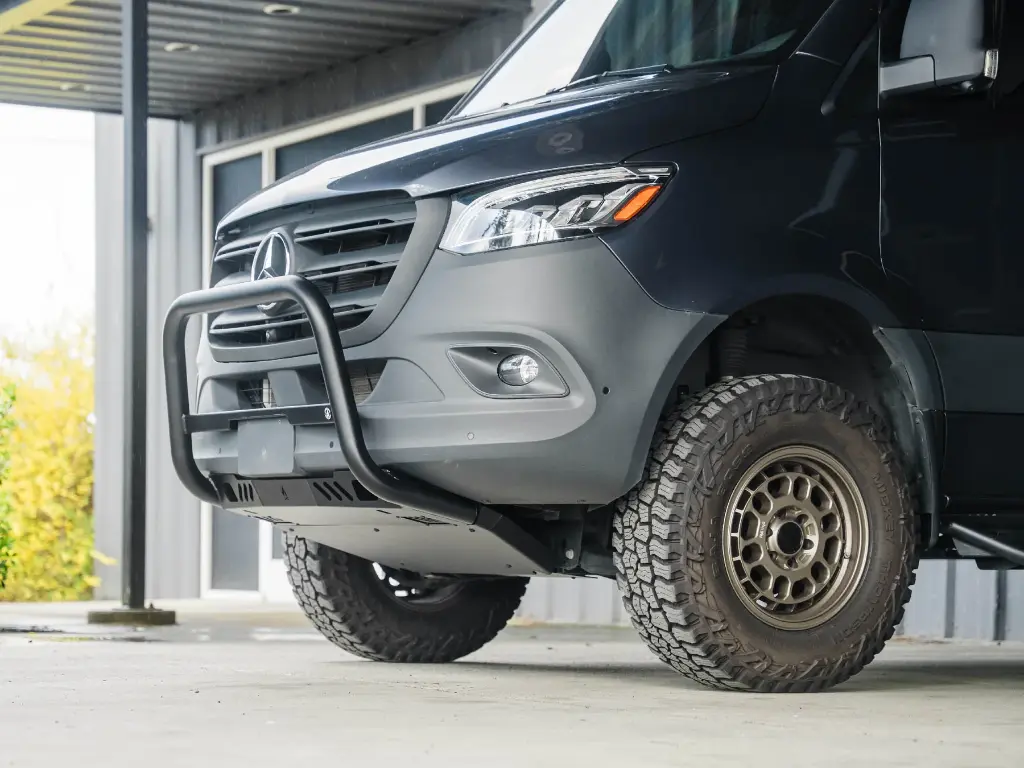

A heavy-duty front skid plate designed to protect the underside of Mercedes Sprinter vans from rocks, debris, and trail hazards. Built for overland and off-road use, it provides a strong protective barrier for critical engine components while maintaining a lightweight, bolt-on design.
Ideal for van builds that require underbody protection without permanent modification.
Specifications
- Product Type: Front engine skid plate
- Application: Underbody engine protection
- Vehicle Compatibility:
- 2019+ Mercedes-Benz Sprinter vans (4WD / AWD)
- Material: 5 mm aluminum plate
- Mounting Brackets: 3 mm stainless steel
- Finish: Exterior-grade protective finish
- Installation Type: Bolt-on (no permanent modification)
- Maintenance Access: 5-screw removal system
Compatibility Notes
- 3500 models require factory over-run brackets or frame rail support brackets
- Compatible with select lifted configurations (lift kit dependent)
- Can be paired with front-end accessory systems
Unit of Measure: Each
| Select year/model | 2019-2022 4WD or 2019-2022 4WD with 2" Lift or 2023+ AWD or 2023+ AWD with 2" Lift |
