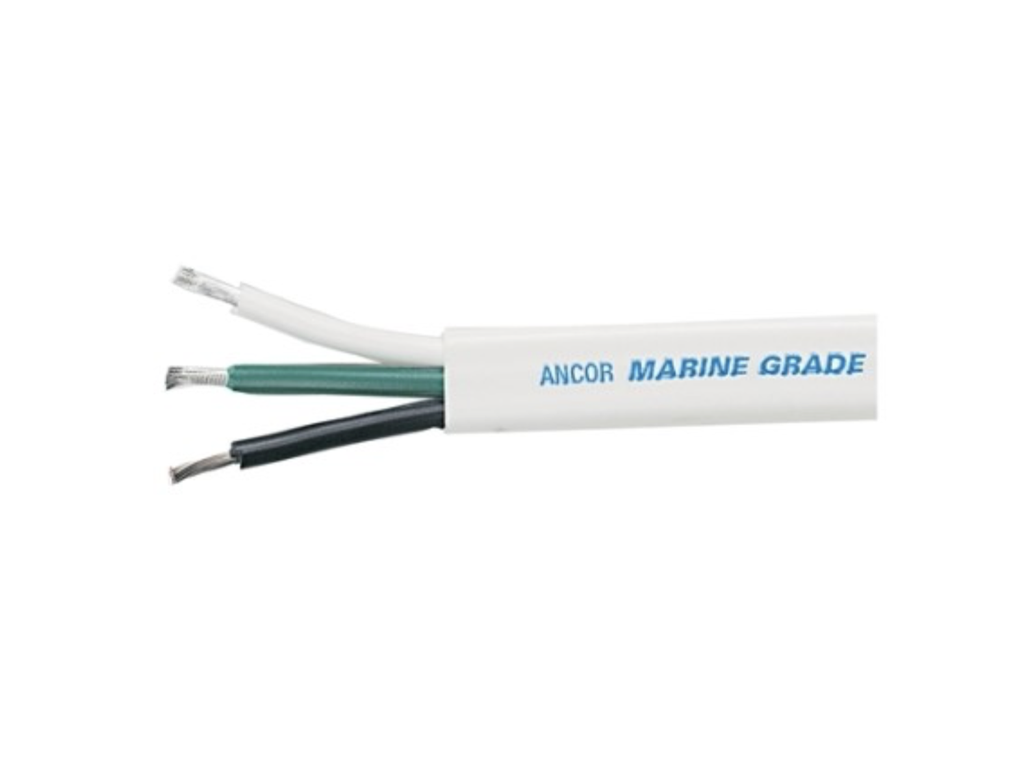

This 10/3 AWG flat triplex cable is designed for marine and mobile electrical installations. It features three tinned copper conductors enclosed in a durable white outer jacket, providing corrosion resistance and protection against demanding environmental conditions.
FEATURES
Three tinned copper conductors for improved corrosion resistance
Flat outer jacket for easier routing through confined spaces
Flexible, marine-grade insulation designed to withstand vibration and repeated flexing
Resistant to salt water, battery acid, oil, gasoline, abrasion and UV exposure
Colour-coded conductors for easier identification
SPECIFICATIONS
Wire gauge: 10/3 AWG (3 × 5 mm²)
Conductor: Tinned copper, stranded
Number of conductors: 3
Conductor colours: White, black and green
Outer jacket: White, flat vinyl
Nominal cable dimensions: 1/4 × 21/32 in (6 × 17 mm)
Voltage rating: 600 V
Temperature rating: 105°C (221°F) dry / 75°C (167°F) wet
Available formats: Sold by the foot or 100 ft spool
