TINNED CABLE - 16/3 FLAT TRIPLEX

SKU:

202​2323582

https://canadarv.com/web/image/product.template/5049/image_1920?unique=f0393d8

1.66 $ 1.66 CAD 1.66 $

Contact us for quote


  • Lenght

This combination does not exist.

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

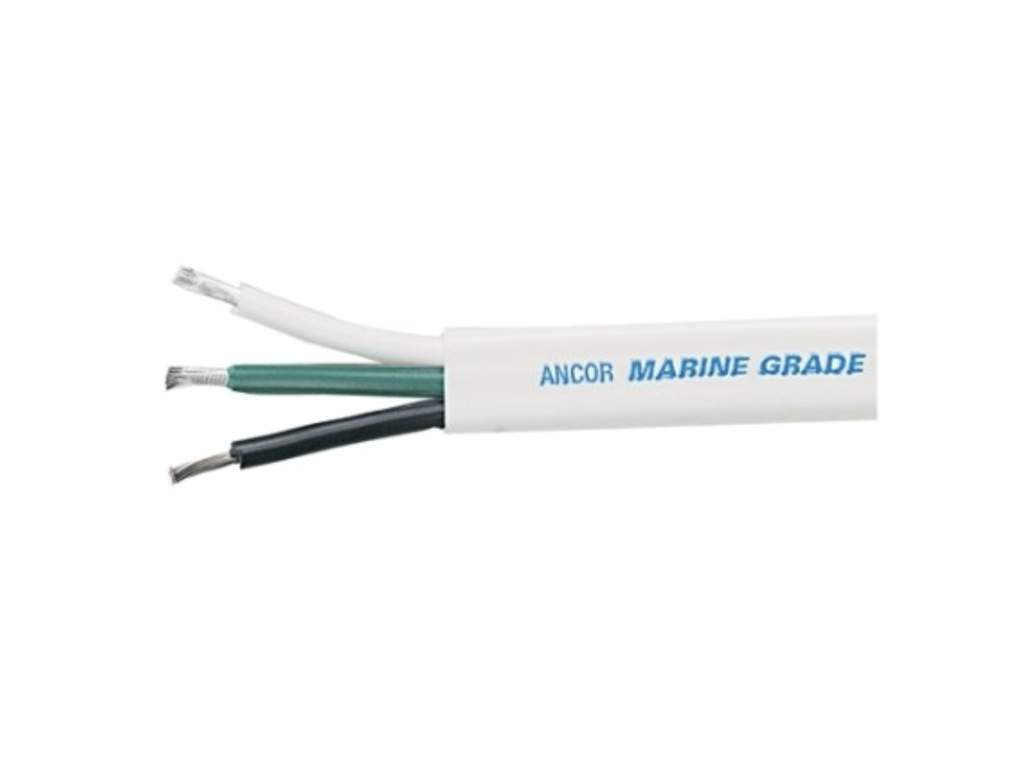

This 16/3 AWG flat triplex cable is designed for marine and mobile electrical installations. It features three tinned copper conductors enclosed in a durable white outer jacket, providing corrosion resistance and protection against demanding environmental conditions.

FEATURES
  • Three tinned copper conductors for improved corrosion resistance

  • Flat outer jacket for easier routing through confined spaces

  • Flexible Type III stranded construction helps resist fatigue caused by vibration and repeated flexing

  • Insulation resists salt water, battery acid, oil, gasoline, heat, abrasion and UV exposure

  • Colour-coded conductors for easier circuit identification

SPECIFICATIONS
  • Wire gauge: 16/3 AWG (3 × 1 mm²)

  • Conductor: Type III stranded tinned copper

  • Number of conductors: 3

  • Conductor colours: Black, green and white

  • Outer jacket: White, flat vinyl

  • Nominal cable dimensions: 3/16 × 15/32 in (5 × 12 mm)

  • Voltage rating: 600 V

  • Temperature rating: 105°C (221°F) dry / 75°C (167°F) wet

  • Available spool lengths: 100 ft, 250 ft, 500 ft and 1,000 ft
