Ultralight sandwich panel with XPS core (3/4" - 18mm)

https://canadarv.com/web/image/product.template/5550/image_1920?unique=852148a

160.00 $ 160.0 CAD 160.00 $

160.00 $

Contact us for quote


  • SHIPPING OPTION

This combination does not exist.


100% original guarantee
Return within 30 days for most orders
Free delivery on most orders

SHIPPING COST ARE NOT INCLUDED

- Minimum purchase of 5 plywood for shipping option

- We will contact you after your purchase to give you the shipping price.

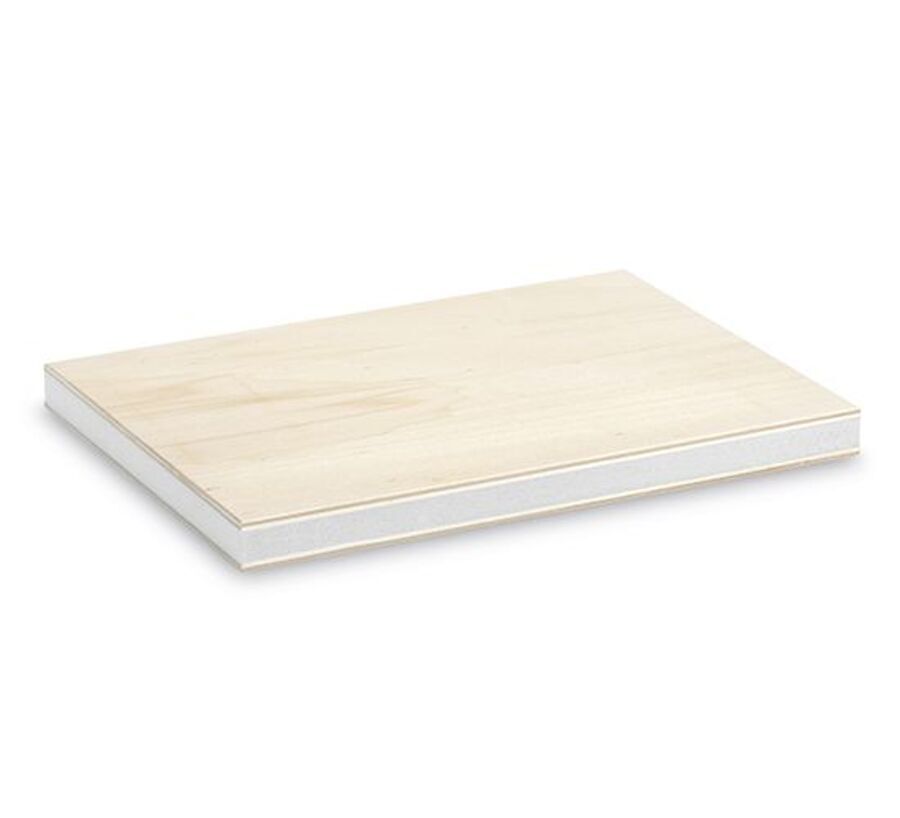

Ultralight sandwich panel with an insulating XPS (extruded polystyrene) core combined with plywood that is made of 100% European poplar from sustainable plantations.

Its light-coloured poplar faces and premium-quality inner veneers make it ideal for painting, laminating/filming and for digital and screen printing.

Combining the excellent mechanical properties of Garnica plywood - lightweight, stable and easily machinable - with an insulating and ultralight material such as extruded polystyrene, produces a panel with improved performance.

Glue Type: Class I (interior) according to EN 636

Emissions: Class E1 according to EN 13986

Face grade: BBA/BBA: BBA faces with natural colouring of the poplar heartwood and occasional presence of knots. Both faces closed and repaired*. Ideal for lamination with standard HPL and veneers.

* Except for thin panels (3-ply), in which only the top face is repaired.

  • Exceptional lightness. 227 kg/m3 (Density: total thickness of 18 mm (4.5 + 9 + 4.5 composition) ± 5% tolerance.)
  • Exceptional insulation. Both thermal and acoustic.
  • Dimensional stability. Excellent results in terms of elasticity and modulus of rupture.
  • Easily machinable. Very easy to cut and sand.
  • Sustainability. Certified fast-growing European plantations.

ADVANTAGES AND BENEFITS

- Exceptionally lightweight. 29.2 Lb kg/m3 (Density: thickness 3/4''; ± 5% tolerance

- Excellent heat insulation and sound-proofing.

- Dimensional stability. Excellent results in terms of modulus of elasticity and rupture.

- Easy to machine. Very easy to cut and sand.

- Sustainability. Certified European fast-growing plantations.


TECHNICAL SPECIFICATIONS

Product #G50UL654802SWidth48 inLength96 inSpeciesPoplarSurface MaterialHigh Pressure Laminate (HPL)Panel CorePoplar VeneerStandards and CertificationsCARB, TSCALaminationYesBondingClass 1, EN 363 StandardEmissionsClass E1, EN 13986 Standard, CANFERFace QualityBB/BBBrandGarnica

APPLICATION

- Interior furniture

- RVs and campervans

- Nautical applications

- Crafts

and more!
