STAGE 3 SYSTEM - SPRINTER 2500 4X4,v2019-2022 - MID TUNE - VAN COMPASS
f you're running a full-time adventure rig, heavy Class B RV, or a passenger van loaded with gear, the Van Compass STAGE 3 SYSTEM - SPRINTER 2500 4X4, 201919-2022 - MID TUNE (7053-2500-M) is your go-to suspension upgrade for the 2019–2022 Sprinter 2500 4x4. This system is specifically engineered to correct rear sag and significantly enhance stability, ride quality, and off-road handling.
Designed for vans experiencing rear-end droop from heavy conversions or build-outs, this package combines a rear mini leaf spring pack, front and rear Falcon 2.1 Monotube shocks, and progressive front bump stops. The result? A more level ride height, better control, and confidence across rugged terrain or rough pavement.

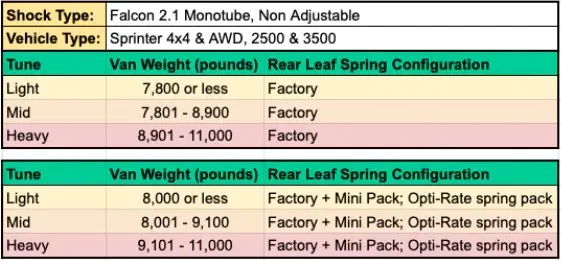

This “Mid Tune” variant is ideal for vans that frequently operate at or near GVWR, offering a firmer setup without sacrificing ride comfort.

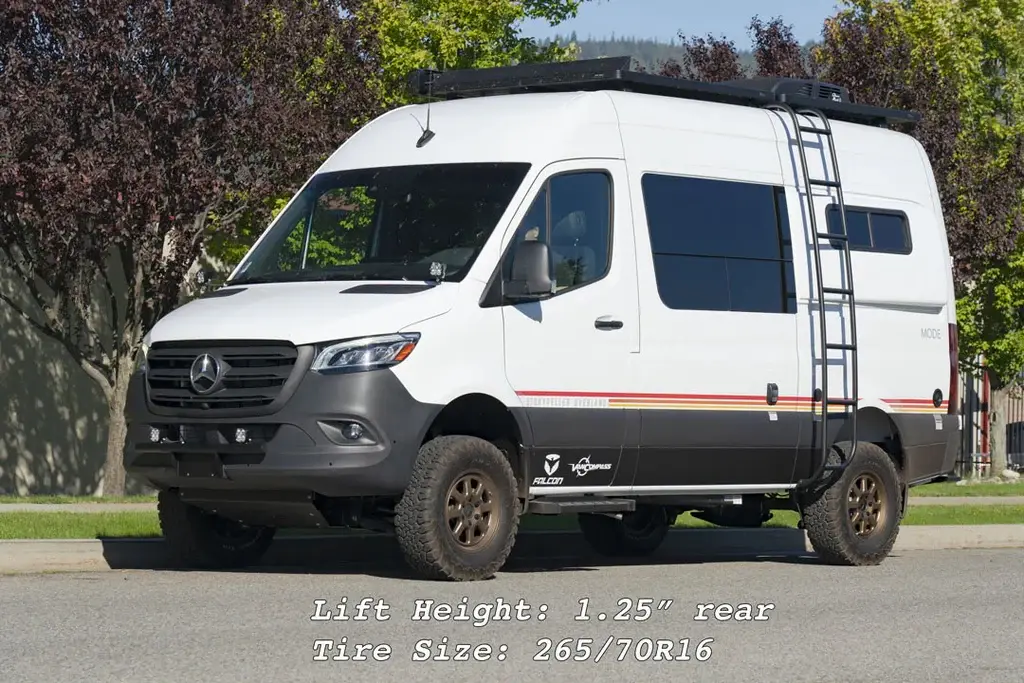

Restores up to 1.25" of rear ride height and corrects rear-end sag
Improves cornering control and reduces wind sway
Smooths out both small bumps and large hits off-road
Reduces body roll and enhances driver confidence on twisty roads
Improves bottom-out resistance under load
Tuned specifically for Sprinter 4x4 chassis with full-time weight in mind

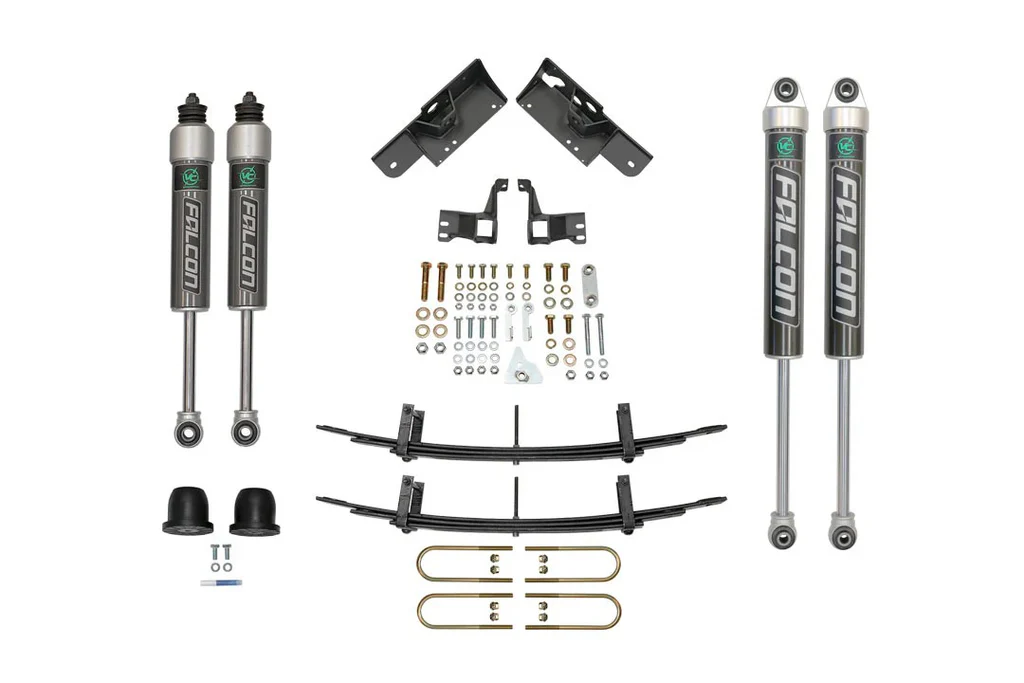

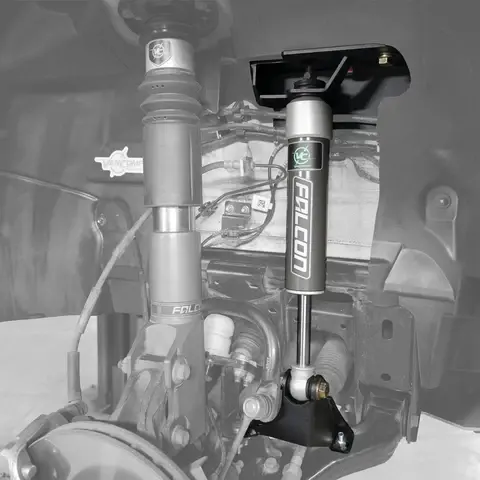

(2) VC-Tuned Falcon 2.1 Monotube Front Shocks w/ Mounting Brackets

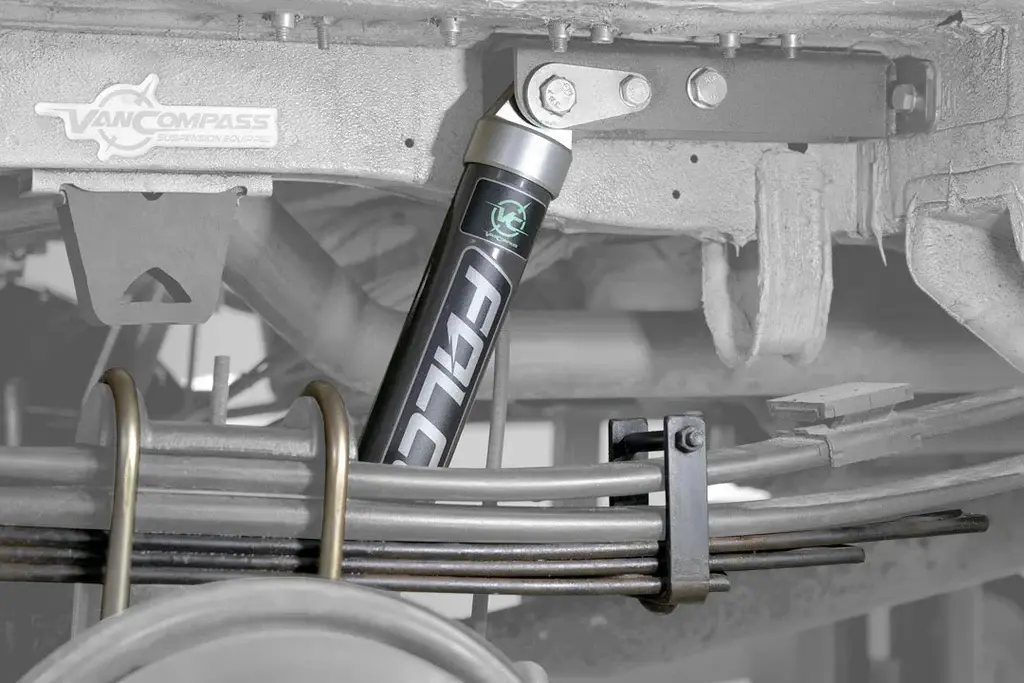

(2) VC-Tuned Falcon 2.1 Monotube Rear Shocks
Front Bump Buddy Progressive Bump Stops
Rear Mini Leaf Spring Pack
Dust Boots for all 4 shocks
Complete Hardware Kit & Installation Instructions
Whether you're climbing mountain passes or navigating backcountry trails, this Stage 3 System delivers the support, comfort, and control your Sprinter 2500 4x4 needs. Upgrade your van and drive with confidence—no matter where the road (or lack thereof) takes you.
2015+ VS30 4x4 Falcon Front Shock Installation Instructions
NCV3, VS30 4x4 Falcon 2.1 Rear Shock Installation Instructions
Sprinter AWD and 4x4 Front Bump Buddies installation instructions
Rear Mini Pack Installation Instructions
Video: Van Compass STAGE 3 SYSTEM - SPRINTER 2500 4X4, 201919-2022 - MID TUNE (7053-2500-M)
