Velit 2000R Mini Rooftop Air Conditioner 12V

Download the User Manual here !

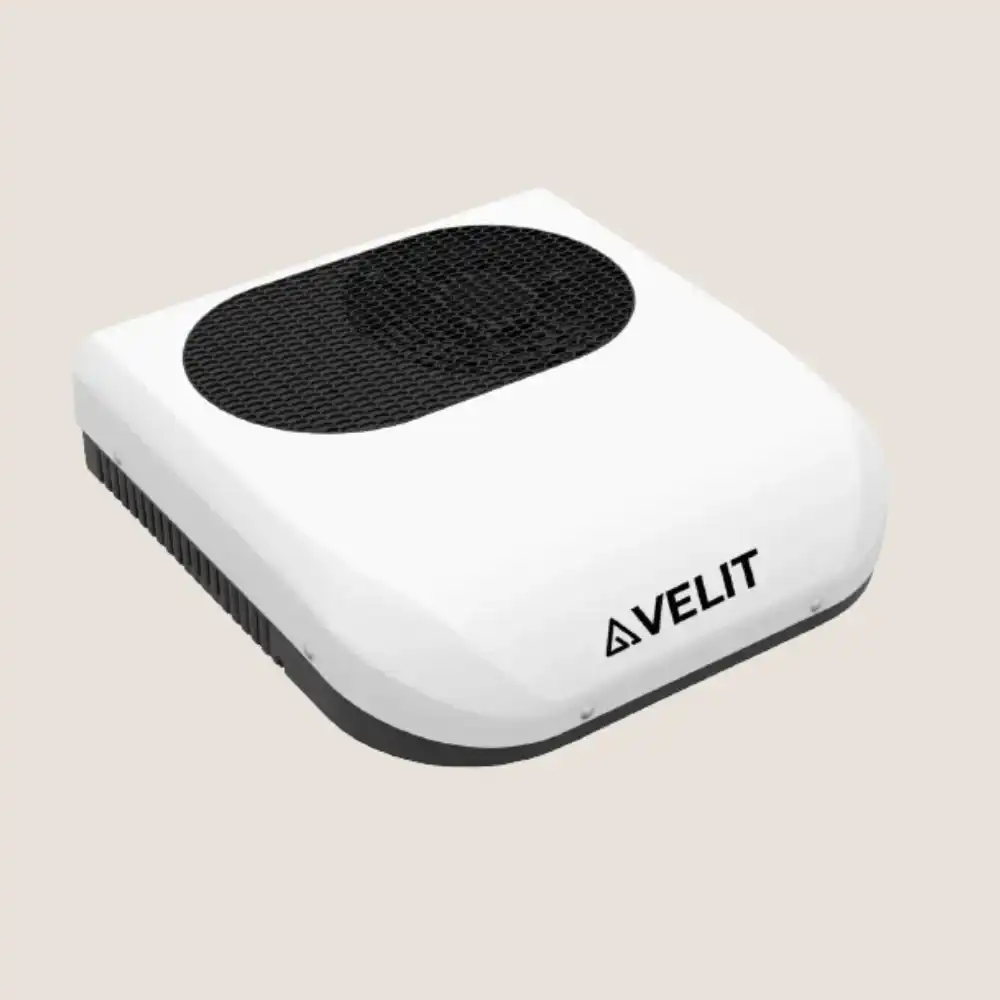

Velit 2000R Mini Rooftop Air Conditioner – 12V DC 7500 BTU

The Velit 2000R Mini is an ultra-compact 12V rooftop air conditioner designed for camper vans, RVs, and off-grid vehicle builds. Featuring a high-efficiency twin-cylinder rotor compressor, this low-profile unit delivers up to 7500 BTU of cooling performance while maintaining low power consumption for battery and alternator-friendly operation.

Features

• 7500 BTU cooling capacity for vans, RVs, and compact off-grid spaces
• Ultra-low profile design with only 6.5" height clearance
• High-efficiency twin-cylinder rotor compressor for reliable cooling performance
• Low power consumption designed for energy-conscious DC systems
• Eco and Turbo operating modes for adjustable comfort and efficiency
• Direct DC operation compatible with most vehicle electrical systems
• Fits standard 14" x 14" rooftop openings for simplified installation
• Quiet operation ideal for sleeping and extended travel use

Specifications

• Model: 2000R Mini
• Voltage: 12V DC
• Cooling Capacity: 6500–7500 BTU
• Operating Current: 20–50A
• Rated Power: 600W
• Air Flow Rate: 250 CFM
• Refrigerant: R134a (500g)
• Power Consumption:
  • Eco Mode: 250–300W
  • Turbo Mode: 400–650W
• Noise Level:
  • Eco Mode: 45 dB
  • Boost Mode: 58 dB
• Roof Unit Dimensions: 26.4" W x 26" L x 6.5" H

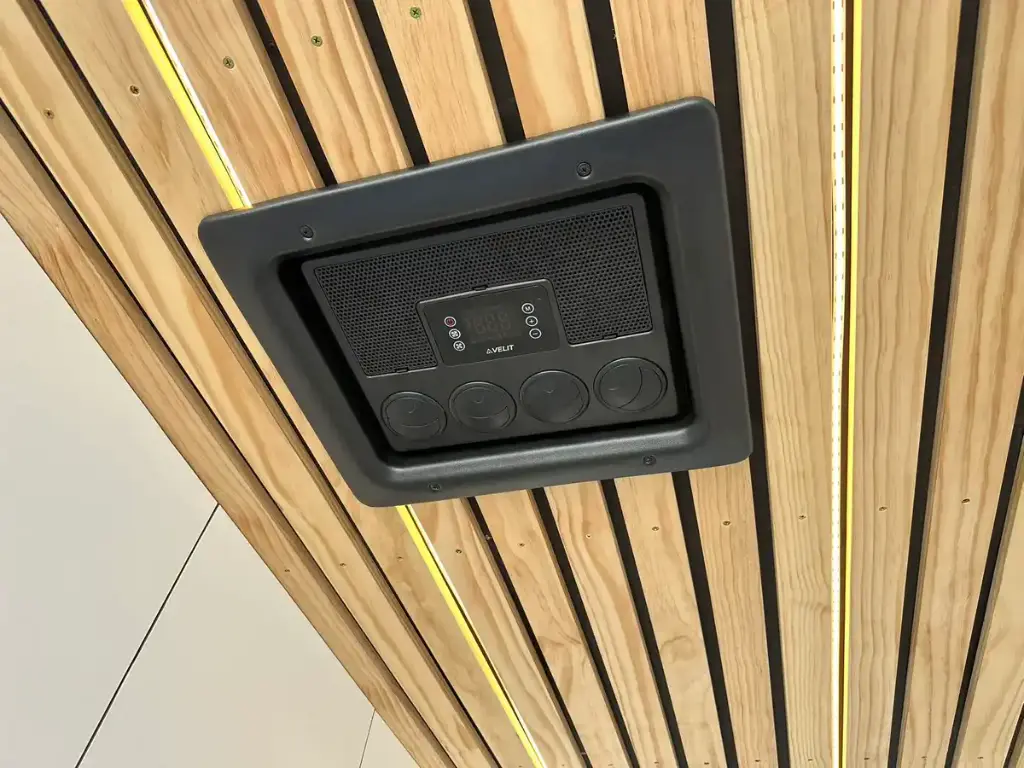

• Interior Trim Dimensions: 13.8" W x 11" L x 4.3" H
• Weight: 61 lbs

Compatibility & Installation

• Compatible with standard 14" x 14" roof cutouts
• Suitable for camper vans, RVs, overland builds, and off-grid vehicles
• Can operate directly from many vehicle alternators without requiring a secondary battery system
• Includes mounting brackets, sealing gasket, wiring harness, interior trim panel, remote, and mounting hardware
• Sealant recommended for uneven roof surfaces such as van installations
