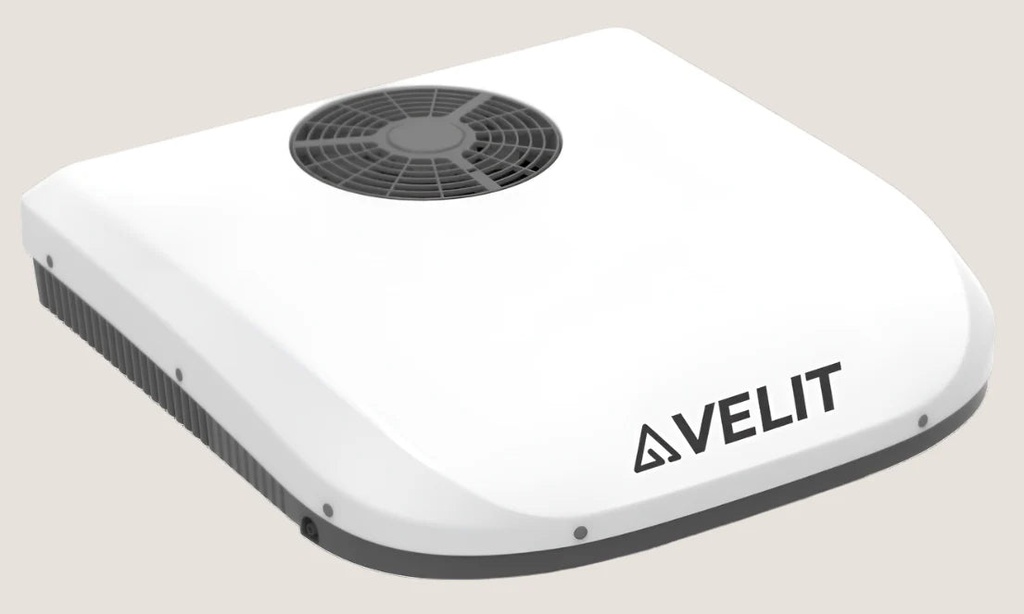

Velit 3000R Rooftop Air Conditioner 24/48V
SKU:
2022323582
Velit 3000R Rooftop Air Conditioner 24/48V
TEC SPECS
Model | 3000R |
Input Voltage | DC24V/48V |
Operating Current | 13-40A/8-25A |
Cooling Capacity | 10000/12000BTU |
Air Flow Rate | 250 CFM |
Rated Power | 960W/1200W |
Refrigerant | R410a 470g |
Power Consumption | Eco mode: 300-400W Turbo mode: 900-1200W |
Noise Level | Eco mode: 55dB Boost mode:65dB |
Roof Unit Dimension | W35.8”*L35.4”*H7” |
ADB Dimension | W20”*L19.7”*H2” |
Weight | 75lb |
Download User Manual
Inside the box:
- AC unit
- Mounting brackets
- Sealing gasket
- Mounting hardware
- Interior trim panel
- Remote
- 15ft wiring harness with in-line fuse (12AWG for 48V)
- User manual
* One-year limited warranty
The Velit 3000R stands as our most powerful DC air conditioner to date. Equipped with a high-output tuned twin-cylinder rotor compressor, it delivers an impressive 12000 BTU of cooling capacity at 48V, while drawing as little as 6A. The unit features a flush-mount motorized air distribution box for optimal air circulation throughout the space. With a slim profile requiring only 7 inches of clearance, it fits seamlessly into standard 14x14 rooftop cutouts.
This is a complete kit. For van installs or other uneven surfaces, you need to purchase the sealant separately. Sealant is not required for flat surface installs such as RV roofs.
Width: 62.79" (1595mm)
Crossbar Length: 62.40" (1585mm)
130 HR Transit: 104.72" (266.0cm)
148 MR Transit: 132.3" (336.0cm)
148 HR Transit: 81.9" (308.0cm)
148 HR EXT Transit: 150.4" (382.0cm)
Lengths by Vehicle:
Internal Width: 62.22" (1555mm)
130 Transit: 49 lbs
148 Transit: 58 lbs
148 EXT Transit: 74 lbs
