Victron Energy BMV-712 Smart Battery Monitor

Smart Monitoring for Maximum Battery Performance

The Victron BMV-712 Smart is a high-precision battery monitor designed to provide complete insight into your battery system’s health and performance. It measures voltage and current, calculates the state of charge (SoC) and remaining time, and records valuable historical data such as deepest discharge, average discharge, and total charge cycles.

Key Features

  • Accurate Monitoring: Measures battery voltage, current, power, and ampere-hours consumed.

  • State of Charge & Remaining Time: Calculates real-time SoC and estimated runtime based on consumption.

  • Bluetooth Connectivity: Built-in Bluetooth allows easy setup and monitoring via the VictronConnect app.

  • VE.Direct Communication Port: Enables connection to other Victron devices and data transfer via USB (optional cable required).

  • Midpoint or Second Battery Monitoring: The auxiliary input can monitor midpoint voltage, a second battery, or temperature (with optional sensor).

  • Historical Data Tracking: Records detailed usage data to evaluate performance and battery health over time.

  • Programmable Relay: Automatically manage loads or generators based on battery conditions.

  • Visual & Audible Alarms: Set custom alarms for low voltage, overcurrent, or other parameters.

  • Low Power Consumption: Draws less than 1 mA @12V, preserving battery charge when idle.

  • Expandable Shunt Range: Standard 500A shunt included; supports custom shunts up to 10,000A.

Connectivity & Integration

  • Bluetooth Built-In: View and configure data wirelessly via smartphone, tablet, or computer.

  • VictronConnect App:

    • Customize settings

    • View all key data on one screen

    • Access historical data

    • Update firmware with new features

  • GX Device Compatibility: Connect to Cerbo GX, Color Control GX, or VRM Portal for remote system monitoring.

  • VE.Smart Networking: Shares real-time battery data (voltage, current, temperature) with Victron solar and AC chargers.

Installation & Included Accessories

  • Plug-and-play setup with RJ12 cable (10 m) and fused battery cable (2 m).

  • 500A quick-connect shunt and connection kit included.

  • Includes front bezels (round & square), mounting ring, and installation screws.

  • Compact design, easy to mount and configure.

Technical Specifications

  • Input Voltage Range: 6.5 – 70 V

  • Current Measurement Resolution: 10 mA (0.01 A)

  • Power Consumption: 0.6–0.7 Ah per month

  • Alarm Relay: Bi-stable to prevent unnecessary current draw

  • Historical Memory: Stores usage patterns and events for analysis

Why Choose the BMV-712 Smart

With advanced monitoring, ultra-low power draw, and full Bluetooth integration, the BMV-712 Smart helps you extend battery lifespan, optimize energy use, and prevent costly damage.

It’s the ideal battery management solution for marine, RV, off-grid, and solar applications.

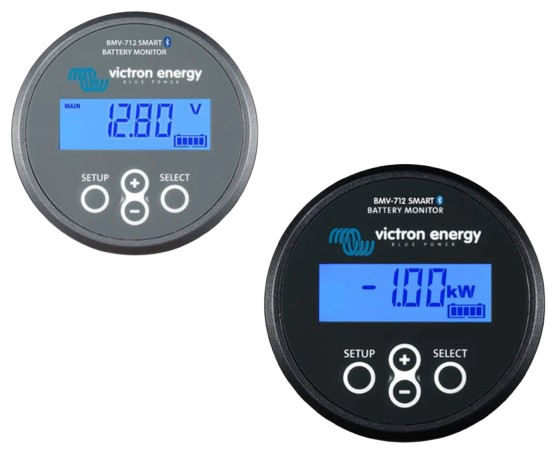

Version Black - BAM030712200 or Grey - BAM030712000
