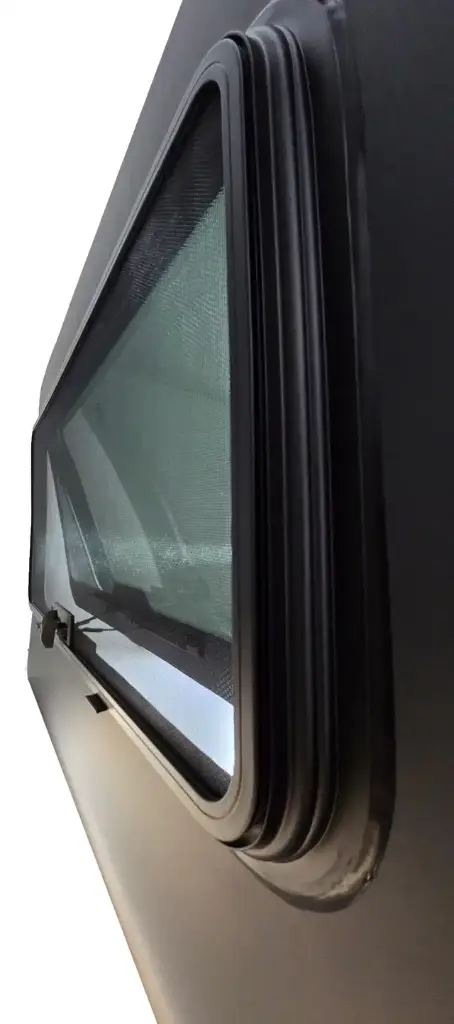

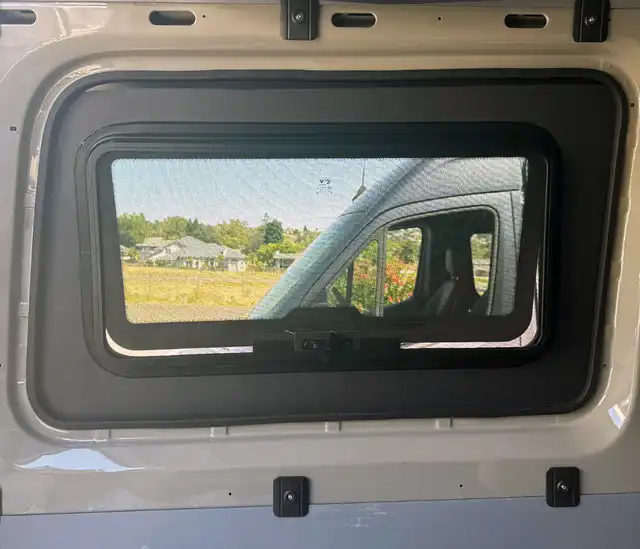

VWD Crank-Out Awning Van Window (SL103-CA)

VWD Crank-Out Awning Van Window (SL103-CA)

SKU: SL103-CA

Product Overview

The VWD SL103-CA Crank-Out Awning Window is designed for the Mercedes-Benz Sprinter Van (170 & 170EXT wheelbase) driver-side rear quarter position. It provides controlled ventilation in all weather conditions, enhanced privacy with solar tint glass, and a seamless OEM-style all-glass exterior finish.

Built for van conversions, this window uses a urethane-bonded installation system for a durable, sealed, professional-grade fit.

Key Features

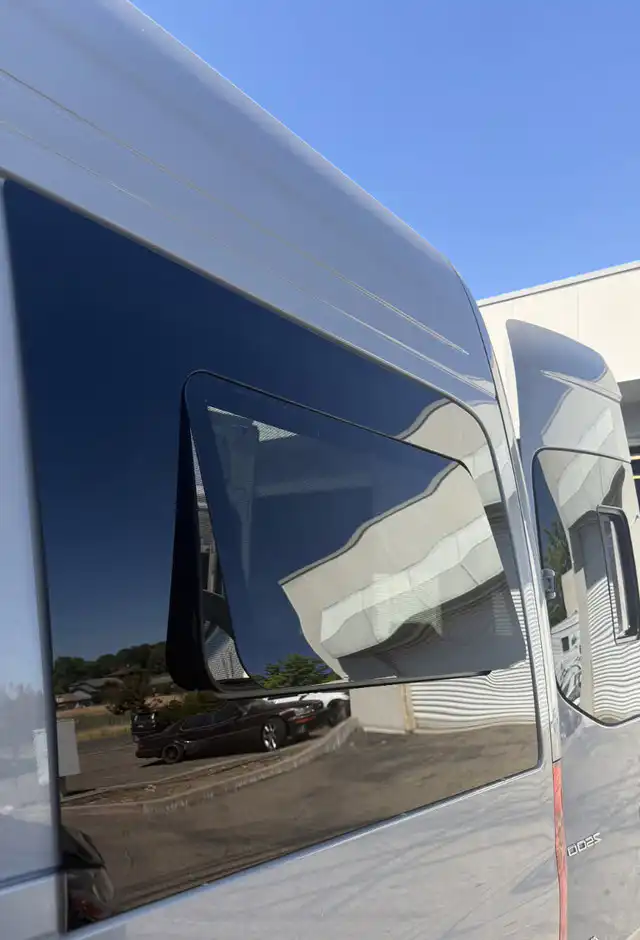

• Crank-out awning operation allows ventilation even during rain
• 17% solar privacy glass for UV reduction and daytime privacy
• Designed for Sprinter 170 & 170EXT wheelbase vans
• Clean OEM-style all-glass exterior appearance
• Urethane-bonded installation for maximum sealing strength
• Built for van conversion applications
• 1-year manufacturer warranty

Fitment

• Vehicle: Mercedes-Benz Sprinter Van
• Wheelbase: 170 & 170EXT
• Roof Compatibility: High roof or low roof

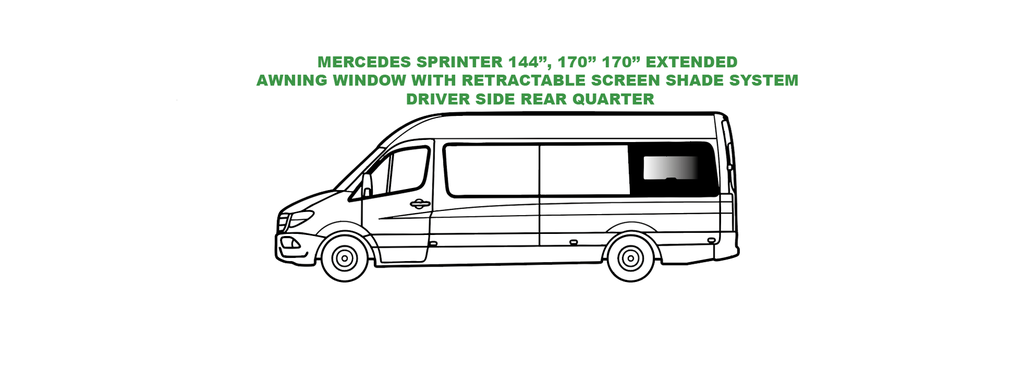

• Position: Driver-side rear quarter panel
• Model Application: Verify cutout position prior to installation

Specifications

• Model: SL103-CA

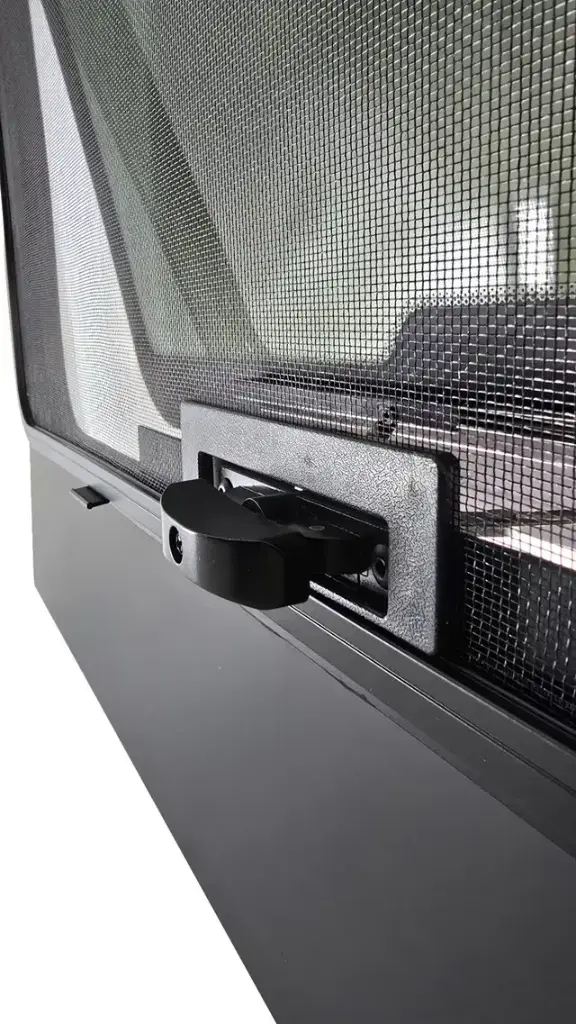

• Window Type: Crank-Out Awning
• Overall Dimensions: 50.79 in × 30.24 in (1290 mm × 768 mm)
• Opening Dimensions: 33.82 in × 16.65 in (859 mm × 423 mm)
• Maximum Opening: Up to 3 in (76 mm)
• Glass Type: Solar privacy glass (17% tint)
• Installation Method: Urethane bonded

Installation

This window requires a urethane adhesive bonding process:

• Prepare and clean cutout surface thoroughly
• Dry-fit window before final installation
• Apply primer and automotive-grade urethane
• Set and align window carefully
• Secure and tape in place during curing
• Do not operate vehicle until full cure time is reached per urethane manufacturer specifications

Warranty

• 1-Year Manufacturer Warranty

Important notice ! ! !

Delivery delays may apply. If the window is not in stock, a minimum delivery time of 2 to 3 weeks is required, subject to supplier availability.

It is the customer’s responsibility to contact us to verify item availability prior to purchase.

In the event of an unjustified refund request, a 15% fee may be charged.

At Canada RV, we apply the supplier's warranty.
