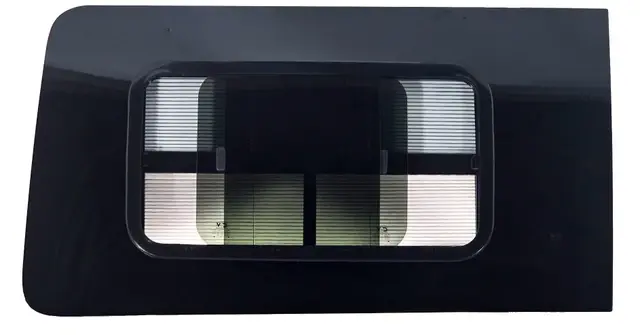

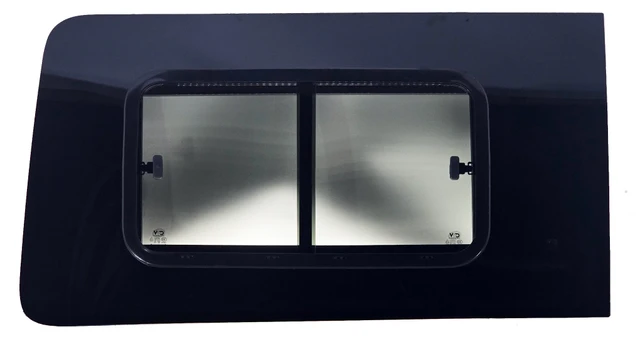

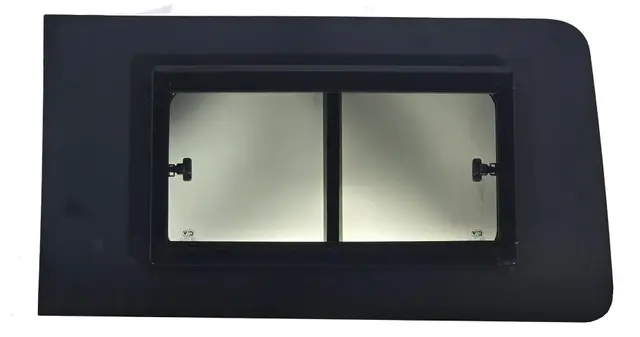

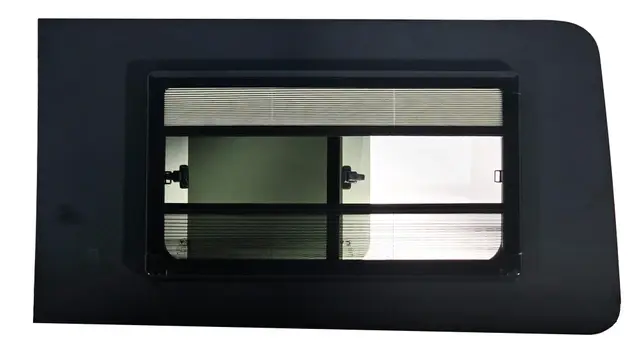

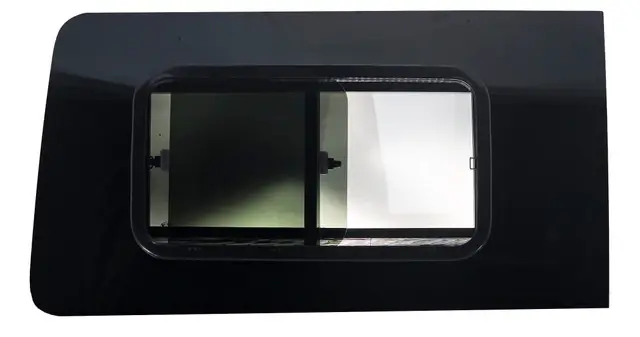

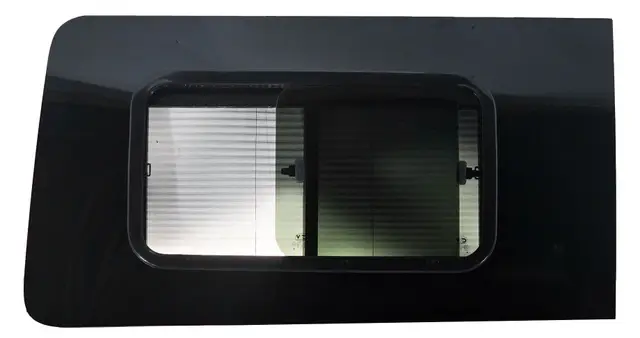

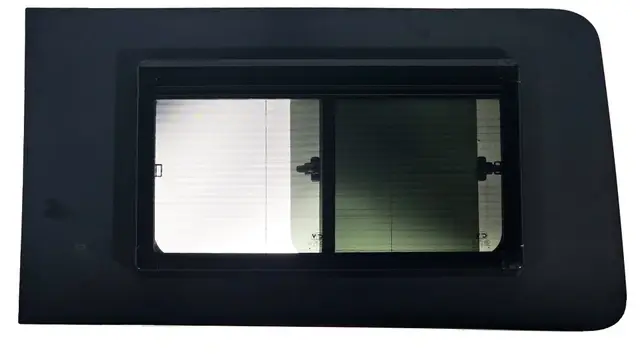

VWD Double-Sliding Van Window

The VWD TL201-DS is a double-sliding window designed for the forward driver-side position of Ford Transit vans from 2015–2026 with Medium or High Roof configurations. Both panels slide independently, allowing the front, rear, or both sections to open for flexible ventilation. It features solar privacy glass, an integrated bug screen, and a retractable shade for improved airflow, privacy, and comfort.

FEATURES

• Two independently sliding panels for adjustable ventilation
• Solar privacy glass with 12% UV rating and approximately 88% UV blocking
• Integrated bug screen for ventilation without insects

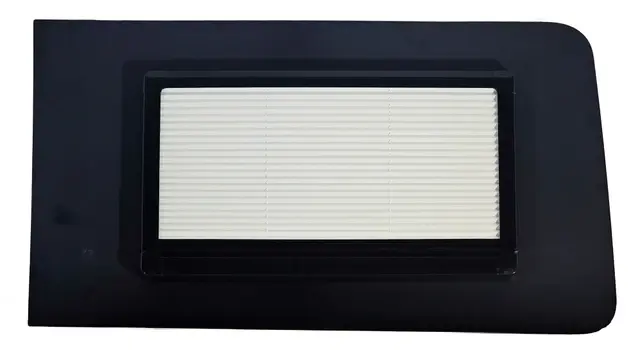

• Integrated retractable shade for privacy and light control
• Urethane-bonded installation for a sealed, factory-style finish
• 1-year warranty

FITMENT & SPECIFICATIONS

• Vehicle: Ford Transit Van
• Model years: 2015–2026
• Roof: Medium or High Roof
• Wheelbase: 130", 148", or 148" Extended
• Position: Driver Side Forward
• Overall dimensions: 53.82" × 29.17" (1367 × 741 mm)
• Slider opening: 13.0" × 15.9" (330 × 403 mm)
• Viewable glass: 31.1" × 15.9" (790 × 403 mm)
• Internal frame depth: 2 9/16" (65 mm)
• Installation: Urethane bonded

INSTALLATION

This window requires cutting a portion of the inner stamped sheet metal on compatible Ford Transit Medium and High Roof vans. The cut edges must be deburred and protected before installing the window with automotive urethane. Always verify the actual vehicle and window before cutting; the manufacturer's illustrated cut lines are for reference and are not an exact cutting template.
