EcoFlow 30A/50A Distribution Panel

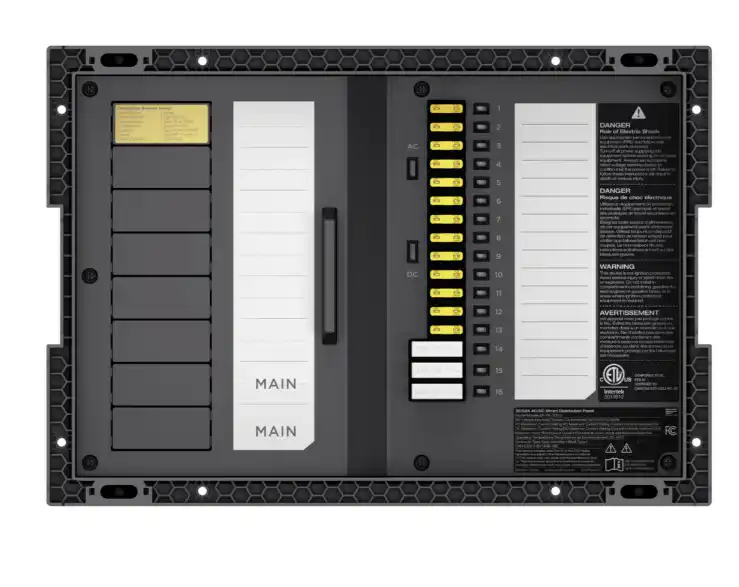

EcoFlow 30A/50A AC/DC Smart Distribution Panel – Gen 2

The EcoFlow 30A/50A Smart Distribution Panel centralizes the management of AC and DC power for RVs, camper vans, and off-grid power systems. Compatible with both EcoFlow Gen 1 and Gen 2 Power Hubs, it supports 120V or 240V AC and 12V or 24V DC systems, making it an ideal solution for custom electrical installations.

Features

• Compatible with EcoFlow 5 kVA (Gen 2) and 3.6 kW (Gen 1) Power Hubs
• Supports 120V single-phase and 120/240V split-phase AC systems
• Compatible with 12V and 24V DC outputs
• Up to 12 AC branch circuits
• Up to 16 controllable DC circuits
• AC input/output rated up to 50A
• Includes three 40A DC fuses
• Safe, organized power distribution with easy installation
• 5-year limited warranty

Specifications

• AC Input: 50A max., 120/240V, 60Hz
• AC Output: 30A max. per branch circuit
• AC Circuits: Up to 12
• DC Input: 100A max. (13V / 26V)
• DC Output: 30A (F1–F13), 50A (F14–F16)
• Maximum DC Circuits: 16
• Short-Circuit Rating: 10 kA
• Operating Temperature: -25°C to 45°C
• Dimensions: 390 × 135 × 270 mm (15.3 × 5.3 × 10.6 in.)
• Weight: 4 kg (8.8 lb)
• Enclosure Rating: NEMA Type 1

Installation

• Designed for use with EcoFlow Power Kits. Supports both 30A and 50A shore power installations. Most camper van and RV applications are well suited to a 30A configuration. Circuit breakers are not included; three 40A DC fuses are supplied. Refer to the EcoFlow user manual for compatible AC circuit breakers.
