STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - (MID TUNE & HEAVY TUNE) - Van Compass

If your 2018+ Ford Transit RWD is hauling extra weight—like a camper conversion, overland gear, or additional seating—the Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - MID TUNE (7115-M) is the perfect suspension upgrade. This kit is designed to provide a true 2-inch lift, enhanced ride comfort, and improved handling across varied terrain—all while supporting the demands of a moderately loaded van.

At the front, a 0.75” lift camber correction plate and mid-tuned coil springs deliver approximately 1.25” of lift and increased compression travel. This setup improves front-end handling, reduces body roll, and adds confidence when driving on rough roads or in windy conditions.

In the rear, a 5-leaf mini spring pack works alongside the factory leaf springs to increase the spring rate by 10–15%, fighting rear sag without sacrificing ride quality. This addition provides 2.0” to 2.5” of rear lift, depending on the vehicle's existing weight. Each leaf spring features friction-reducing tips for quiet, smooth articulation.

Rear shock relocation brackets are included to allow trimming of the factory brackets, improving ground clearance under the axle tube—ideal for trail use or rocky terrain.

This Stage 3 system includes VC-tuned Falcon 2.1 Monotube Rear Shocks, which feature a large-diameter piston for better damping performance. These shocks minimize harsh impacts, reduce sway and corner lean, and enhance ride control whether you’re on pavement or dirt.

Paired with Bilstein B6 front struts, this kit delivers a balanced, responsive ride with improved stability and reduced bottoming-out under load.

Note: A professional alignment is required after installation to prevent abnormal tire wear and ensure optimal handling.

• True 2” suspension lift for Ford Transit RWD (2018+)

• Ideal for moderately loaded vans (passenger vans, light camper builds, work vans)

• Mid-tune front springs offer a perfect balance of comfort and control

• 5-leaf mini spring pack increases rear spring rate by 10–15%

• VC-Tuned Falcon 2.1 Monotube Rear Shocks improve handling and comfort

• Bilstein B6 Front Struts enhance front-end damping performance

• Improved ground clearance with high-clearance rear shock brackets

• Reduced rear sag and better load management without harsh ride penalty

• Enhanced control over rough terrain, potholes, and broken pavement

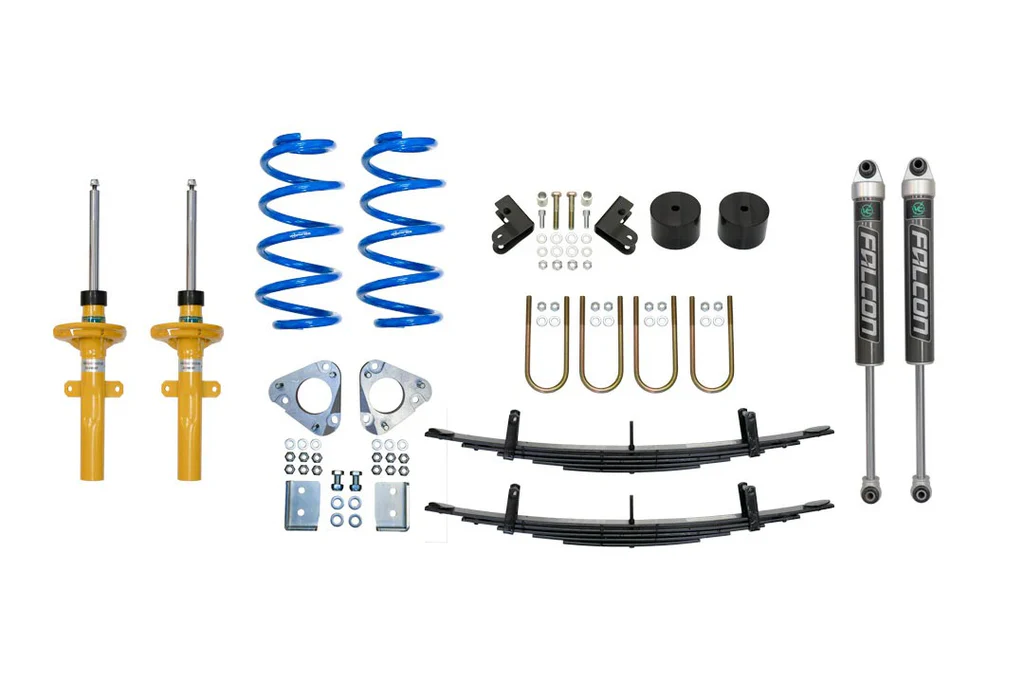

Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - MID TUNE (7115-M) Included :

• TOPO 2.0 Front Lift Kit

• Bilstein B6 Front Strut Kit (1 pair)

• VC-Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)

• 5-Leaf Rear Mini Spring Pack & Bump Stop Spacers

• High Clearance Rear Shock Relocation Brackets

• All required mounting hardware

• Ford Transit RWD (2018+)

• Compatible with Single Rear Wheel (SRW) and Dual Rear Wheel (DRW)

• Best suited for:

  • Mid-weight camper builds

  • Passenger vans

  • Light commercial upfits

• Up to 265/75/16

  • May require minor trimming of inner pinch weld

  • Increases ground clearance to approx. 12.75” at front crossmember

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit RWD (2013+) Stage 3 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD Front suspension overview

If you're carrying significant weight in your 2018+ Ford Transit RWD—like a fully built camper van, commercial upfit, or expedition rig—the Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - HEAVY TUNE (7115-H) is engineered to meet your needs. This system provides a true 2-inch suspension lift while significantly improving ride comfort, stability, and off-road capability under heavy loads.

This heavy-duty system features a precision-engineered 0.75” lift camber correction plate paired with heavy-tuned front coil springs, adding approximately 1.25” of front lift and increasing compression travel. The result is better ride control, improved handling, and reduced body roll—even when loaded to capacity.

At the rear, a 5-leaf mini spring pack supplements the factory leaf springs to increase rear spring rate by 10–15%, offering 2.0" to 2.5" of rear lift, depending on your van's weight. The additional leaves feature friction-reducing tips to ensure quiet, smooth articulation—even under extreme weight.

Rear shock relocation brackets are included, allowing trimming of the factory brackets for increased ground clearance under the axle tube—critical for off-road and overland travel.

This Stage 3 system comes equipped with Van Compass-tuned Falcon 2.1 Monotube Rear Shocks, specifically calibrated for heavy loads. These premium dampers feature large-diameter pistons and high-pressure gas to control bounce, reduce sway, and soften harsh terrain—ensuring a stable, predictable ride no matter the road or load.

Paired with Bilstein B6 Front Struts, this system provides balanced performance and enhanced damping control throughout your van’s suspension travel.

Note: A professional alignment is required after installation to ensure proper tire wear and handling characteristics.

• True 2” lift for Ford Transit RWD (2018+)

• Designed for heavily loaded vans (full camper conversions, heavy cargo, overland builds)

• Heavy-tune front coils increase support without sacrificing ride quality

• 5-leaf rear mini pack boosts spring rate and fights sag

• VC-tuned Falcon 2.1 Monotube Rear Shocks built for heavy-duty performance

• Bilstein B6 Front Struts improve front-end damping and handling

• Improved approach, breakover, and departure angles

• Reduced sway and corner lean for a more planted feel

• Smoother handling over rough roads, potholes, and uneven terrain

Van Compass STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - HEAVY TUNE (7115-H) Included :

• TOPO 2.0 Front Lift Kit

• Bilstein B6 Front Strut Kit (1 pair)

• VC-Tuned Falcon 2.1 Monotube Rear Shocks (1 pair)

• 5-Leaf Rear Mini Spring Pack & Bump Stop Spacers

• High Clearance Rear Shock Relocation Brackets

• All necessary hardware for installation

• Ford Transit RWD (2018+)

• Compatible with Single Rear Wheel (SRW) and Dual Rear Wheel (DRW)

• Ideal for:

  • Full camper van builds

  • Overland rigs with gear and water tanks

  • Heavy commercial upfits

• Up to 265/75/16

  • May require minor trimming of inner pinch weld

  • Achieves approx. 12.75” ground clearance at front crossmember

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Rear Leaf Pack Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit RWD (2013+) Stage 3 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD Front suspension overview
