STAGE 3 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - (MID TUNE & HEAVY TUNE) - Van Compass

Upgrade your 2018+ Ford Transit RWD with the Van Compass Stage 3 TOPO 2-Inch Lift Kit, designed to improve suspension performance, load support, ground clearance, and ride control. Available in Mid Tune and Heavy Tune, this system is engineered for Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) Transit builds, from moderately loaded camper and passenger vans to fully equipped overland and commercial vehicles.

FEATURES & INCLUDED COMPONENTS

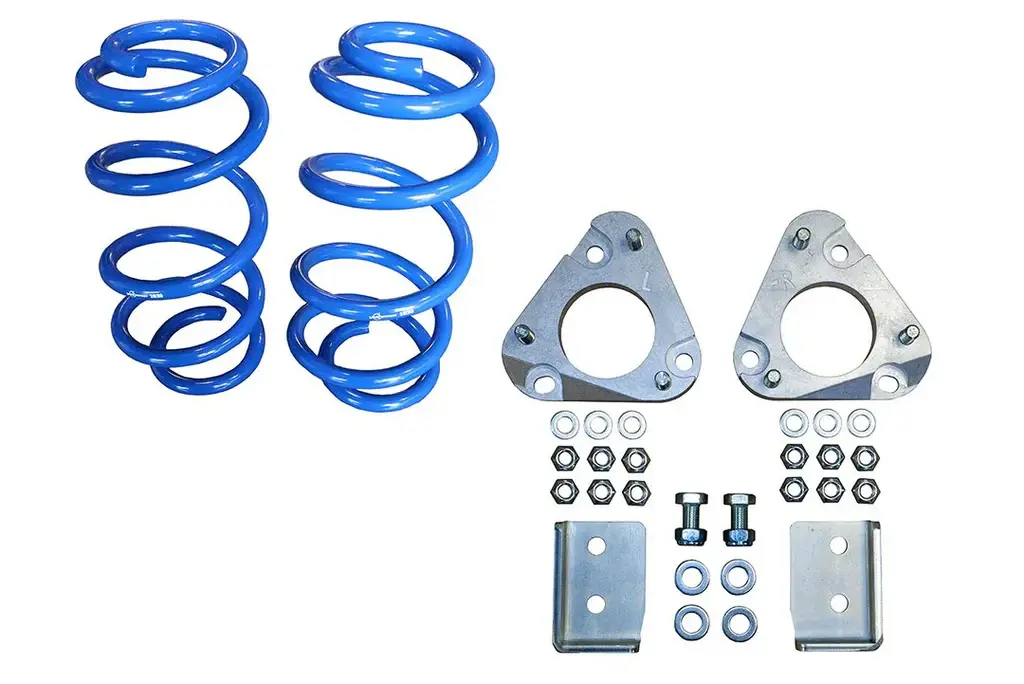

• True 2" suspension lift with a 0.75" camber correction plate and tuned front coil springs providing approximately 1.25" of front lift and increased compression travel.

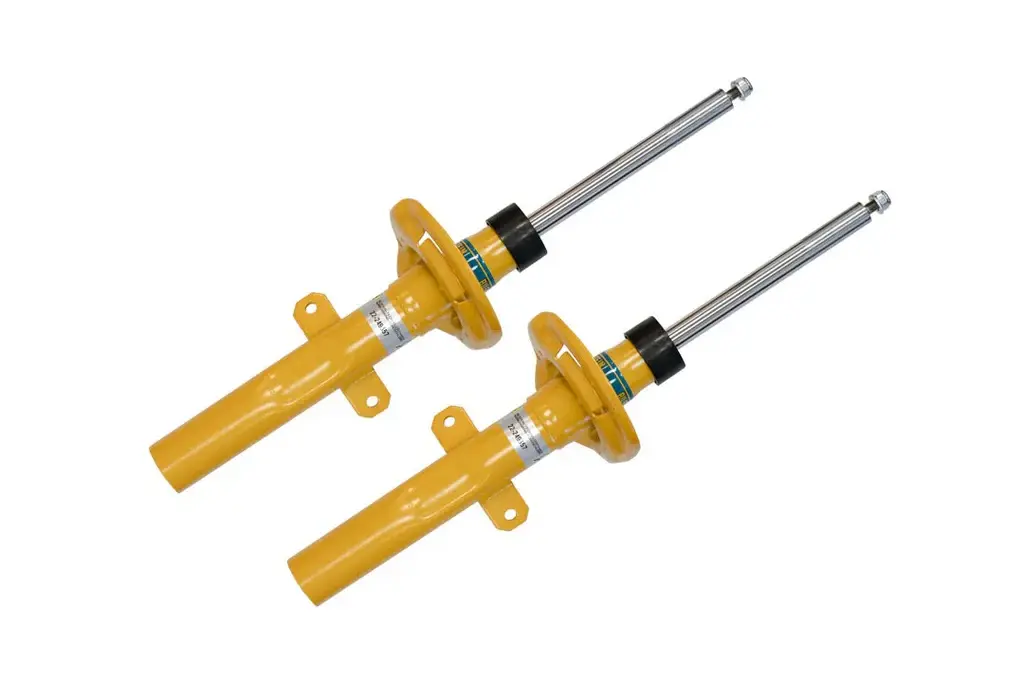

• Bilstein B6 front struts improve front-end damping, stability, and handling.

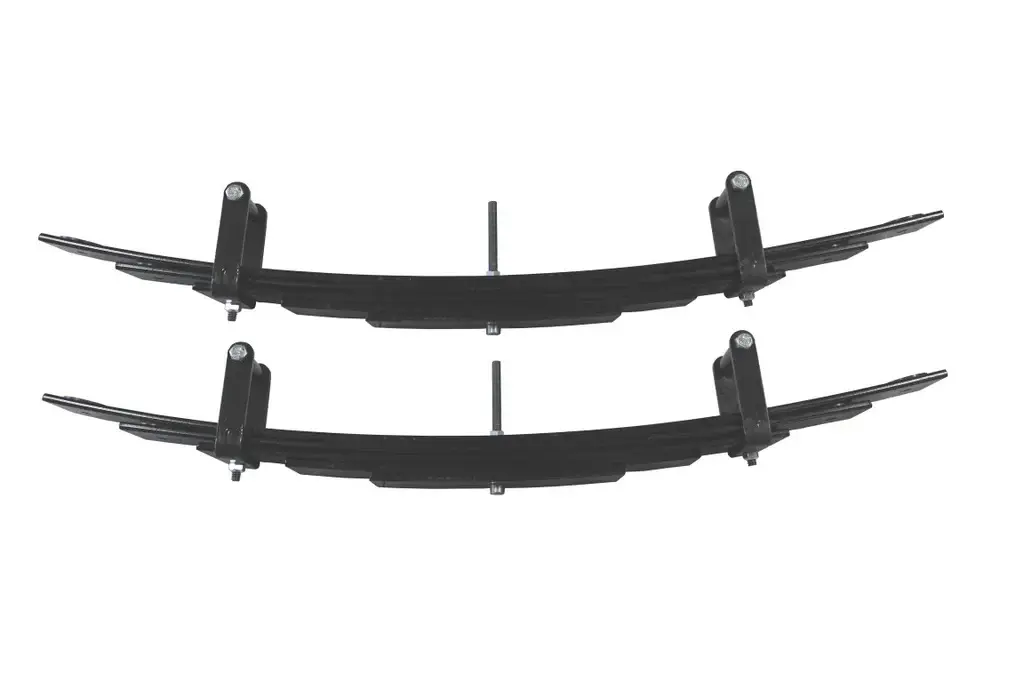

• 5-leaf rear mini spring pack works with the factory leaf springs, increasing rear spring rate by 10–15% and providing approximately 2.0–2.5" of rear lift, depending on vehicle weight.

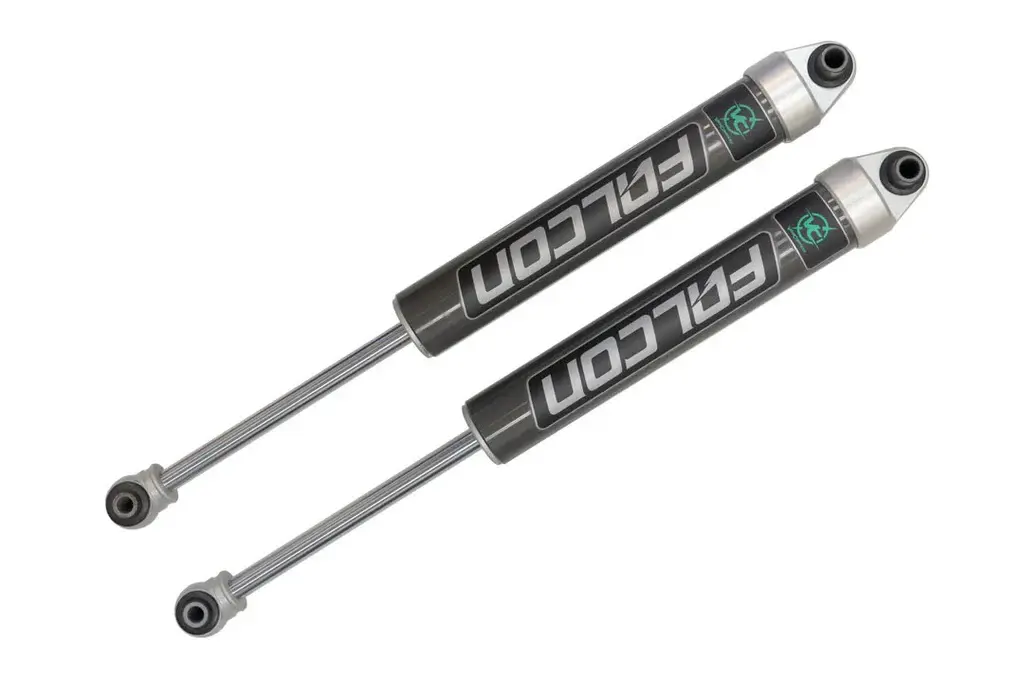

• VC-tuned Falcon 2.1 monotube rear shocks with large-diameter pistons provide improved damping and control.
• High-clearance rear shock relocation brackets improve clearance beneath the axle tube; bump stop spacers are included.
• Friction-reducing leaf tips provide quieter, smoother suspension articulation.

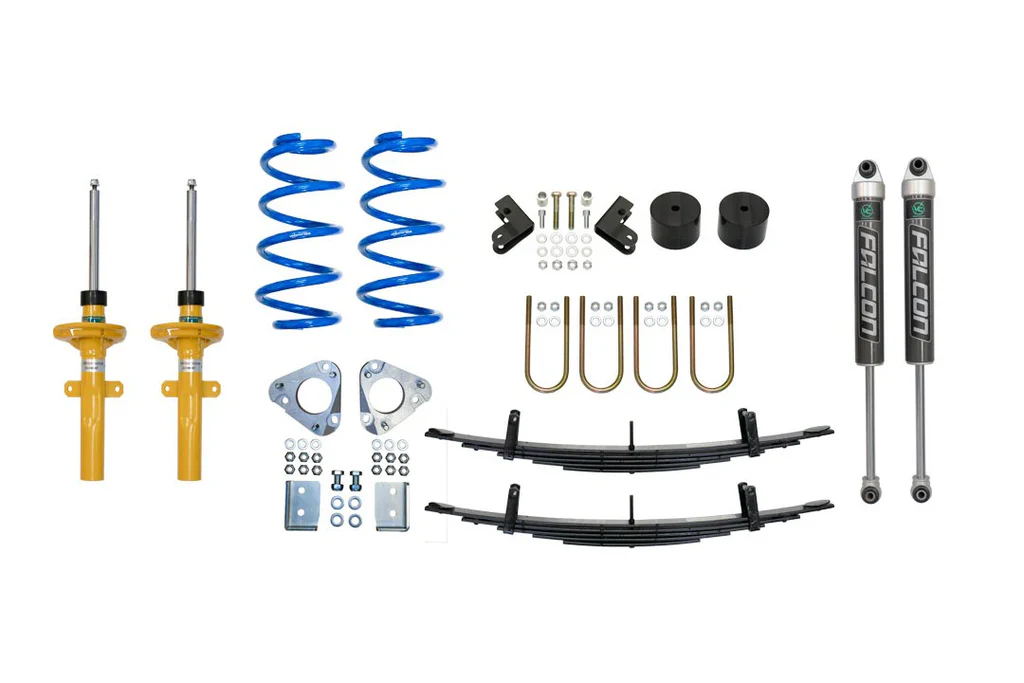

• Includes the TOPO 2.0 front lift kit, Bilstein B6 front struts, Falcon 2.1 rear shocks, 5-leaf mini spring pack, bump stop spacers, shock relocation brackets, and required hardware.

TUNE OPTIONS, FITMENT & INSTALLATION

• Mid Tune (7115-M): Designed for moderately loaded Transit builds, including passenger vans, mid-weight camper conversions, and light commercial upfits.
• Heavy Tune (7115-H): Designed for heavily loaded vehicles, including full camper conversions, overland builds with additional gear or water tanks, and heavy commercial upfits.
• Fitment: 2018+ Ford Transit RWD, compatible with SRW and DRW configurations.
• Tire size: Up to 265/75R16; minor trimming of the inner pinch weld may be required. With this tire size, ground clearance reaches approximately 12.75" at the front crossmember.
• Professional wheel alignment is required after installation to ensure proper handling and tire wear.
• Special order: Non-exchangeable and non-refundable. Allow 2–4 weeks for processing and shipping.
