Transform your Ford Transit’s stance and performance with the Van Compass TOPO 2 INCH FRONT AND REAR LIFT KIT - FORD TRANSIT 2015-2017, BLUE COIL (7095), designed to deliver a true 2-inch suspension lift for 2015–2017 Transit models. Whether your van is RWD or AWD, single-rear-wheel (SRW) or dual-rear-wheel (DRW), this kit boosts ground clearance and ride quality while retaining factory alignment specs and OE comfort.

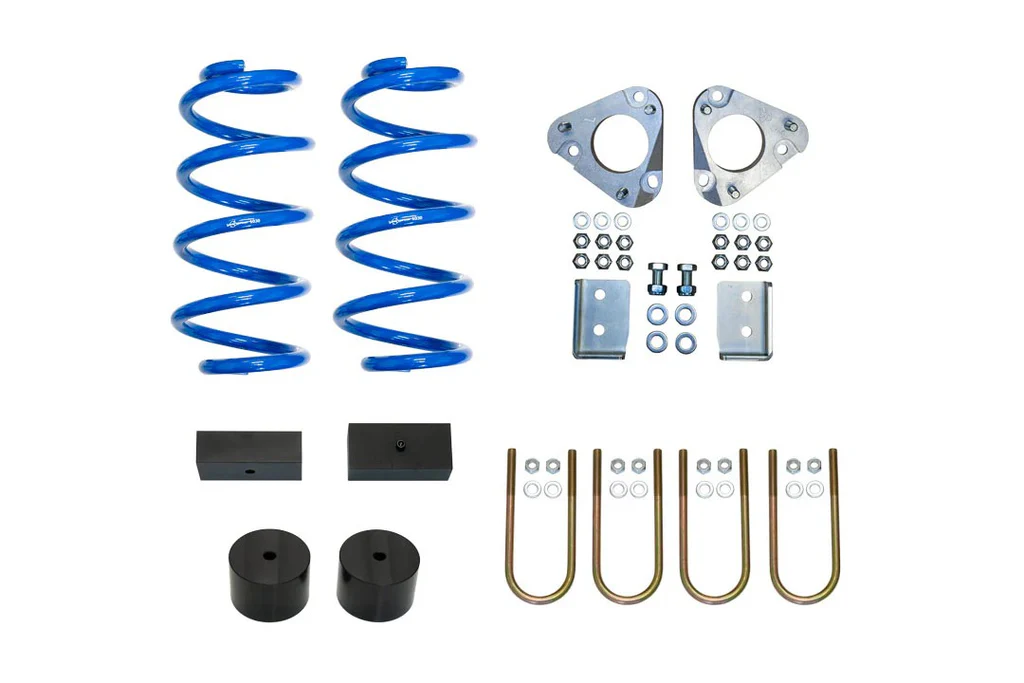

The TOPO 2.0 kit is specifically engineered to address the unique packaging and CV shaft constraints of the AWD platform, while also being fully compatible with RWD models. It includes two key components that work together to deliver a smooth, true 2-inch lift:

• 1" Blue Coil Springs – These carefully tuned springs retain the factory spring rate, preserving the van’s OE ride feel while lifting the front end by 1". Positioned higher in the suspension travel, they also allow for 1" of additional compression travel.

• Van Compass Custom Spacer – Specially designed for the Ford Transit’s front suspension geometry, this spacer safely and effectively adds to the lift without compromising drivability.

For RWD Transits, pairing this kit with the optional Bilstein B6 struts (sold separately) can add an extra 0.5" of lift and significantly enhance damping control. The B6 struts feature a spring perch 0.5" higher than OEM, effectively preloading the spring for additional lift and stability. This combo delivers an impressive 12.75" of ground clearance under the front crossmember when running larger tires.

Note:

Bilstein B4 and B6 struts are not recommended for AWD Transits. The slightly longer strut body (~0.25") increases droop travel, which may place the passenger-side CV joint in a mild bind, potentially reducing CV lifespan. Use at your own risk on AWD models.

This kit allows fitment of up to 265/75R16 tires, offering increased traction and off-road performance. Some minor trimming of the inner pinch seam may be required, as detailed in the included installation guide.

• Typical front lift achieved is around 1.25" depending on vehicle weight

• Not recommended for use with Bilstein B4 or B6 on AWD models

• Full installation instructions and hardware included

• True 2" front and rear suspension lift

• Compatible with 2015–2017 Ford Transit (RWD & AWD, SRW & DRW)

• Blue coil springs maintain factory spring rate and comfort

• Custom spacer engineered specifically for Transit front geometry

• Optional Bilstein B6 strut adds lift and improved damping for RWD vans

• Supports up to 265/75R16 tires (with minor trimming)

• Improved ground clearance and stance

• Maintains proper alignment and suspension geometry

2015+ Transit Topo Front Kit Installation Instructions

2015+ Transit Topo Rear Kit Installation Instructions

Video: Van Compass Ford Transit Topo 2.0 (2015-Present) Front and Rear Lift Kit (Single or Dual Rear Wheel)
