STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - (MID TUNE & HEAVY TUNE) - Van Compass

Upgrade the ride quality, stance, and off-road capability of your Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - MID TUNE (7111-M). Designed specifically for stock passenger vans, light camper conversions, and dual rear wheel work vans, this system delivers a true 2" suspension lift while maintaining factory alignment specs and dramatically improving overall ride comfort.

The Stage 1 TOPO kit is engineered to clear larger tires, improve ground clearance, and enhance stability—on pavement and off-road.

The TOPO Stage 1 kit features a custom-tuned front coil spring and precision-machined 0.75" camber-correction plate, resulting in 1.25” of front lift and increased compression travel. Paired with the Bilstein B6 struts, which offer an additional 0.5” of lift and superior damping, your front suspension is optimized for both comfort and control.

Rear lift is accomplished using 2" billet aluminum blocks, while the Falcon 2.1 Monotube Rear Shocks, tuned specifically for this application, absorb harsh impacts and reduce sway, bounce, and side-to-side jostling over uneven terrain. Rear shock relocation brackets further protect the shock shafts by improving ground clearance and positioning.

Note: A professional alignment must be performed after installation to avoid tire wear and handling issues.

• True 2" Lift Height – Delivers improved ground clearance and room for up to 265/75/16 tires

• Maintains Factory Geometry – Camber-correcting design retains alignment specs

• VC-Tuned Falcon 2.1 Rear Shocks – Large 2.35” piston provides superior damping and control

• Bilstein B6 Front Struts – Improve ride quality with additional lift and optimized coil spring preload

• High Clearance Rear Shock Brackets – Protect vulnerable shock components

• Improved Ride Comfort – Reduces harshness, bounce, and sway on rough roads

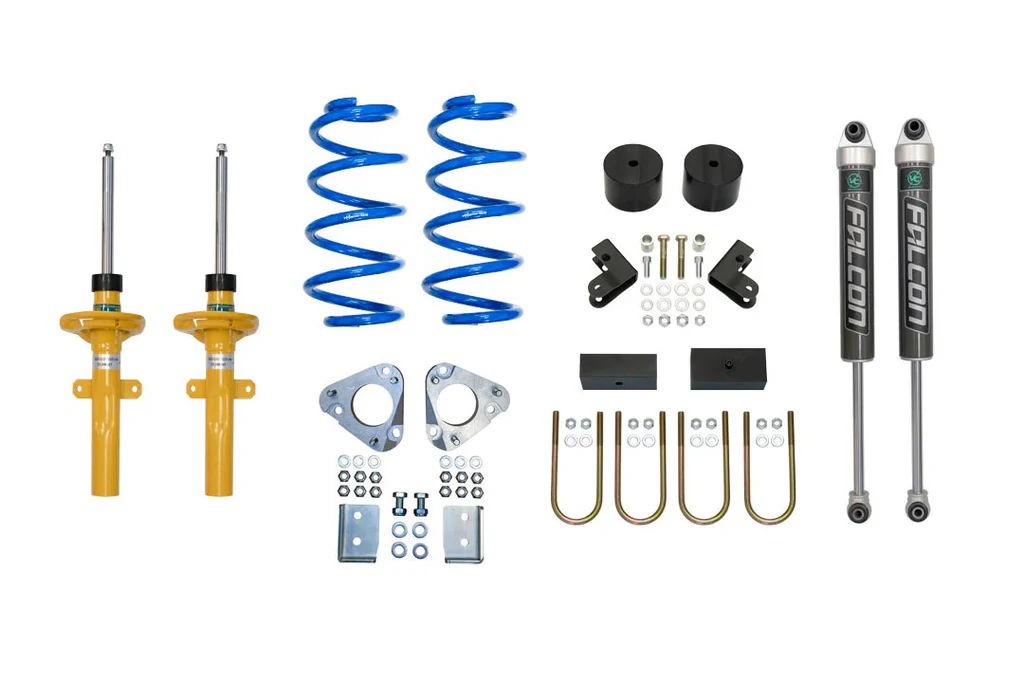

Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - MID TUNE (7111-M) Included:

• TOPO 2.0 Front and Rear Lift Kit

• Bilstein B6 Front Strut Kit (1 Pair)

• Tuned Falcon 2.1 Monotube Rear Shocks (1 Pair)

• High Clearance Rear Shock Brackets

• All necessary hardware and detailed installation instructions

• Compatible with: 2018+ Ford Transit RWD, Single & Dual Rear Wheel

• Mid Tune: Ideal for stock vans, light camper builds, and DRW work vans

• Up to 265/75/16 (may require slight trimming of the inner pinch seam – detailed in the instructions)

• Achieves 12.75" of ground clearance under the front crossmember with this setup

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit RWD (2013+) Stage 1 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview

Built to handle the demands of Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - HEAVY TUNE (7111-H) is the ultimate suspension upgrade for your 2018+ Ford Transit RWD. Designed for single and dual rear wheel configurations, this system delivers a true 2” suspension lift, optimized for heavier payloads while improving ride quality, ground clearance, and stability—on and off the road.

The HEAVY TUNE version of our TOPO kit includes tuned front coil springs with increased spring rate to support the added weight of built-out adventure vans or work vans packed with gear. Combined with a 0.75” camber-correcting plate, the front suspension achieves 1.25” of lift, with the Bilstein B6 front struts providing an additional 0.5” of lift and improved damping control.

Rear lift is achieved using 2” billet aluminum lift blocks, and the ride is dialed in using Falcon 2.1 Monotube Rear Shocks, tuned by Van Compass to control heavier loads while reducing body roll, sway, and harsh impacts.

High-clearance rear shock brackets relocate and protect the shock shaft from trail damage, improving ground clearance and shock longevity.

Note: A professional alignment is required after installation to maintain safe handling and tire wear.

• True 2" Lift Height – Adds clearance for up to 265/75/16 tires (minor trimming may be required)

• Engineered for Heavy Loads – Tuned coil spring and dampers handle high GVWR setups

• Bilstein B6 Front Struts – Provide additional lift and superior damping for front-end control

• Falcon 2.1 Rear Monotube Shocks (VC Tuned) – Handle increased weight with better damping

• Improved Stability – Reduces sway, bounce, and roll over rough or uneven terrain

• High Clearance Rear Shock Relocation Brackets – Protect critical components from trail obstacles

Van Compass STAGE 1 TOPO 2 INCH LIFT KIT - FORD TRANSIT 2018+ - HEAVY TUNE (7111-H) Included :

• TOPO 2.0 Front and Rear Lift Kit

• Bilstein B6 Front Strut Kit (1 Pair)

• Tuned Falcon 2.1 Monotube Rear Shocks (1 Pair)

• High Clearance Rear Shock Brackets

• All necessary hardware and detailed instructions

• Designed for: 2018+ Ford Transit RWD, Single and Dual Rear Wheel

• HEAVY TUNE: Ideal for fully built camper vans, upfitted work vans, or high-weight cargo setups

• Recommended Max Tire Size: 265/75/16

  • May require minor trimming of inner pinch seam

  • Achieves 12.75” of ground clearance under front crossmember with this setup

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 2.1 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Video: Van Compass Ford Transit RWD (2013+) Stage 1 Topo 2.0 System (Single or Dual Rear Wheel)

Video: 2020 Ford Transit AWD front suspension overview
