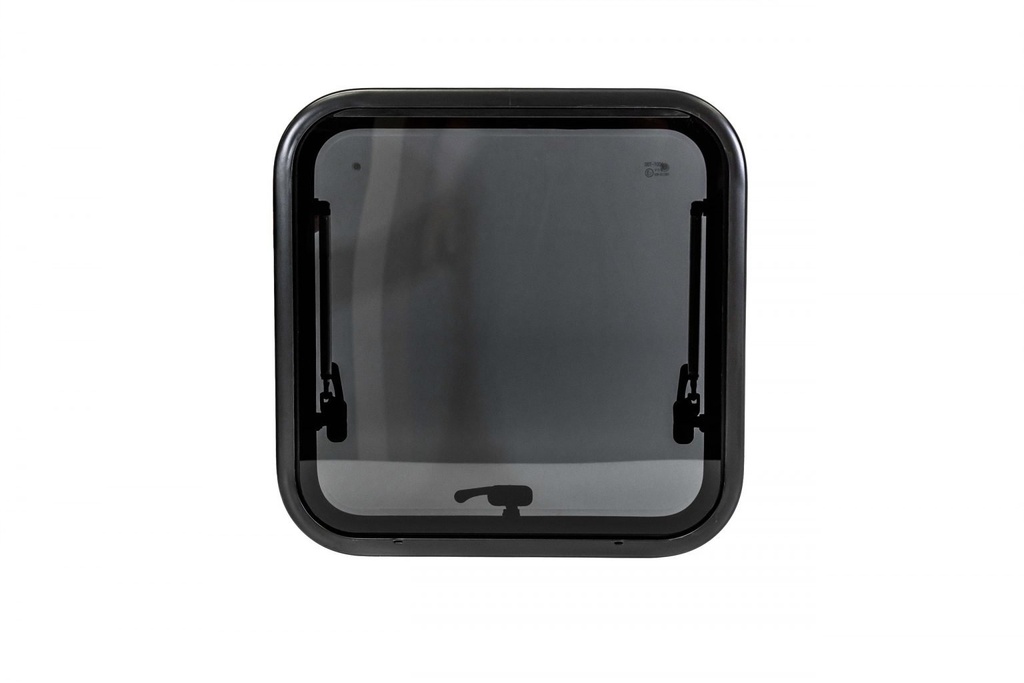

Broad Arrow Flat Window 497×497mm
100% original guarantee
Return within 30 days for most orders
Free delivery on most orders
Customers should check sizing prior to ordering to ensure the window will fit properly and work with their build.

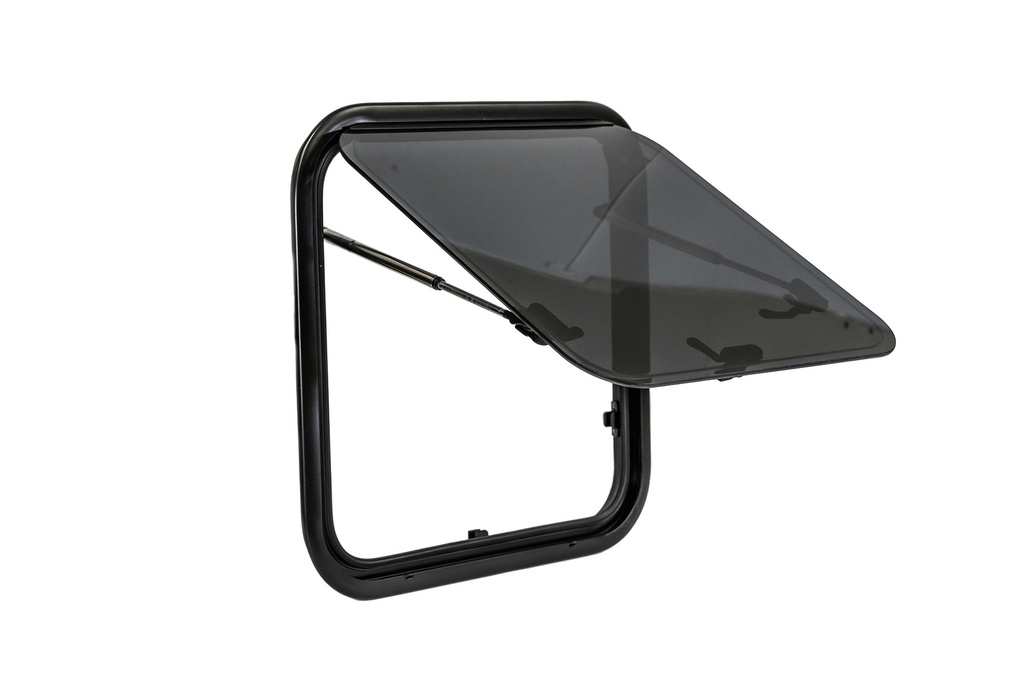

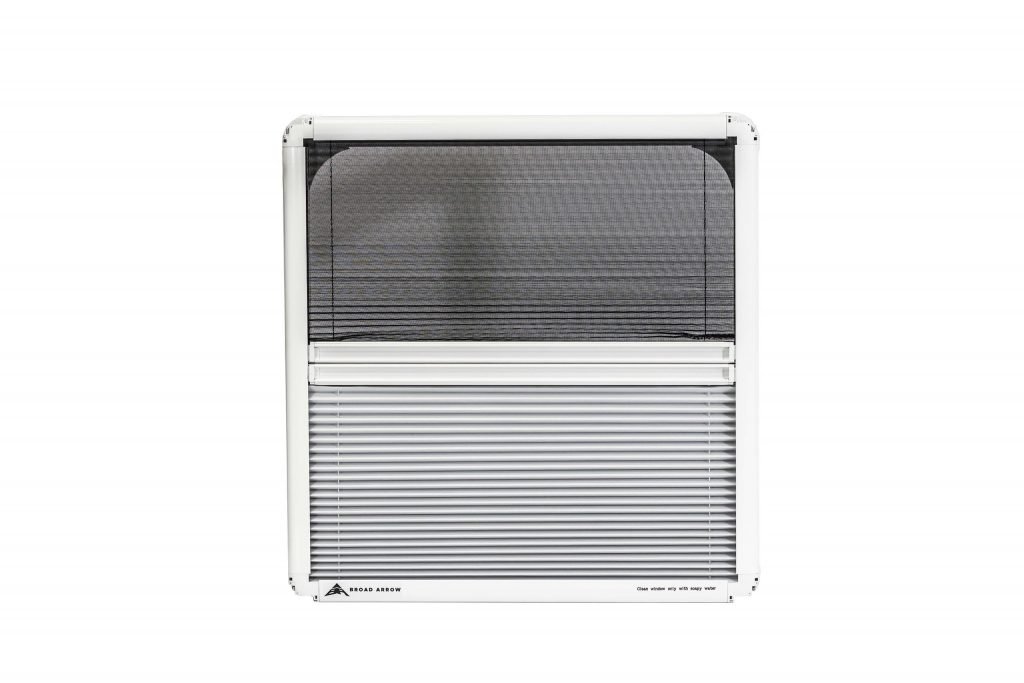

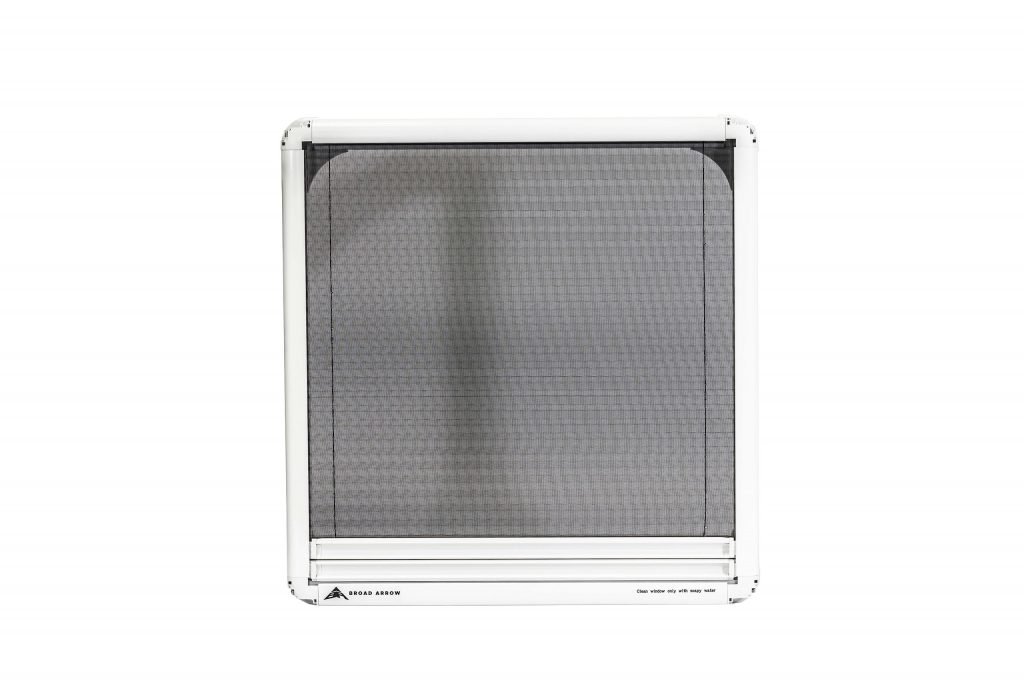

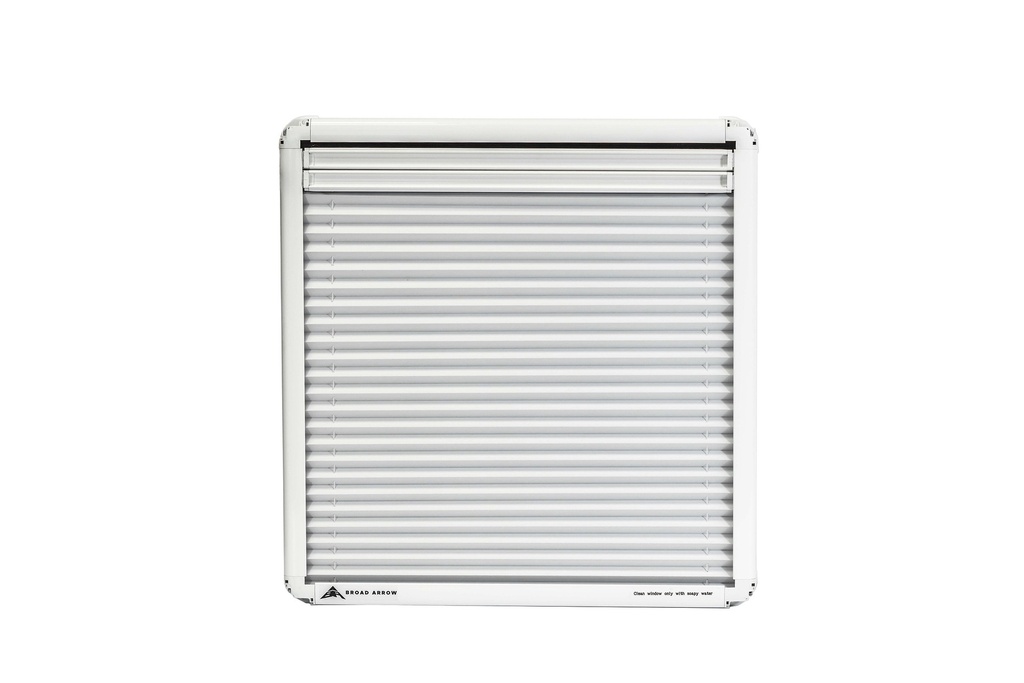

Acrylic dual glazed DOT approved windows. Cassette style with included bug screen and pleated blind. Aluminum frame.

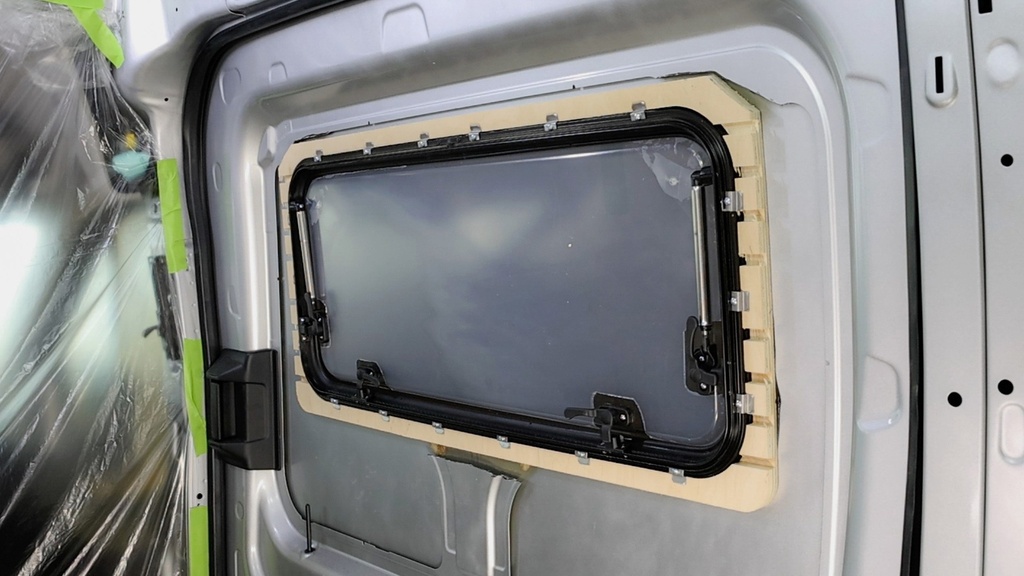

- NEW – Includes wooden mounting ring
- Acrylic dual glazed
- Universal flat window
- Recommended for flat walled vehicles like trailers or box campers
- Visible light transmittance: 10%
- Size: 497 (W) x 497 (H) mm
- Cut Out Size: 500 (W) x 500 (H) mm
- Overall Size: 527 (W) x 527 (H) mm
- Interior Blind Size 527 (W) x 540 (H) mm
- Cutout template
- For sliding door window applications, make sure there is adequate clearance between the door’s interior and the vehicle body when using bed pods, flares, extensions, or other van-side accessories. In some cases, the interior bug screen or night shade cassette may interfere with aftermarket body or bed extensions.
- Made in China
