35 GALLON WHEEL WELL WATER TANK (DRIVERS SIDE)

SKU:

202​2323582

https://canadarv.com/web/image/product.template/4757/image_1920?unique=9144738

575.00 $ 575.0 CAD 575.00 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

VIEW INSTRUCTIONS     WATCH INSTALL VIDEO

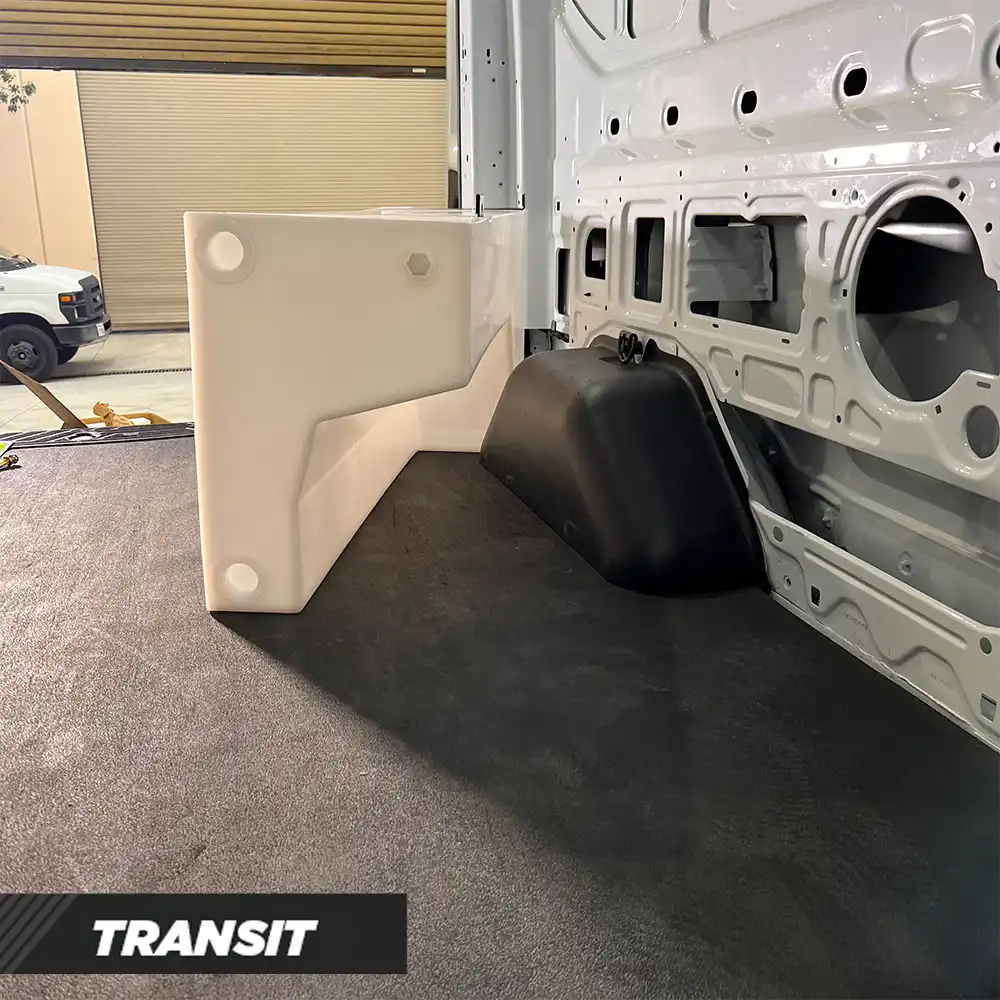

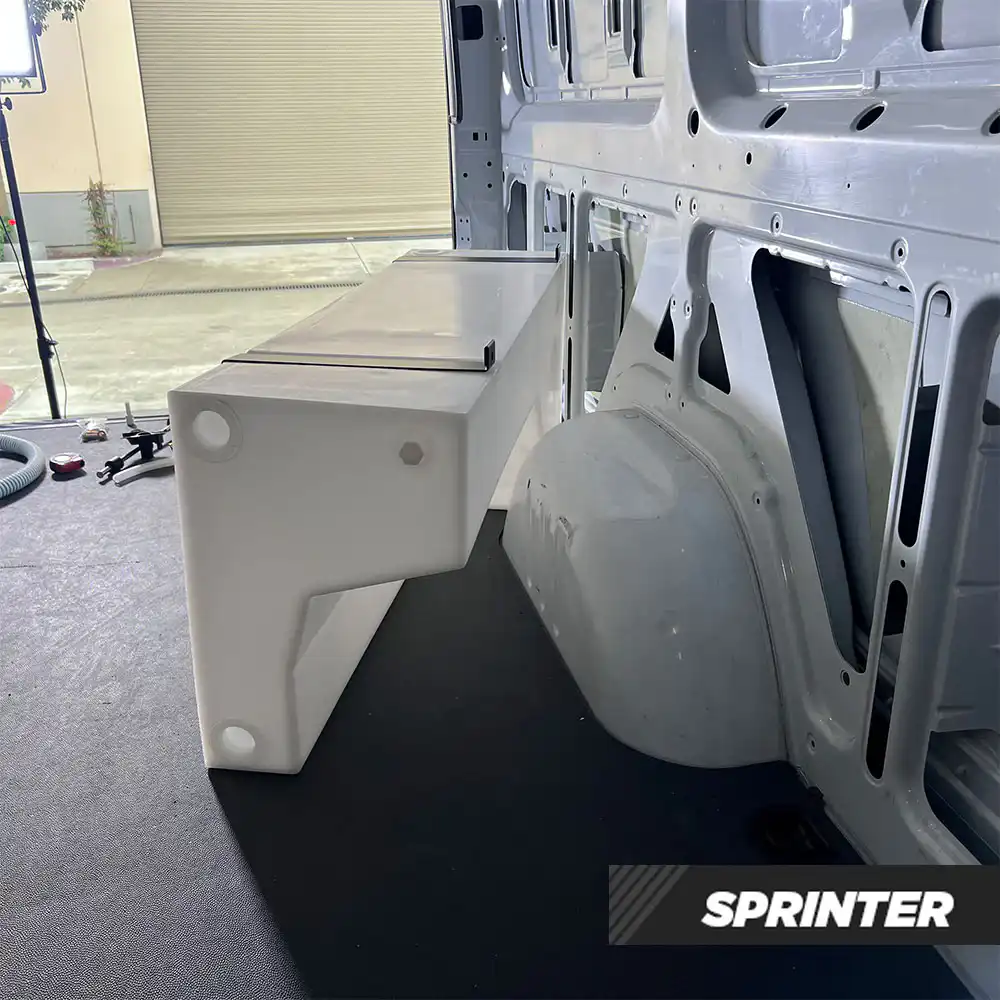

The S&B 35-Gallon Wheel Well Water Tank is designed to maximize onboard water storage while preserving interior living space in Sprinter and Transit van conversions. Installed above the wheel well, this high-capacity solution delivers efficient space utilization and reliable performance for off-grid and travel applications.

Manufactured to meet demanding conversion standards, this tank is TEI Tested & Listed / RVIA Approved, includes mounting straps, and supports optional KUS level monitoring.

Features

  • 35-gallon water capacity (approx.)
  • Over-the-wheel-well design for optimized space usage
  • Mounting straps included
  • Compatible with optional KUS water level sender
  • TEI Tested & Listed / RVIA Approved

Specifications

  • Tank type: Over the wheel well

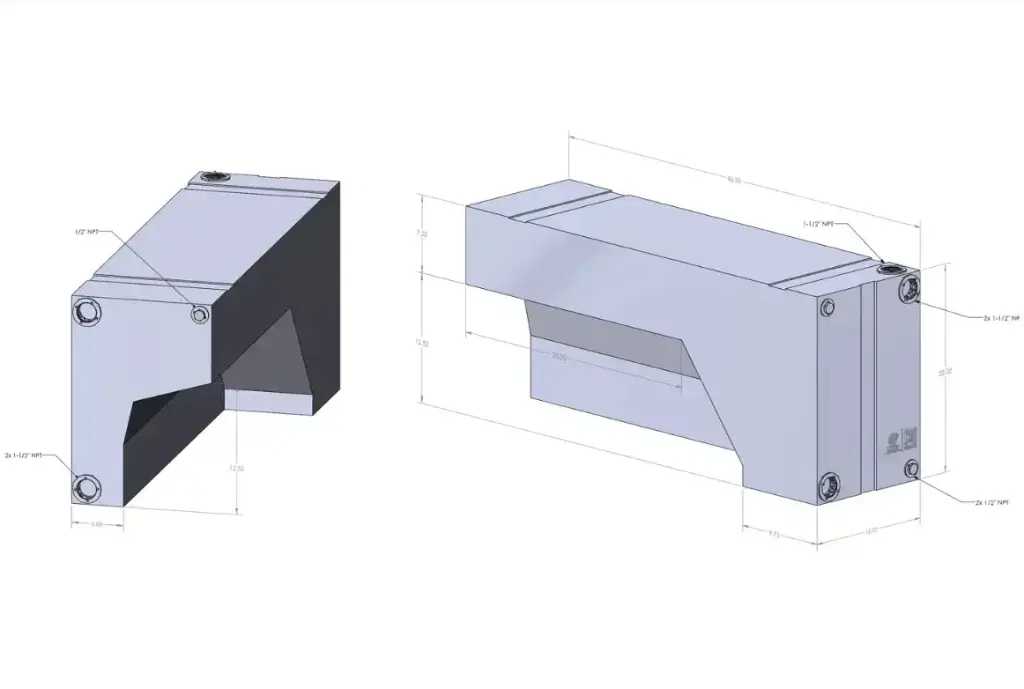

  • Dimensions (approx.): 46" L × 13.5" W × 20" H
  • Dimensional tolerance: ±0.5"
  • Dry weight: 30.3 lbs
  • Sensor height: 19"
  • Sensor compatibility: KUS S5U-19 (not included)

Compatibility

  • Fits single rear wheel Mercedes Sprinter vans
  • Fits Ford Transit 150 / 250 / 350
  • Compatible with diesel and gas configurations depending on model year
  • Not compatible with dually vans
  • Supported applications:
    • Mercedes Sprinter (2007–2024)
    • Ford Transit (2015–2024)

Width: 62.79" (1595mm)

Crossbar Length: 62.40" (1585mm)

130 HR Transit: 104.72" (266.0cm)

148 MR Transit: 132.3" (336.0cm)

148 HR Transit: 81.9" (308.0cm)

148 HR EXT Transit: 150.4" (382.0cm)

Lengths by Vehicle:

Internal Width: 62.22" (1555mm)

130 Transit: 49 lbs

148 Transit: 58 lbs

148 EXT Transit: 74 lbs
