2007-2025 Sprinter S&B 16 Gallon Undercarriage Fresh Water Tank (Passenger Side)

Price:

575.00 $
  2. Shop
  3. 2007-2025 Sprinter S&B 16 Gallon Undercarriage Fresh Water Tank (Passenger Side)
34 GALLON WHEEL WELL WATER TANK (PASSENGER SIDE) FOR 2013-2025 DODGE / RAM PROMASTER 1500, 2500, 3500 136", 159" AND 159" EXT (10-3020)
34 GALLON WHEEL WELL WATER TANK (PASSENGER SIDE) FOR 2013-2025 DODGE / RAM PROMASTER 1500, 2500, 3500 136", 159" AND 159" EXT (10-3020)
675.00 $
675.00 $
35 GALLON WHEEL WELL WATER TANK (DRIVERS SIDE)
35 GALLON WHEEL WELL WATER TANK (DRIVERS SIDE)
575.00 $
575.00 $
S&B Filters

2007-2025 Sprinter S&B 16 Gallon Undercarriage Fresh Water Tank (Passenger Side)

SKU:

202​2323582

https://canadarv.com/web/image/product.template/4756/image_1920?unique=4b7c81c

575.00 $ 575.0 CAD 575.00 $

Contact us for quote

This combination does not exist.

Contact Us

Terms and Conditions
Return within 30 days for most orders
Free delivery on most orders

VIEW INSTRUCTIONS  WATCH INSTALL VIDEO

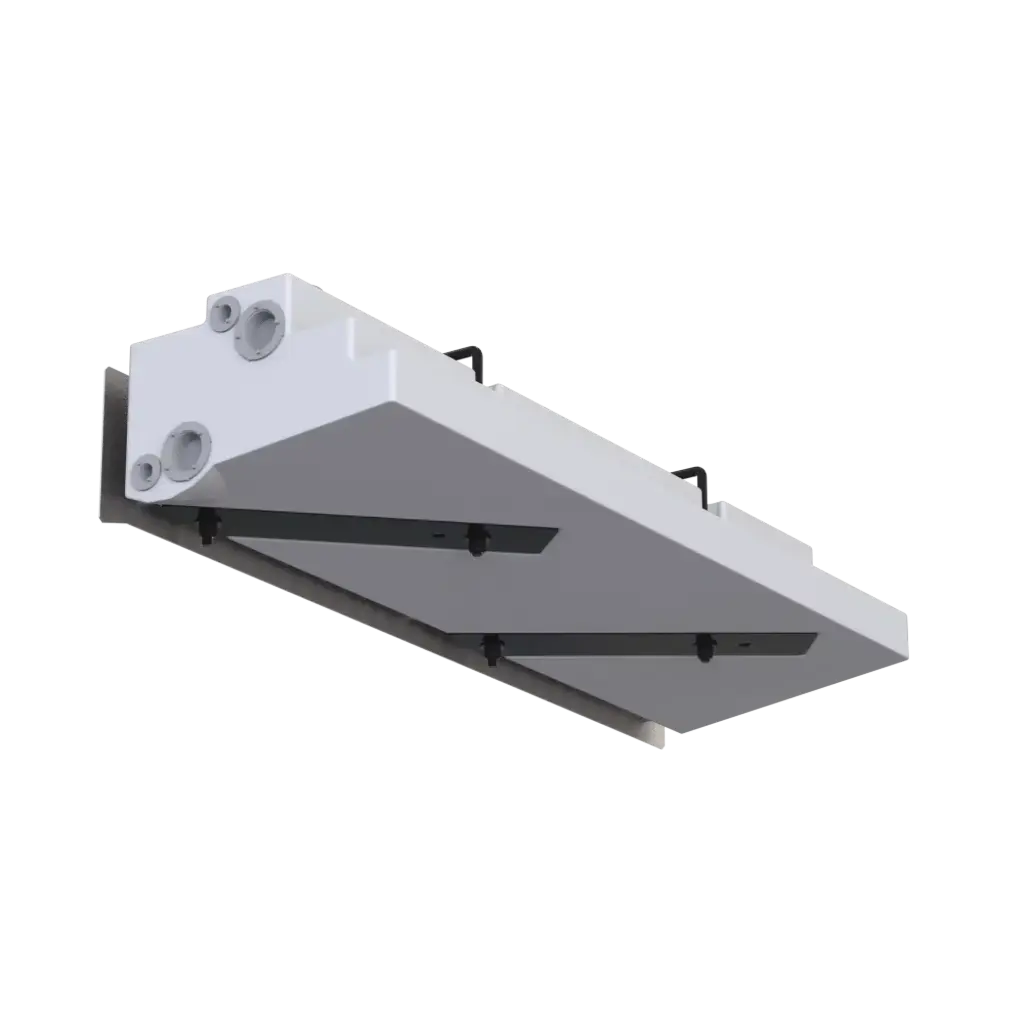

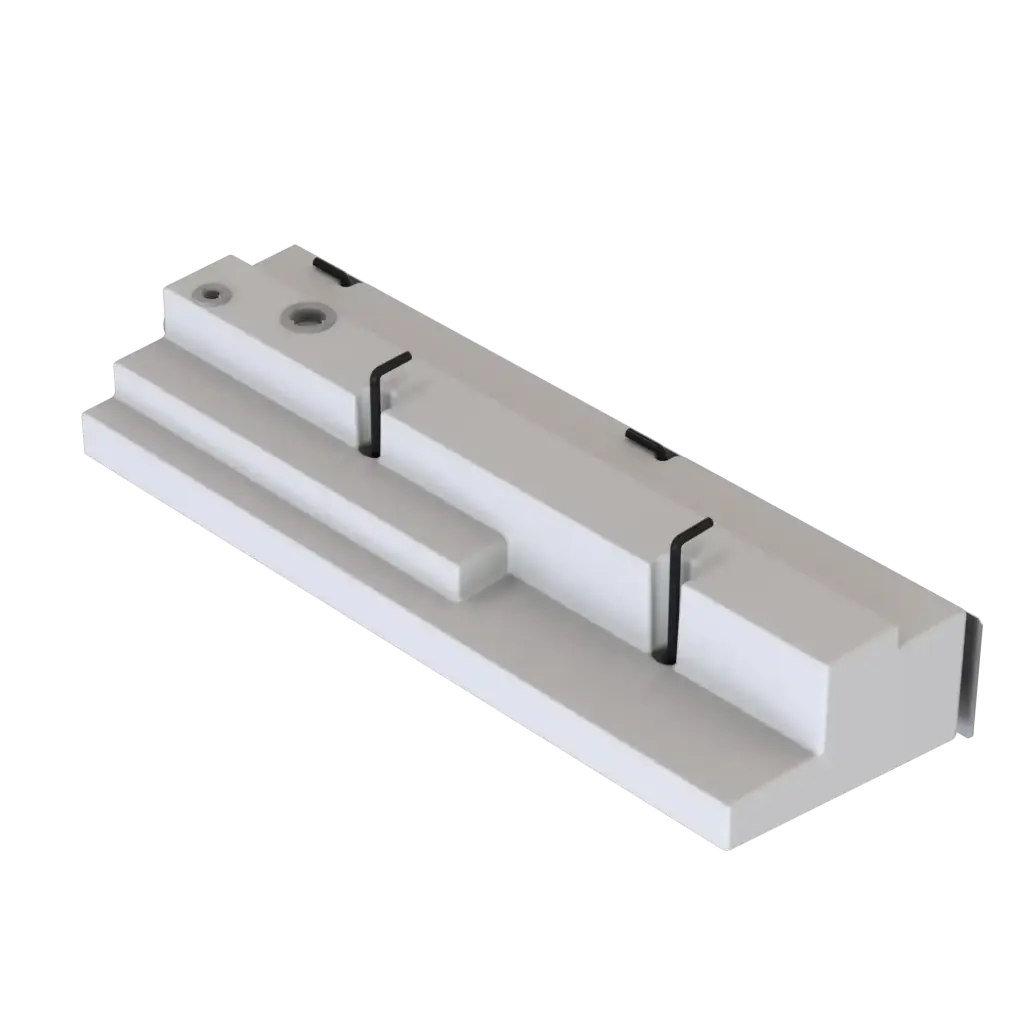

The S&B 16-Gallon Passenger Side Undercarriage Water Tank is designed to add fresh water capacity while preserving valuable interior space in Mercedes Sprinter van conversions. Mounted underneath the vehicle on the passenger side, this compact solution provides efficient water storage without affecting interior layout.

Built for durability and certified for RV applications, this tank includes a mounting kit and supports optional KUS level monitoring systems.

Features

  • 16-gallon water capacity (approx.)

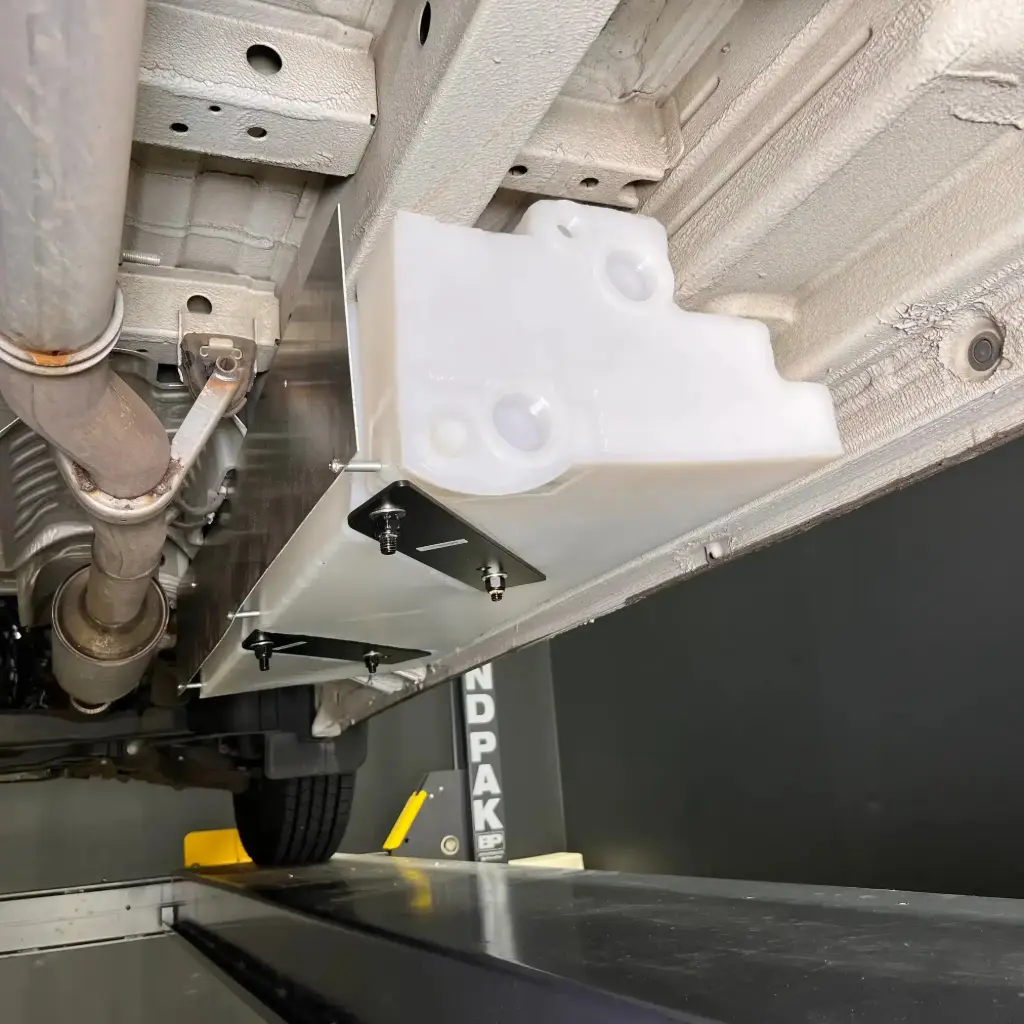

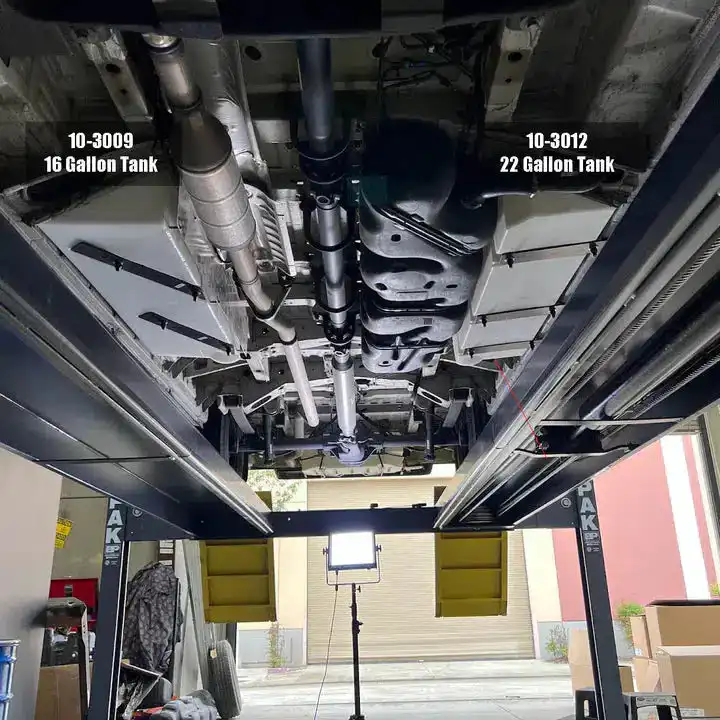

  • Passenger-side undercarriage installation
  • Mounting kit included
  • Compatible with external or KUS internal level sensors (S5U-6 sold separately)
  • TEI Tested & Listed / RVIA Approved
  • Designed for efficient space utilization

Specifications

  • Tank type: Passenger-side undercarriage

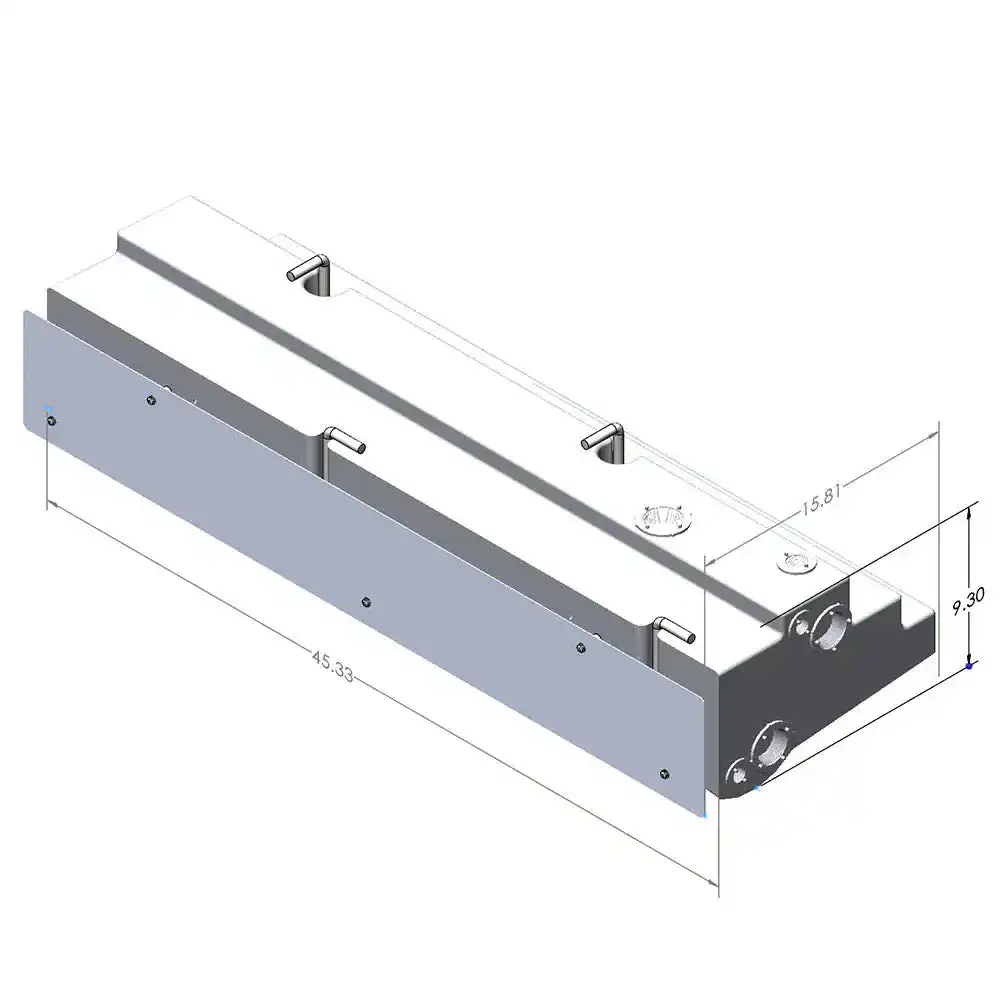

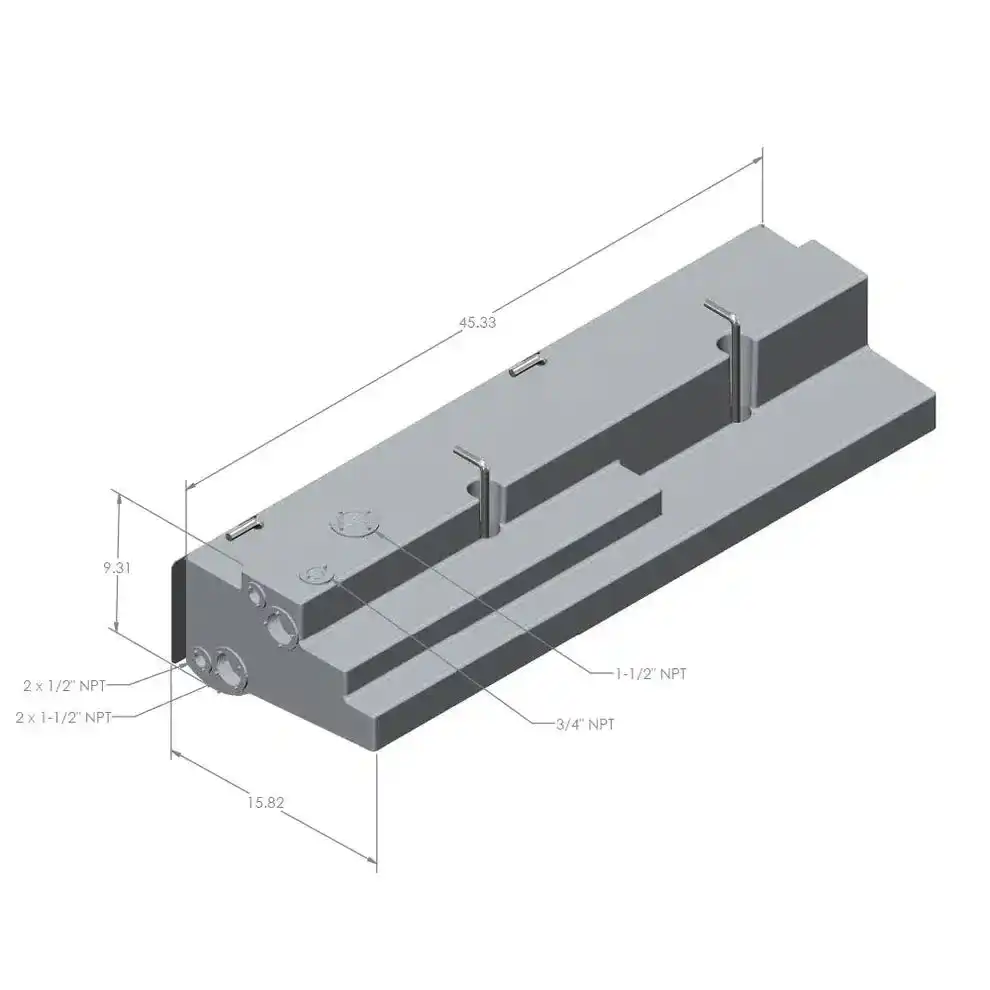

  • Dimensions: 45.33" L × 15.5" W × 8.31" H
  • Dry weight: 20 lbs
  • Sensor height: 6"
  • Sensor compatibility: KUS S5U-6 (not included)

Compatibility

  • Designed for Mercedes Sprinter diesel models (2007–2024)
  • Compatible with 2.0L and 3.0L diesel engines
  • Confirmed compatible with Owl side steps
  • Not compatible with AMP side steps
  • Requires inboard hanger mounting holes
  • Not compatible with gas models
  • Not compatible with vans equipped with a DEF tank mounted underneath
  • Approximate clearance between tank and body: 0.8"
