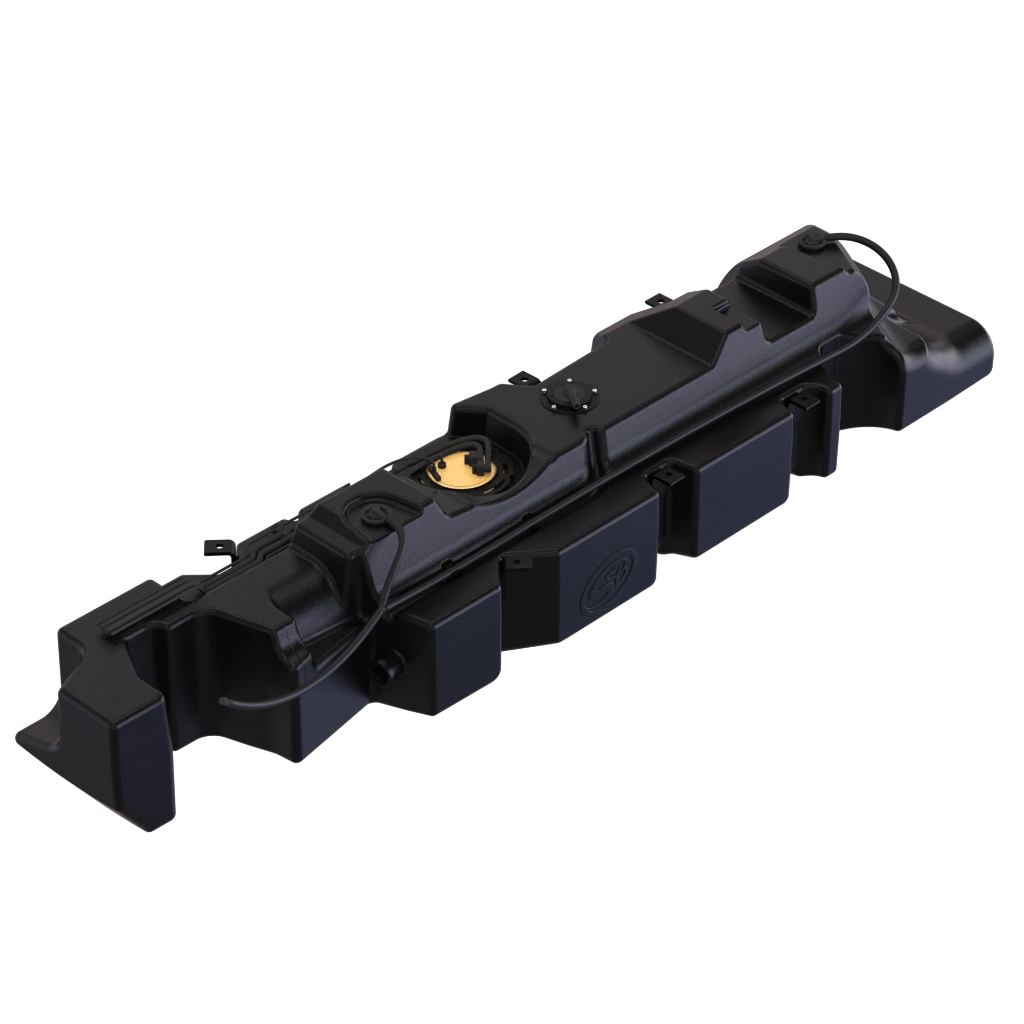

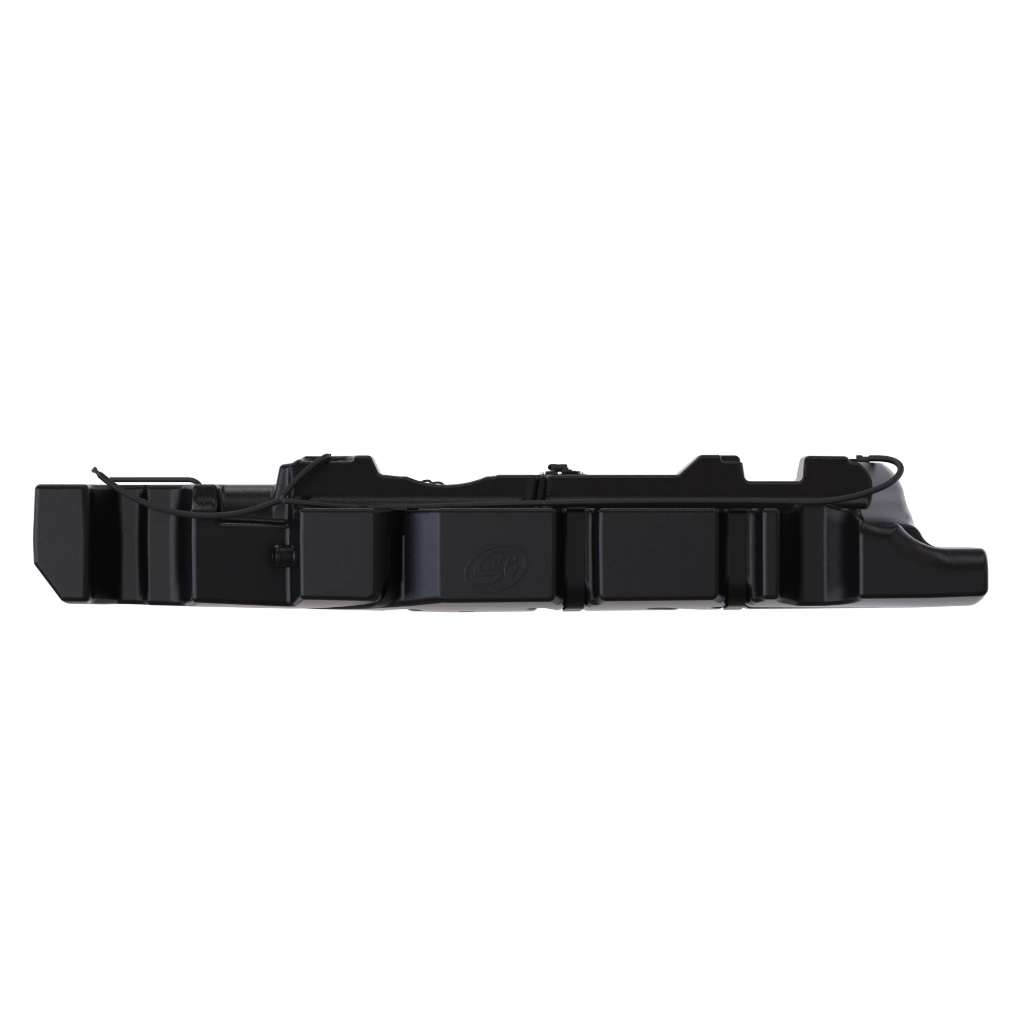

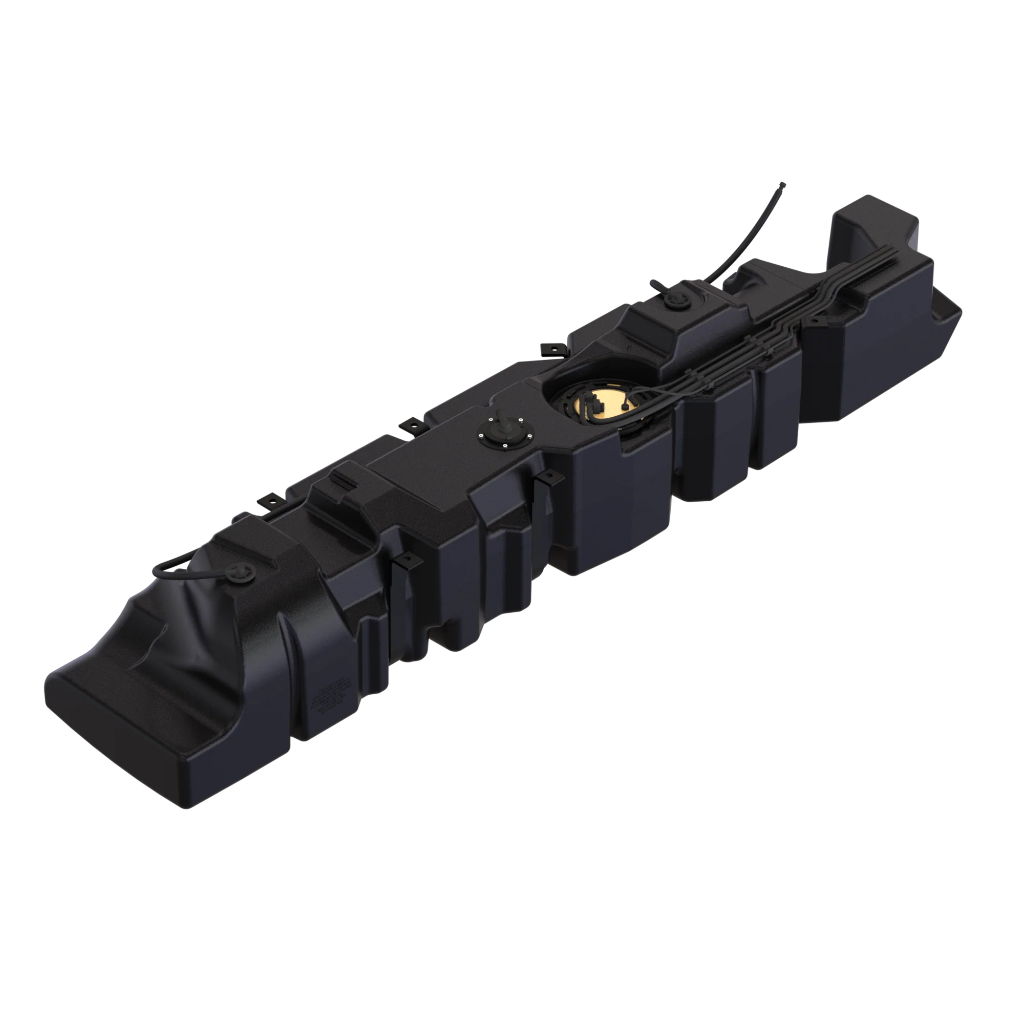

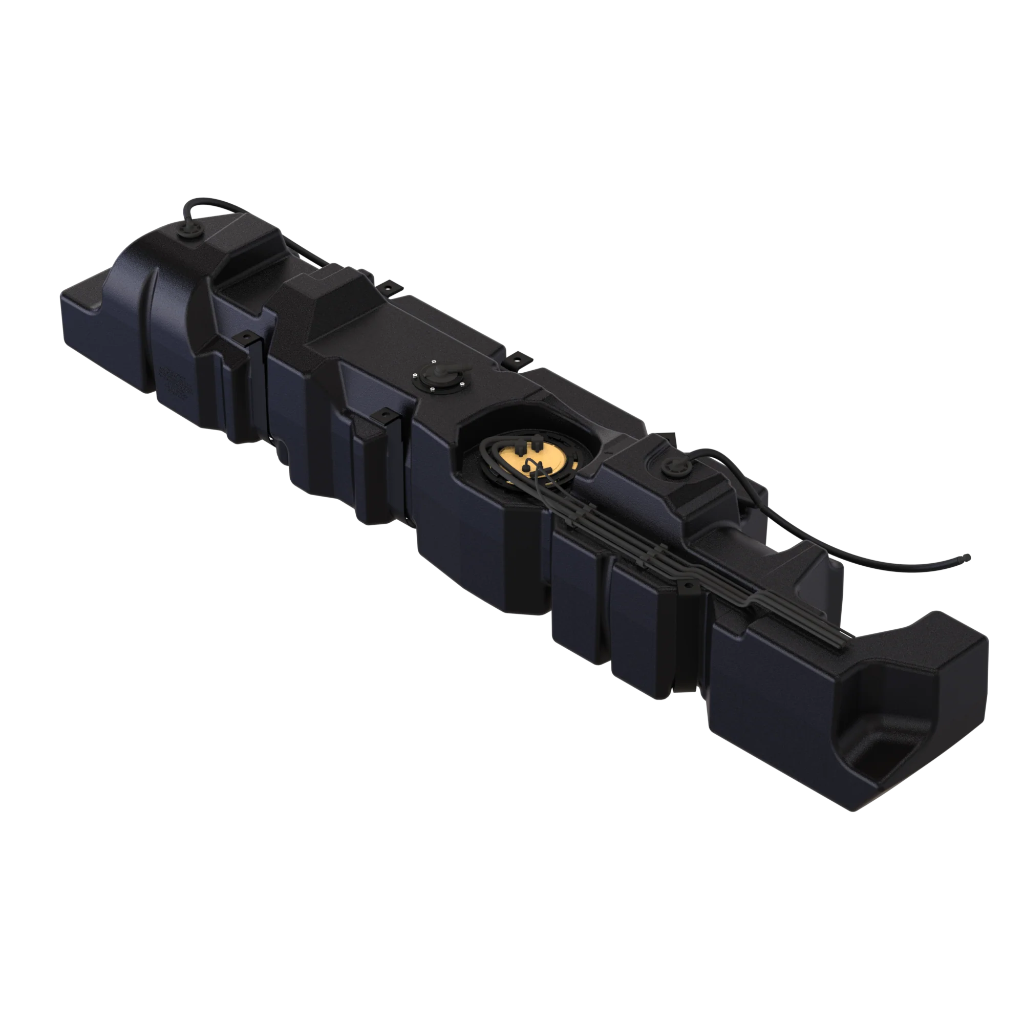

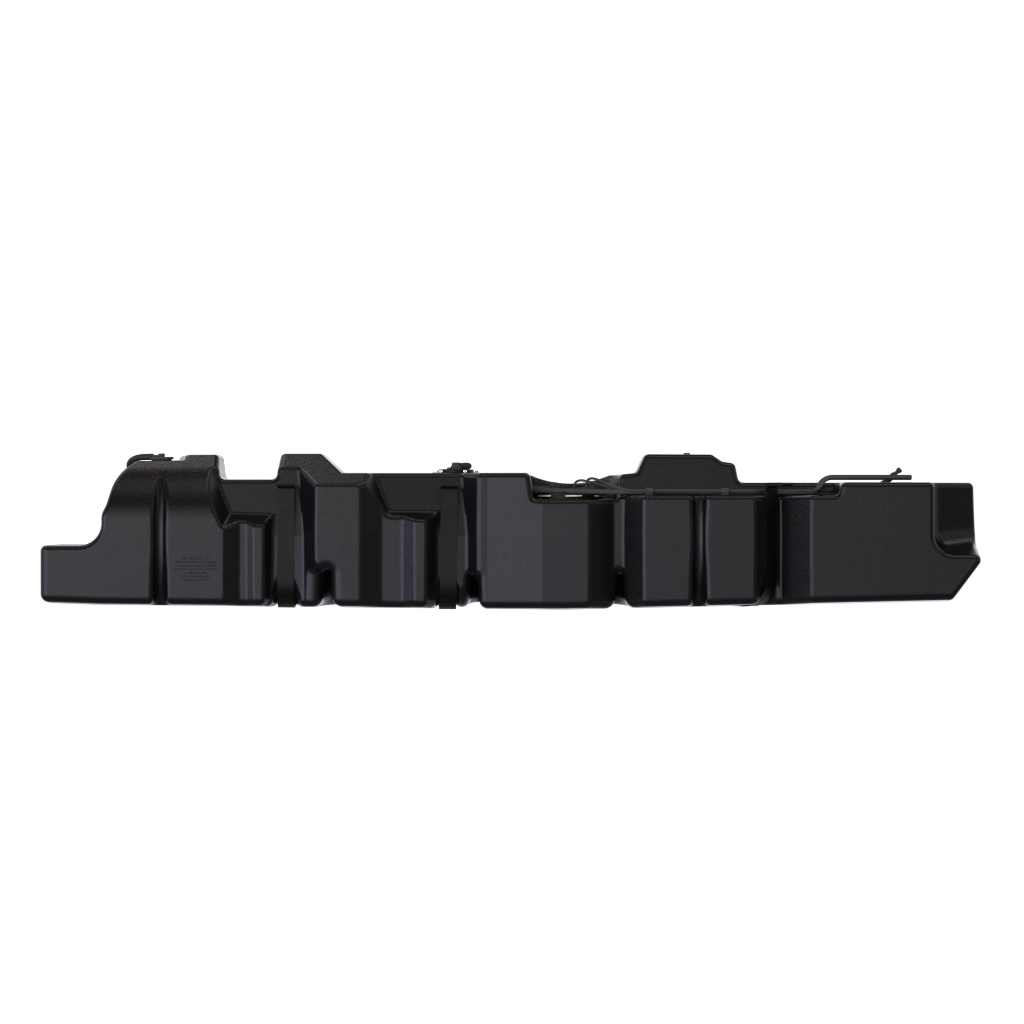

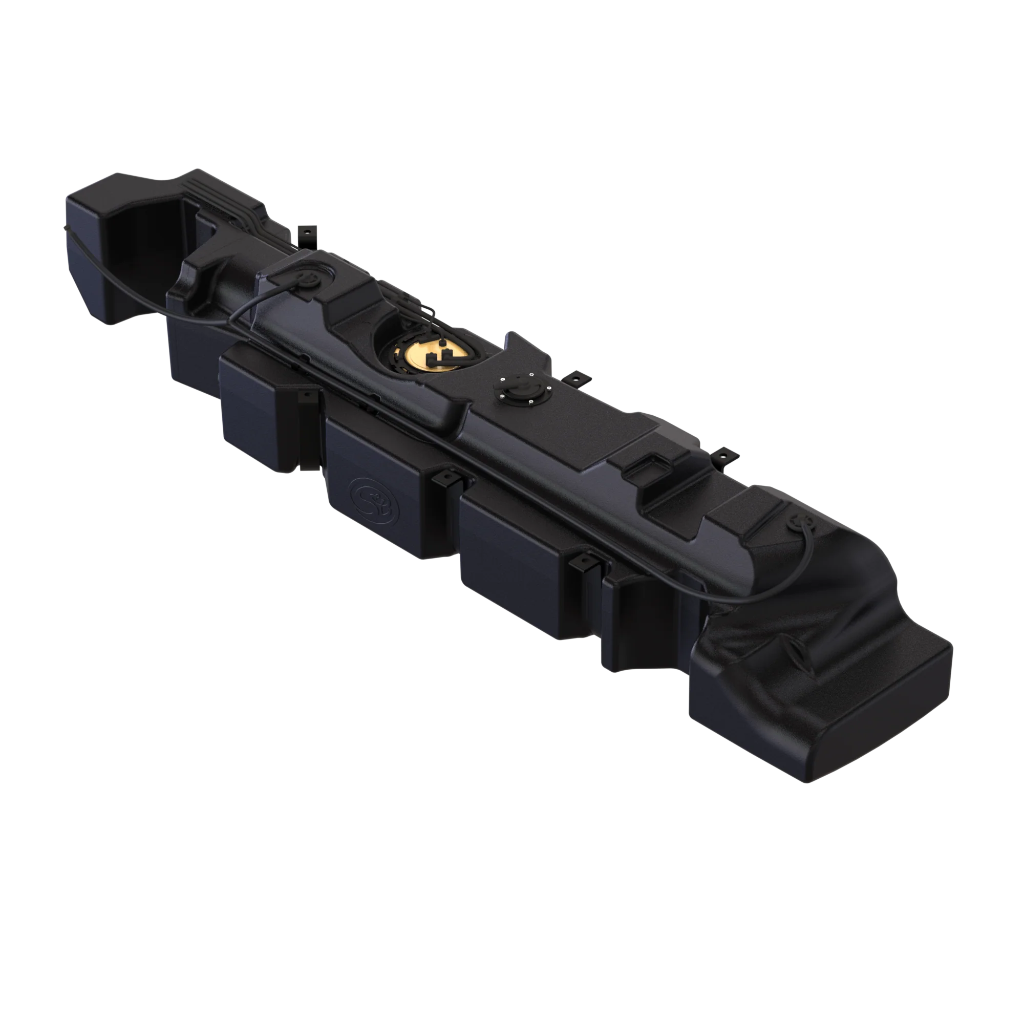

40 GALLON REPLACEMENT FUEL TANK FOR 2025 WINNEBAGO REVEL (AWD CHASSIS) 2.0L, DIESEL AND MORE (10-1032)
100% original guarantee
Return within 30 days for most orders
Free delivery on most orders

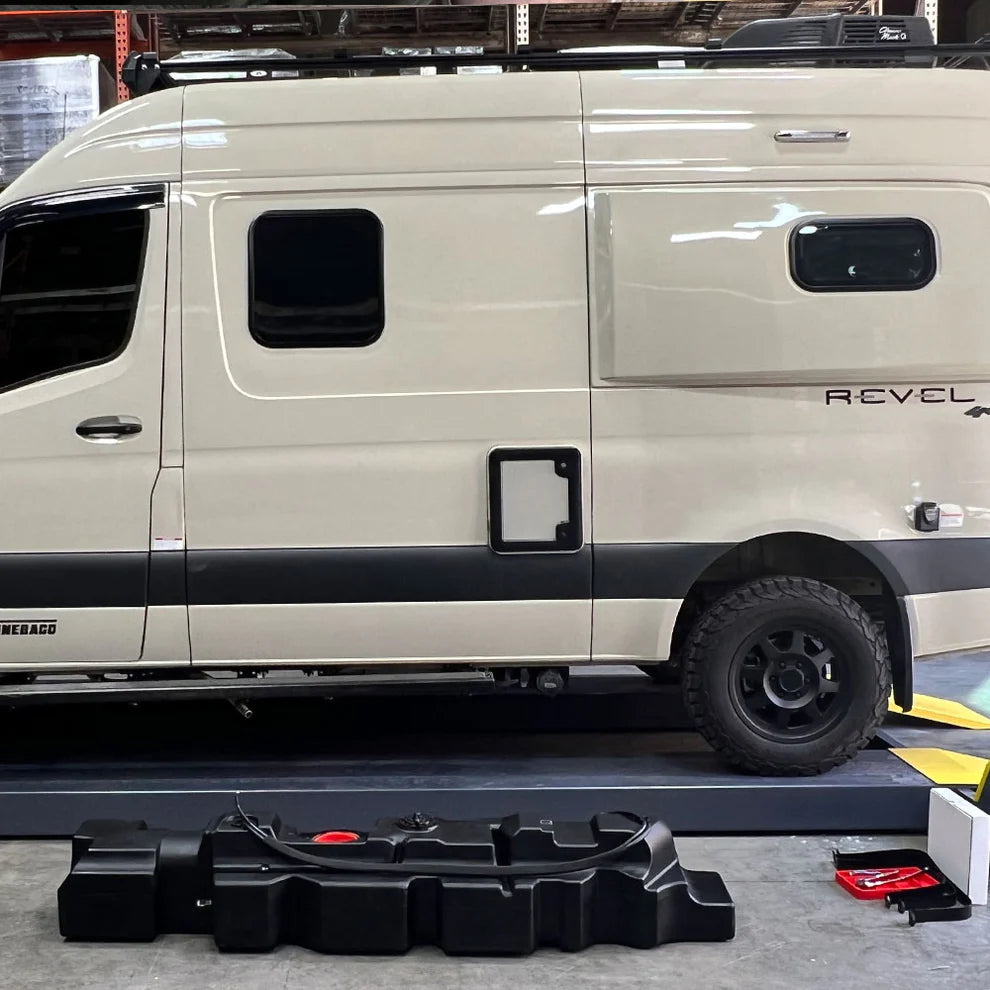

The S&B Tank for AWD vans fits 170" Crew, Sanctuary, Tranquility, Entegra Launch, Jayco Terrain, 2025+ Revels and any builds that have plumbing or interference behind the original fuel tank. Click here for more info.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). All 2020+ Revels should have been built with this option but please confirm by sending us your vin or consulting with your installer.
Note: Will not fit 144" Dually.
PRODUCT DETAILS
| DIMENSIONS | 79.91 X 15.94 X 14.18 |
| DRAIN | NO |
| GROUND CLEARANCE COMPARE TO OE TANK | 1.5" |
| OEM CAPACITY | 24 GALLONS |
| SENDING UNIT | OE |
| STRAPS INCLUDED | YES |
| SUMP | NO |
| S&B CAPACITY (APPROXIMATE) | 40 GALLONS |
| TANK TYPE | MIDSHIP |
| WEIGHT DRY | 37LBS |
VEHICLE FITMENT
| YEAR | MAKE | MODEL | ENGINE |
|---|---|---|---|
| 2025 | WINNEBAGO | REVEL (AWD CHASSIS) | 2.0L, DIESEL |
| 2023-2025 | MERCEDES | SPRINTER | 2.0L, DIESEL |
| 2024-2025 | JAYCO | TERRAIN | 2.0L, DIESEL |
| 2024-2025 | ENTEGRA | LAUNCH | 2.0L, DIESEL |
