Download Datasheet View User Manual

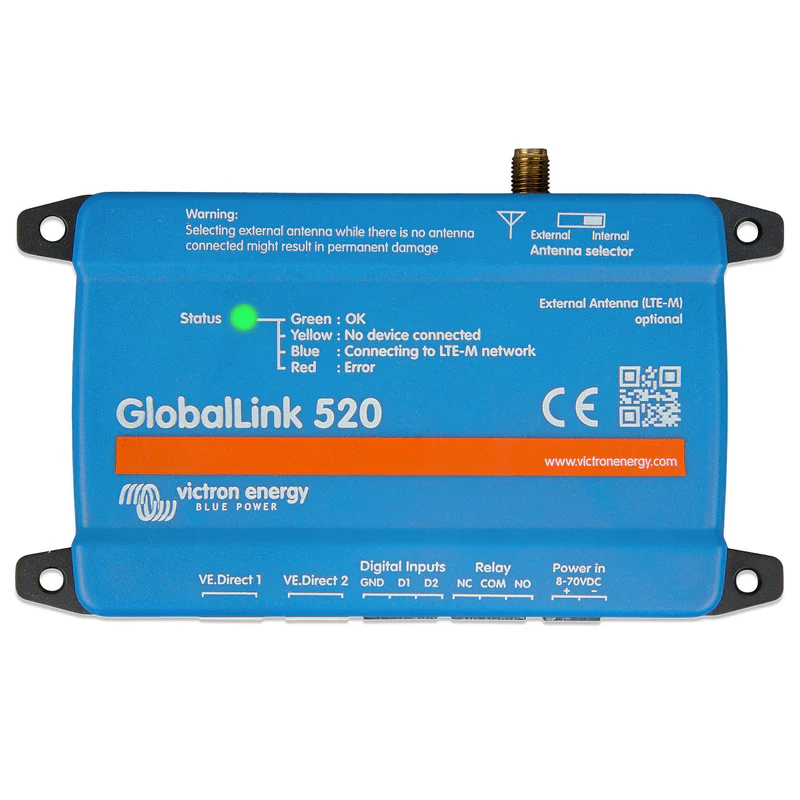

The Victron GlobalLink 520 connects compatible Victron equipment to the VRM online monitoring portal using cellular LTE-M connectivity. Monitor system performance, battery status and energy production remotely, while receiving alerts and accessing historical data from virtually anywhere with cellular coverage.
FEATURES
Built-in LTE-M cellular connectivity with prepaid SIM
Includes 5 years of cellular service
Remote monitoring through the free Victron VRM portal
Two isolated VE.Direct ports for connecting compatible devices
Bluetooth connectivity for up to 10 additional compatible Victron Smart devices
Supports RuuviTag wireless temperature and environmental sensors
Two digital inputs that can also function as pulse counters
Built-in remotely controllable relay
Integrated antenna with connection for an optional external LTE-M antenna
Configuration through the VictronConnect app
SPECIFICATIONS
Supply voltage: 8–70V DC
VE.Direct ports: 2
Digital inputs: 2
Relay: 1 × NO/NC; 2A at up to 30V DC or 0.5A at 125V AC
Wireless connectivity: Bluetooth and LTE-M cellular
Wi-Fi: Not supported
Mounting: Wall-mounted
Operating temperature: -20°C to +50°C
Dimensions: 123 × 67 × 23mm
WHAT'S INCLUDED
GlobalLink 520 unit
1.5m power cable with 1A inline fuse and M10 ring terminals
Two pluggable terminal blocks
IMPORTANT
LTE-M cellular coverage is required for remote monitoring. Verify network availability in your operating area.
The included cellular service is prepaid for 5 years. Connectivity can be extended afterward or provided through a compatible custom SIM.
VE.Direct connection cables are sold separately.
Optional external LTE-M antennas are sold separately.
