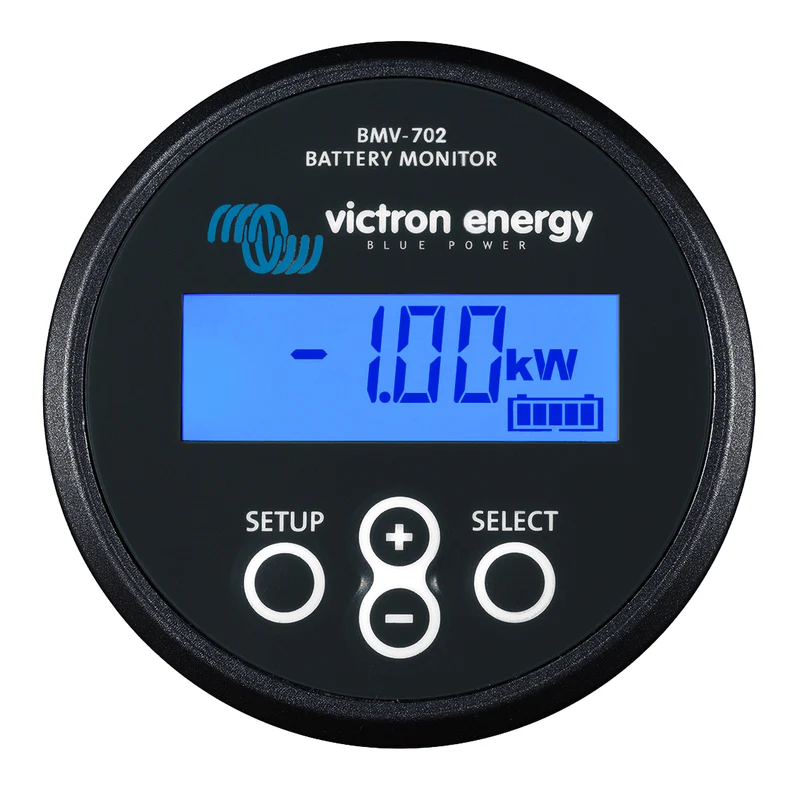

The Victron Energy BMV-702 Battery Monitor (Black) (BAM010702200) is a high-precision battery monitoring system designed to track battery performance, consumption, and state of charge. It measures battery voltage and current to calculate amp-hours consumed, remaining charge, and estimated time remaining. Historical data, programmable alarms, and an auxiliary input provide additional insight into battery health and system performance.
FEATURES
Comprehensive Battery Monitoring: Displays battery voltage, current, power consumption, amp-hours consumed, state of charge, and estimated remaining runtime.
Historical Data: Records discharge history, average discharge, deepest discharge, and charge/discharge cycles.
Auxiliary Input: Monitors the voltage of a second battery, battery bank midpoint voltage, or battery temperature with an optional temperature sensor.
Programmable Alarms: Includes visual and audible alarms, as well as a programmable relay for controlling non-critical loads or starting a generator.
Low Power Consumption: Draws approximately 1 mA at 12V and 0.8 mA at 24V.
System Integration: Compatible with Victron GX devices, the VRM portal, and VE.Smart Networking.
SPECIFICATIONS & INSTALLATION
Input Voltage Range: 6.5–70V
Current Measurement Resolution: 10 mA (0.01 A)
Included Shunt: 500A quick-connect shunt, with support for alternative shunts up to 10,000A.
Communication: VE.Direct port; optional VE.Direct Bluetooth Smart dongle or VE.Direct USB interface for wireless or USB connectivity.
Included Accessories: 10 m RJ12 cable, 2 m battery cable with fuse, mounting hardware, and interchangeable front bezel.
Display: Integrated screen with four control buttons.
Warranty: 5-year limited factory warranty.
