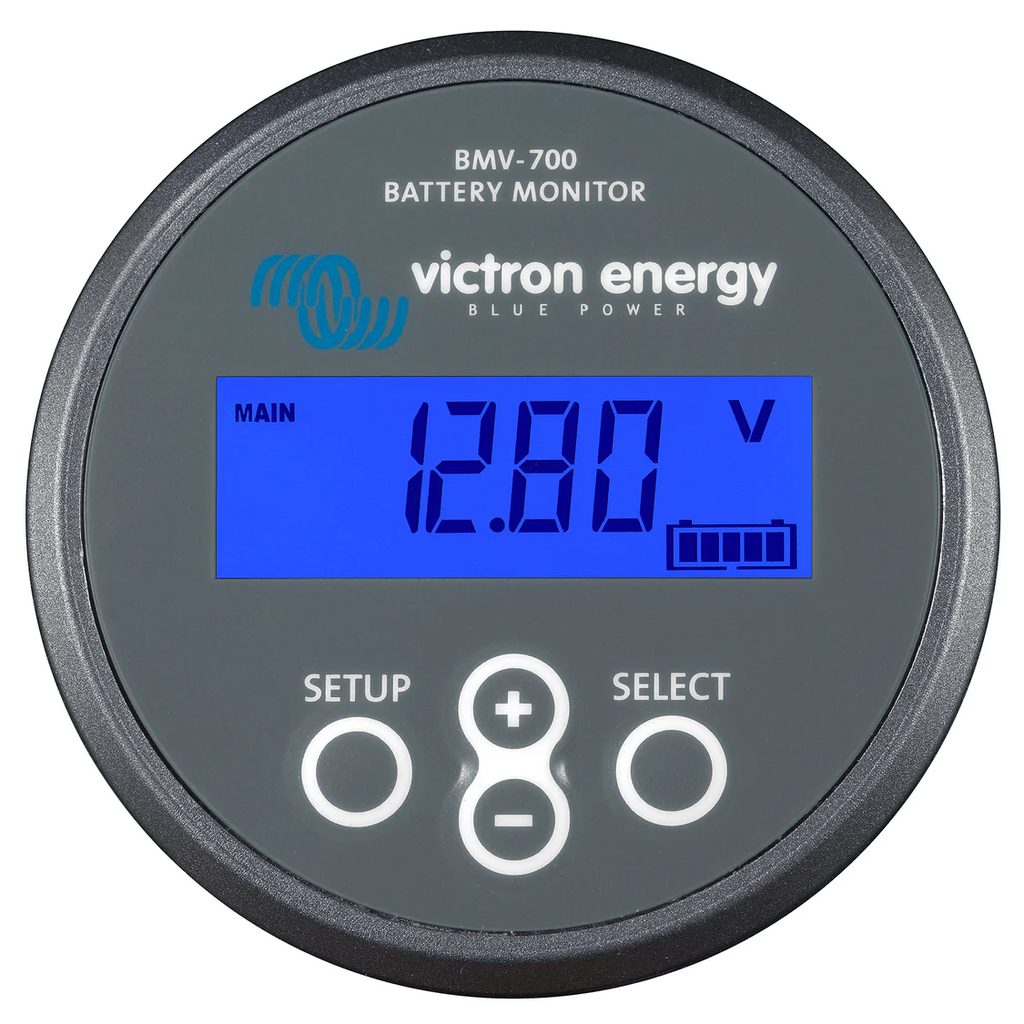

The Victron Energy BMV-700 Battery Monitor (BAM010700000) is a high-precision battery monitoring system designed to track battery consumption, performance, and state of charge. By measuring battery voltage and current, it calculates amp-hours consumed, remaining capacity, power consumption, and estimated runtime. Its historical data logging, programmable alarms, and relay output provide greater control over battery management in RV, marine, and off-grid electrical systems.
FEATURES
Comprehensive Battery Monitoring: Displays battery voltage, current, power consumption, amp-hours consumed, state of charge, and estimated remaining runtime.
Historical Data: Records discharge history, average and deepest discharge, and the number of charge and discharge cycles.
Programmable Alarms: Includes visual and audible alarms, along with a programmable relay for controlling non-essential loads or starting a generator.
Bluetooth Connectivity: Compatible with an optional VE.Direct Bluetooth Smart dongle for wireless monitoring and configuration through the VictronConnect app.
System Integration: Features a VE.Direct communication port for integration with compatible Victron devices.
SPECIFICATIONS & INSTALLATION
Input Voltage Range: 6.5–95V DC
Battery Capacity Range: 1–9,999Ah
Current Measurement Resolution: 10mA (0.01A)
Included Shunt: 500A / 50mV quick-connect shunt, with support for alternative shunts up to 10,000A.
Power Consumption: Less than 4mA with the display backlight off.
Display: Integrated screen with four control buttons.
Installation: Flush-mounted display with included 10m RJ12 cable, 2m battery cable with fuse, mounting hardware, and interchangeable front bezel.
Warranty: 5-year limited factory warranty.
