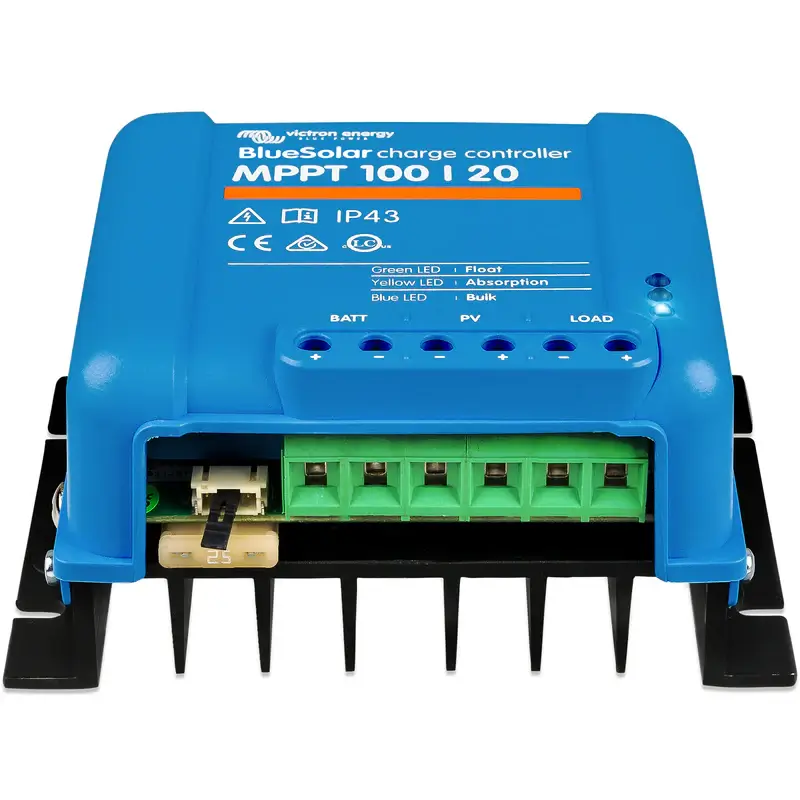

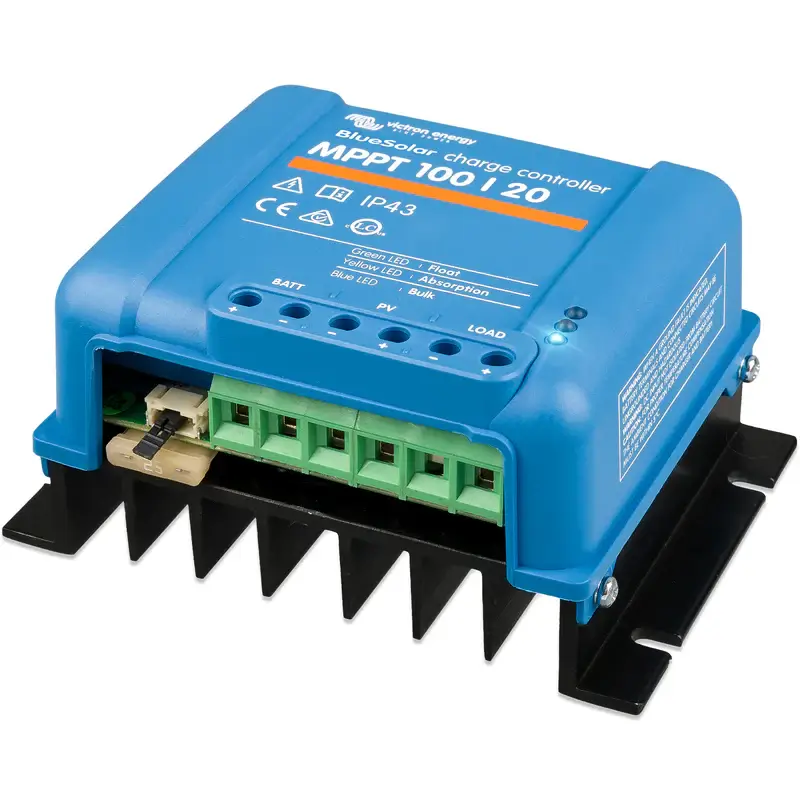

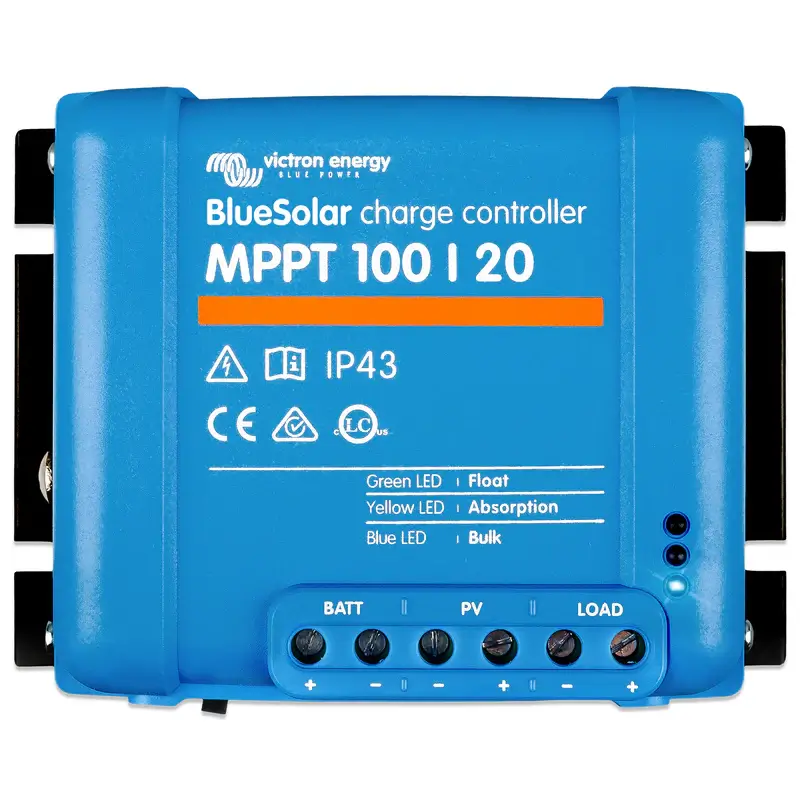

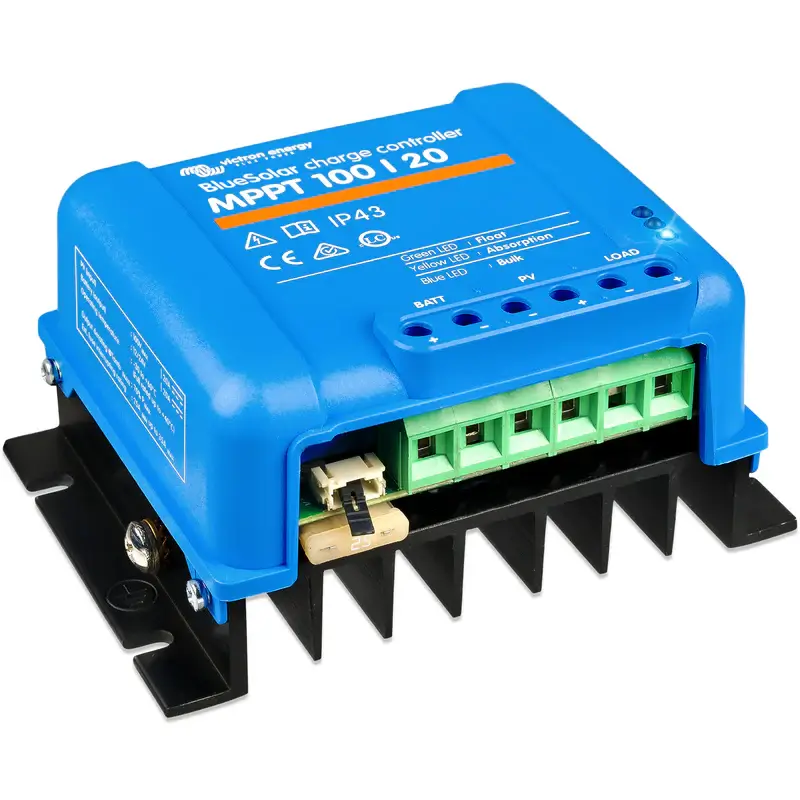

Victron Energy BlueSolar MPPT 100/20 Solar Charge Controller

Technical Specifications  User manual

The Victron Energy BlueSolar MPPT 100/20 uses Maximum Power Point Tracking (MPPT) technology to optimize solar energy harvesting and charge compatible batteries efficiently. It supports 12V, 24V, and 48V battery systems and includes an intelligent load output to help prevent excessive battery discharge in RVs, boats, and off-grid installations.

FEATURES

• Maximum PV open-circuit voltage: 100V

• Maximum charging current: 20A

• Battery voltage: Automatically detects 12V, 24V, or 48V systems

• Nominal solar power: Up to 290W at 12V; 580W at 24V; 1160W at 48V

• Peak efficiency: 98%

• Charging algorithm: Adaptive multi-stage or user-defined charging

• Load output: Up to 20A continuous at 12V and 24V; limited to 1A at 48V

• BatteryLife algorithm: Adjusts load disconnection to help prevent prolonged partial charging and extend battery life

• Communication: VE.Direct port for monitoring and system integration

• Protection: PV reverse-polarity protection, output short-circuit protection, and over-temperature protection

• Operating temperature: -30°C to +60°C; full rated output up to 40°C

• Ingress protection: IP43 for electronic components; IP22 for the connection area

DIMENSIONS AND WEIGHT

• Dimensions (H × W × D): 100 × 113 × 50mm (3.9 × 4.4 × 2.0in)

• Weight: 0.7kg (1.5lb)

• Warranty: 5-year limited warranty
