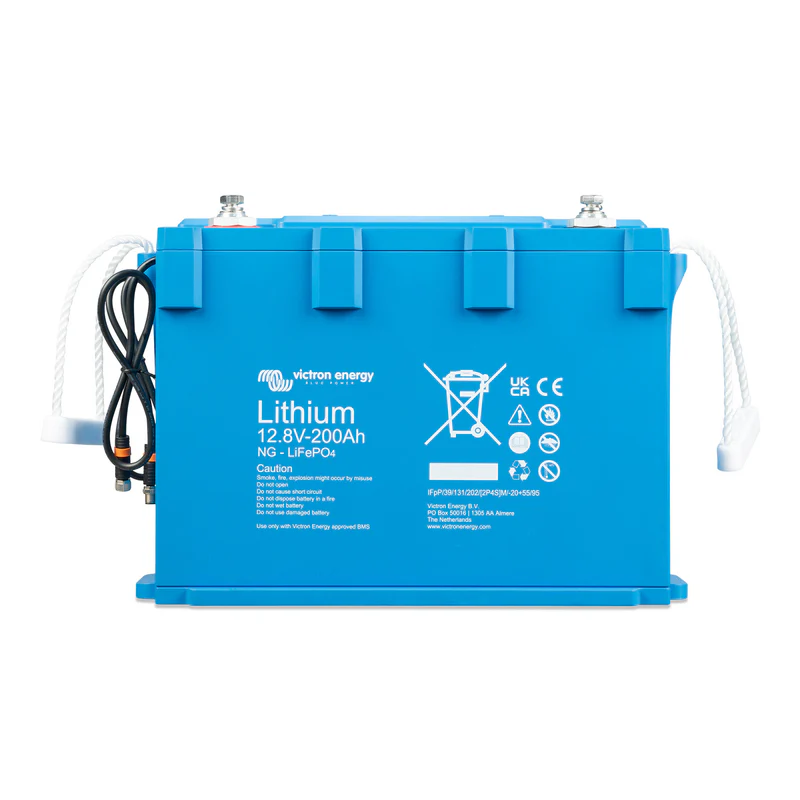

Victron Energy – 12V/200Ah Lithium LifePO4 NG Battery

Victron Energy – 12V/200Ah Lithium LifePO4 NG Battery

Technical Specifications

User manual

Victron Energy Lithium NG Series – Next Generation LiFePO₄ Battery

The Victron Lithium NG (Next Generation) series represents a major advancement in reliable, high-performance energy storage. Designed for demanding off-grid, marine, and mobile applications, this upgraded series builds on the proven Lithium Smart platform with enhanced features and improved efficiency.

These Lithium Iron Phosphate (LiFePO₄) batteries are available in 12.8 V, 25.6 V, and 51.2 V configurations, and can be connected in series, parallel, or series/parallel for 12 V, 24 V, or 48 V systems. A single bank can include up to 50 batteries, supporting up to:

• 192 kWh at 12 V
• 384 kWh at 24 V or 48 V

Key Features:

• Integrated Shunt

Measures voltage, current, and temperature for precise state-of-charge (SoC) calculations. Data is available via VictronConnect or a GX device.

• Automatic Configuration & Monitoring

The required Lynx Smart BMS NG (500 A or 1000 A) auto-detects system voltage and configuration. Battery parameters are monitored via VictronConnect, a GX communication center, or the VRM Portal. Firmware updates are automatic.

• Bluetooth Connectivity

Enables real-time monitoring of cell voltage, current, and temperature from the VictronConnect app.

• Secure Mounting

Includes brackets for safe, stable installation.

• High IP Rating

Dust-tight and resistant to low-pressure water jets—ideal for rugged environments.

• Low Self-Discharge

Max 2% per month, ensuring long shelf life and readiness even after extended storage.

Cycle Life (Capacity ≥ 80% of Nominal):

• 2500 cycles @ 80% DoD
• 3000 cycles @ 70% DoD
• 5000 cycles @ 50% DoD
