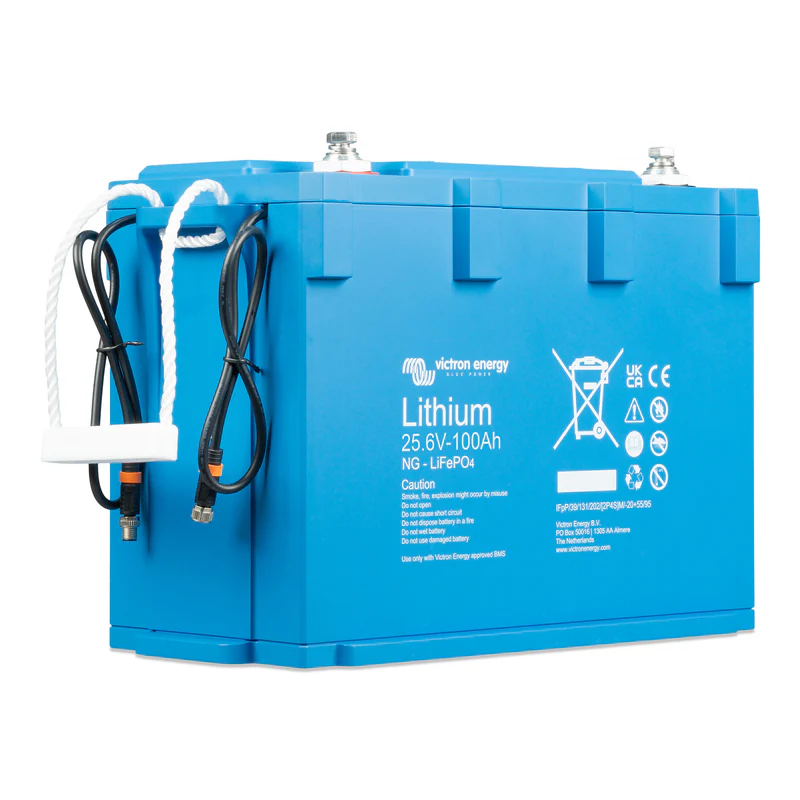

Victron Energy – 24V/100Ah Lithium LifePO4 NG Battery

Technical Specifications

User manual

Victron Energy Lithium NG Series – Next-Gen LiFePO₄ Battery Solutions

The Victron Lithium NG (Next Generation) Series builds upon the proven performance of the Lithium Smart line, delivering superior energy storage for demanding applications. With intelligent integration, high energy density, and robust construction, the NG Series is engineered for the energy systems of tomorrow.

Key Features:

• Battery Type: Lithium Iron Phosphate (LiFePO₄ / LFP)
• Available Voltages: 12.8 V, 25.6 V, 51.2 V
• Configurable for: 12 V, 24 V, or 48 V systems
• Scalable Storage:
  • Up to 50 batteries per system
  • Max capacity:
    • 192 kWh @ 12 V
    • 384 kWh @ 24 V or 48 V

Integrated Smart Technology

• Built-In Shunt: Sends real-time battery voltage, current, and temperature data to the BMS for advanced monitoring and accurate State of Charge (SoC) readings.
• Fully Automatic BMS Integration:
  • Auto-detects system voltage and battery configuration
  • Works with Victron Lynx Smart BMS NG 500A or 1000A (required, sold separately)
  • Bluetooth-enabled monitoring via VictronConnect App, GX devices, or the VRM Portal
  • Real-time insights: cell voltages, SoC, battery temperature, alerts & firmware updates

Built for Reliable Performance

• Easy Bracket Mounting: Simplifies installation and keeps batteries securely in place
• IP-Rated Design: Resistant to dust and low-pressure water jets (ideal for marine, RV, or industrial use)
• Low Self-Discharge: ≤ 2% per month for long-term storage and minimal maintenance
• Extended Cycle Life:
  • 2,500 cycles @ 80% DoD
  • 3,000 cycles @ 70% DoD
  • 5,000 cycles @ 50% DoD

Applications:

• Off-grid solar systems
• Marine and RV power systems
• Industrial and commercial backup
• Scalable residential battery banks

Note: The Lynx Smart BMS NG is required for operation and must be purchased separately. Not compatible with older Lithium Smart models.
