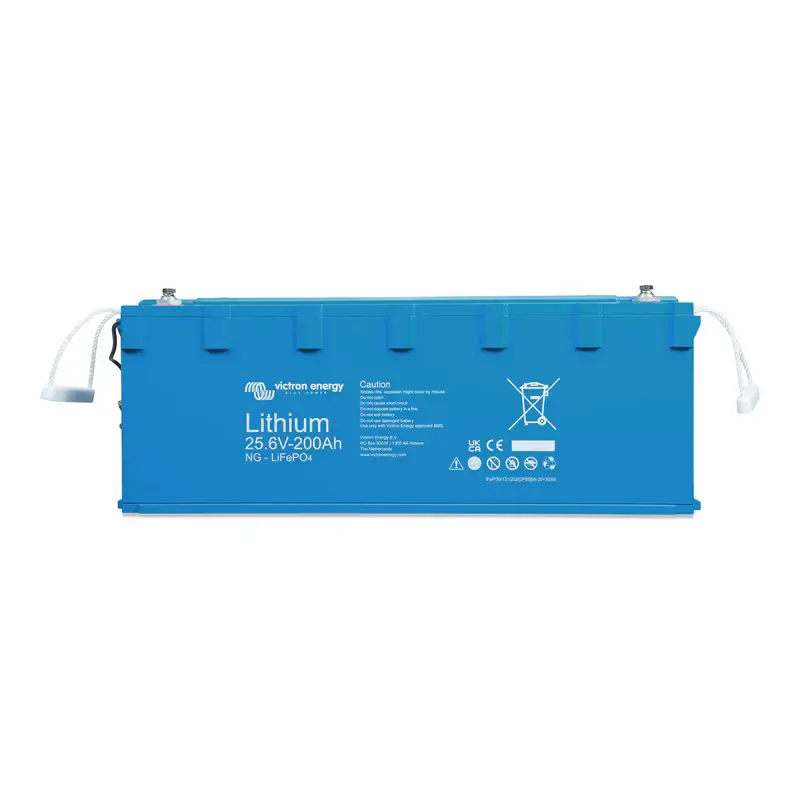

Victron Energy – 24V/200Ah Lithium LifePO4 NG Battery
Victron Energy Lithium NG Series – Advanced LiFePO₄ Battery Technology
The Victron Lithium NG Series is the next evolution in high-performance energy storage. Building upon the proven reliability of the Lithium Smart Series, this Next Generation (NG) line introduces enhanced durability, intelligent integration, and greater scalability—ideal for off-grid, marine, RV, and backup power systems.
Key Features:
- Battery Type: Lithium Iron Phosphate (LiFePO₄ / LFP)
- Available Voltages: 12.8 V, 25.6 V, 51.2 V
- System Configurations: Series, parallel, and series/parallel for 12 V, 24 V, or 48 V systems
-
Scalability:
- Up to 50 batteries per system
-
Maximum storage:
- 192 kWh @ 12 V
- 384 kWh @ 24 V or 48 V
Smart Integrated Functionality
-
Built-In Shunt
Transmits real-time voltage, current, and temperature data to the BMS for accurate SoC (State of Charge) and system alerts. -
Automatic Configuration & Monitoring
The battery management system (BMS) auto-detects system voltage and battery arrangement. Requires Lynx Smart BMS NG 500A or 1000A (sold separately). -
Wireless & Remote Access
Monitor performance through the VictronConnect App, GX device, or the VRM Portal. View detailed stats: cell voltages, current, temperature, SoC, and more. -
Automatic Firmware Updates
Battery firmware is updated via the BMS for optimal performance and security.
Built to Withstand Harsh Conditions
-
IP-Rated Protection
Sealed against dust and resistant to low-pressure water jets—perfect for rugged environments. -
Secure Mounting
Integrated brackets simplify installation and ensure stability in mobile or off-grid systems. -
Low Self-Discharge
Improved efficiency with <2% self-discharge per month—ideal for seasonal or backup systems.
Long-Term Cycle Life
- 2,500 cycles @ 80% DoD
- 3,000 cycles @ 70% DoD
- 5,000 cycles @ 50% DoD
Ideal For:
- Off-grid solar storage systems
- Marine and RV energy solutions
- Commercial and industrial battery banks
- Scalable home backup systems
Note: Use with Victron Lynx Smart BMS NG only (required for operation). Not compatible with previous-generation Lithium Smart batteries.
