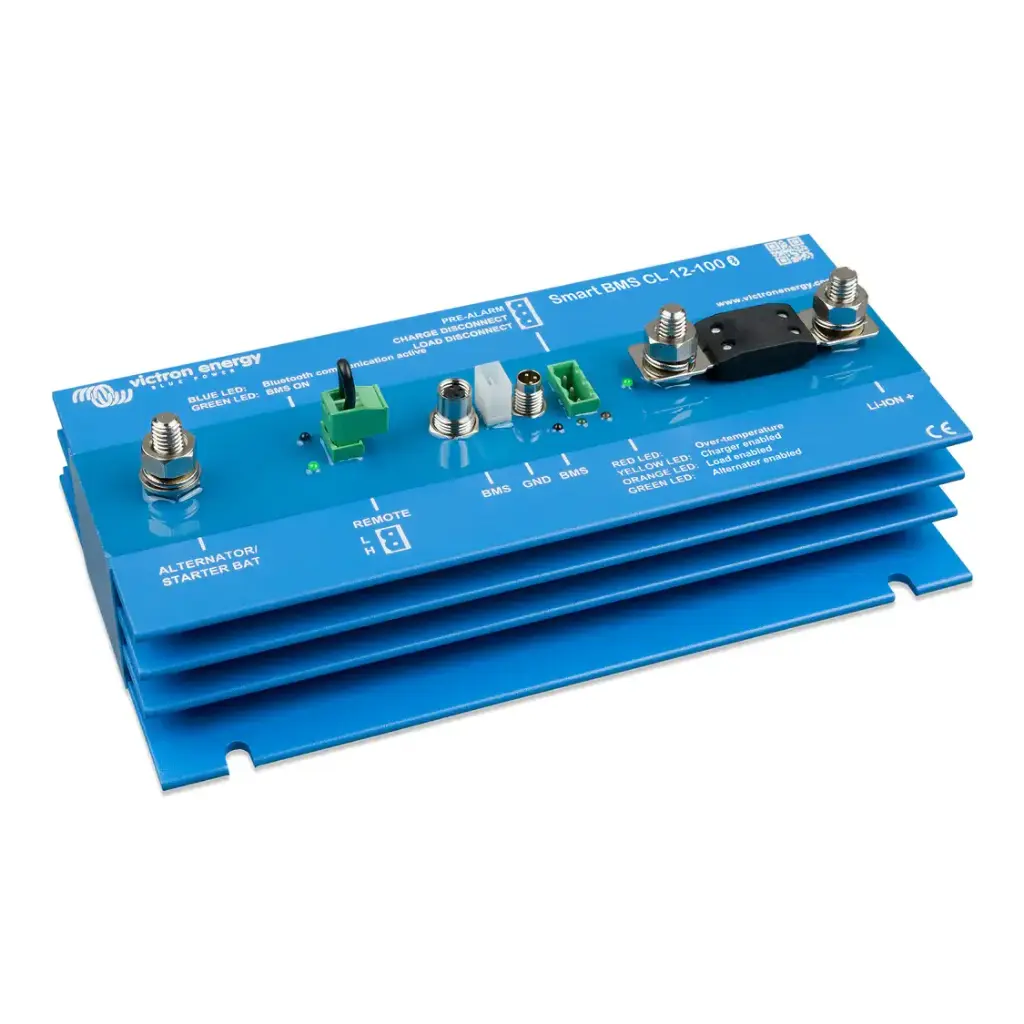

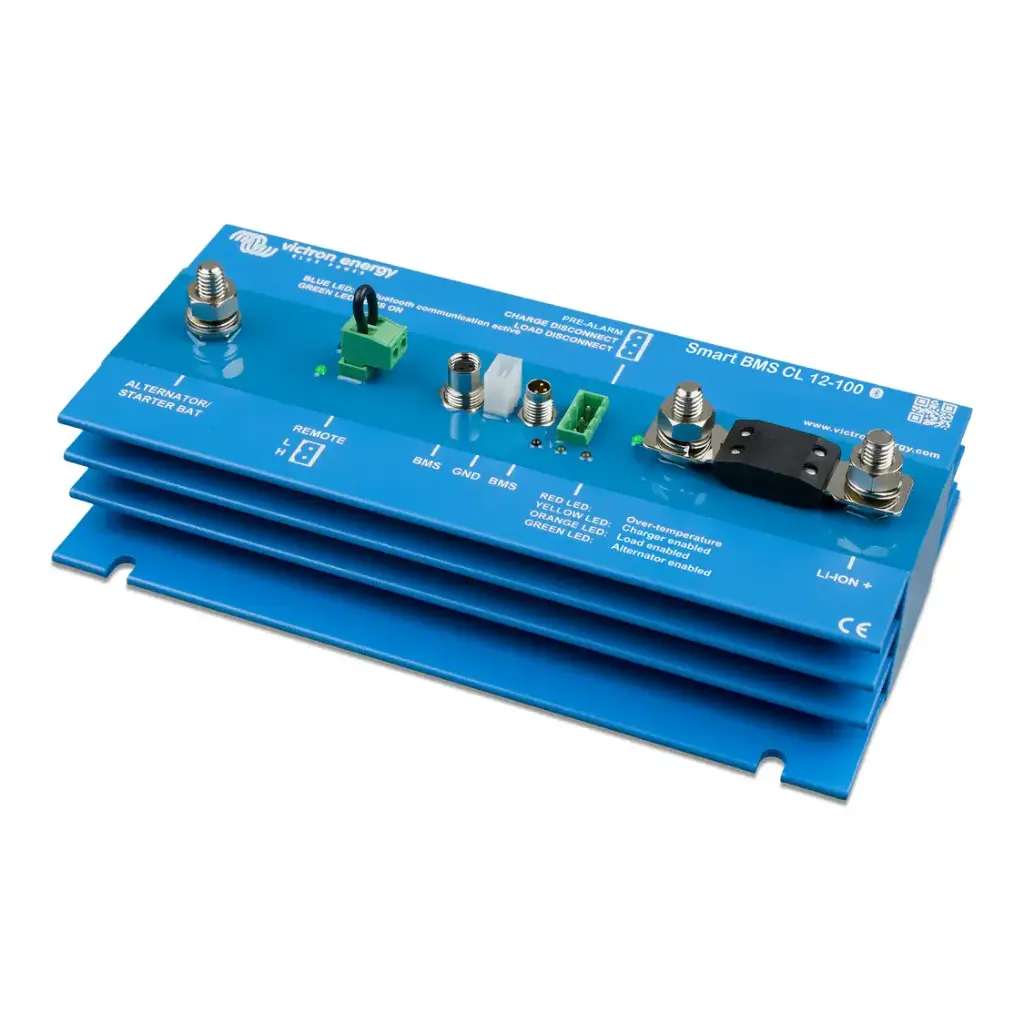

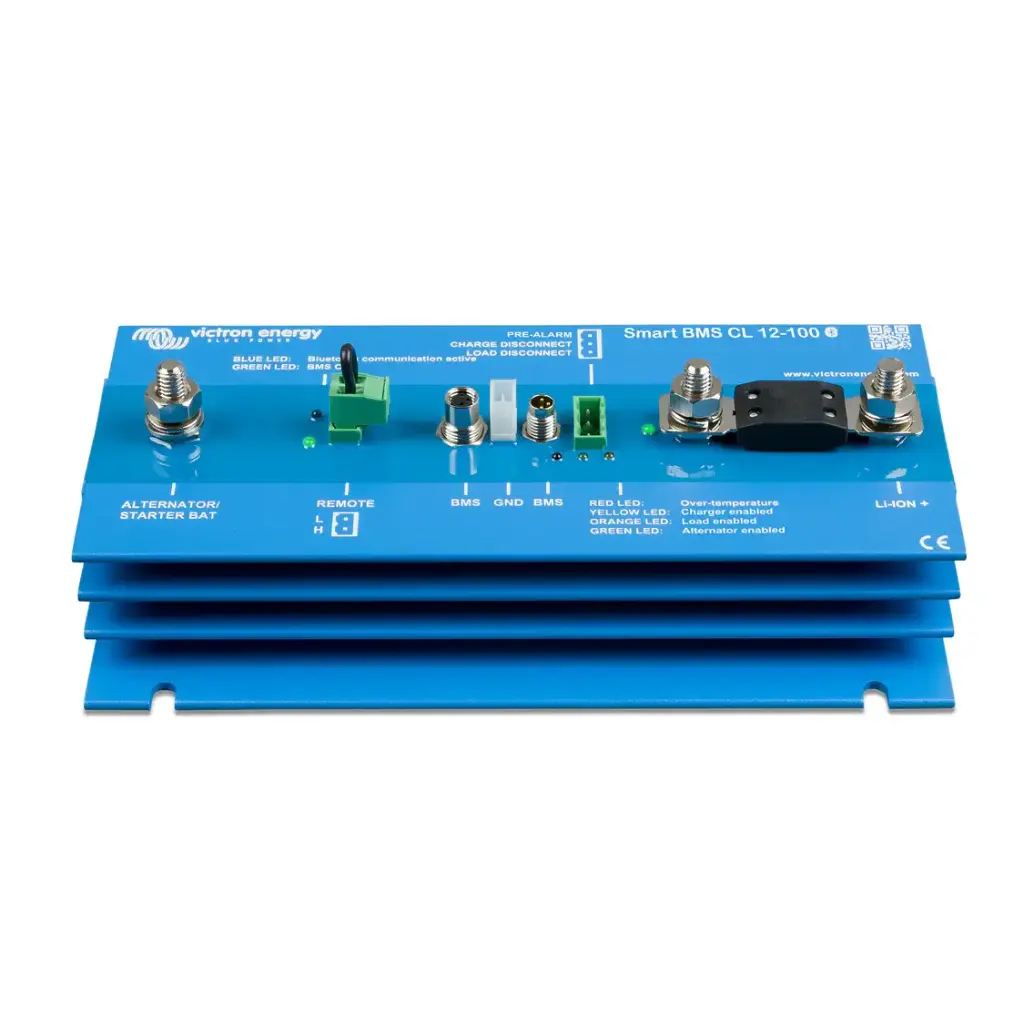

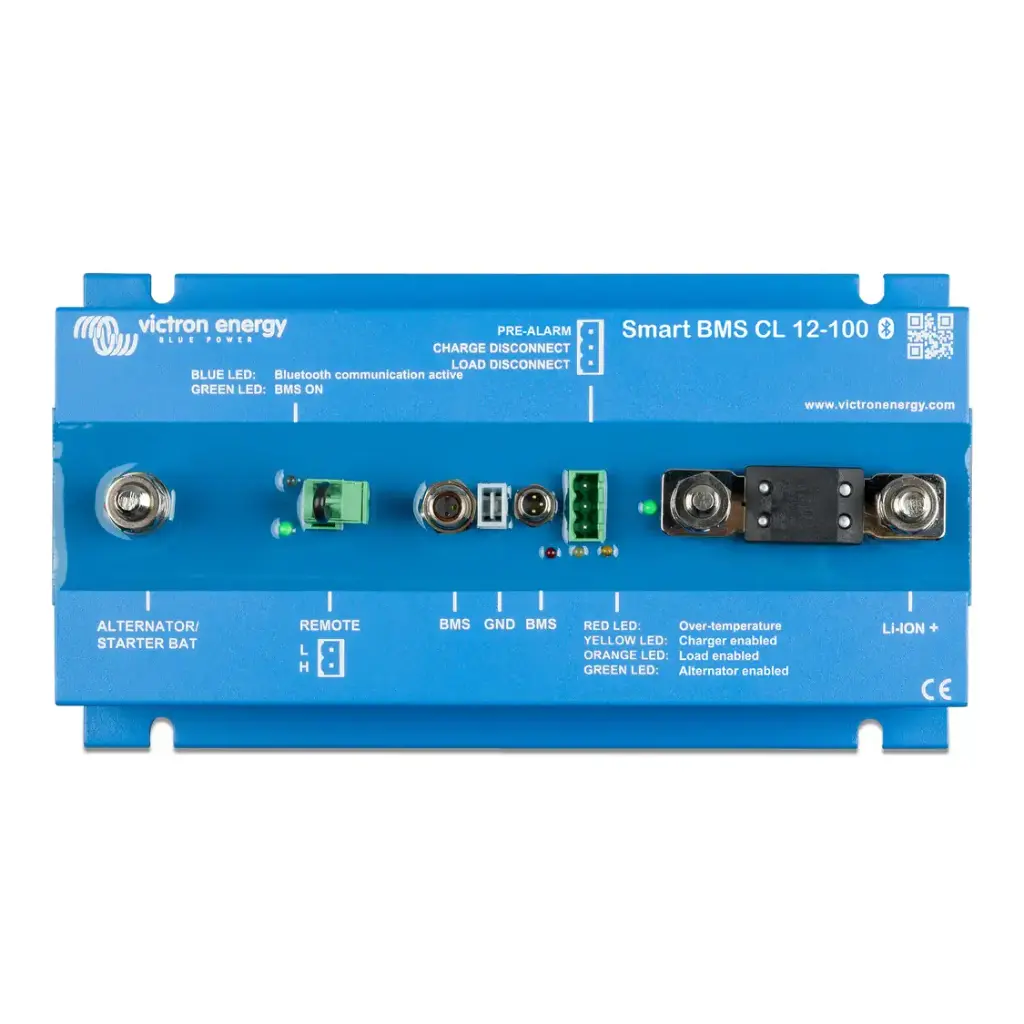

Victron Smart BMS CL 12/100

Battery Management System for 12V Victron Smart LiFePO₄ Batteries

🇳🇱 Engineered by Victron Energy – Trusted Power Management for Vehicles and Boats

The Victron Smart BMS CL 12/100 is an all-in-one battery management system designed exclusively for Victron Lithium Smart 12.8V LiFePO₄ batteries in 12V systems. Ideal for vehicle and marine applications, it ensures safe and efficient charging, load management, and cell protection — all while integrating seamlessly with any 12V alternator system.

Whether you're powering a campervan, off-grid boat, or mobile workstation, this compact BMS monitors and safeguards each individual battery cell against low voltage, high voltage, or high temperature, ensuring long battery life and safe operation.

🔧 Key Features

  • Designed for 12V Alternator Systems
    Optimized for vehicles and boats using a standard 12V alternator. Enables safe connection with any alternator and starter battery.
  • Built-In Alternator Current Limiting
    The Alternator/Starter Batt+ port electronically limits input current to ~90% of the connected fuse rating, protecting both alternator and battery from overload.
    E.g., a 100A fuse limits charging current to approx. 90A.
  • Battery Cell Protection
    Continuously monitors voltage and temperature on each individual cell, automatically disconnecting DC loads or charge sources to prevent damage.
  • Bluetooth Connectivity
    Monitor and configure the BMS via the VictronConnect App, including Instant Readout for real-time system status and diagnostics at a glance.
  • Remote On/Off Terminal
    Remotely enable or disable charging through the alternator port while keeping the BMS active.
  • Pre-Alarm Output
    Activates warning signals (LED, buzzer, or relay) before a shutdown occurs — ideal for proactive fault detection.
  • Load and Charge Disconnect Outputs
    Automatically disconnects loads and charging devices to maintain safe operating conditions.

⚙️ Specifications

  • Battery Compatibility: Victron Lithium Smart 12.8V LiFePO₄ (up to 20 batteries / 84 kWh total capacity)
  • Voltage System: 12V only
  • Alternator Input Current Limit: ~90% of fuse rating
  • Remote On/Off: Supported
  • Pre-Alarm: Supported
  • Bluetooth: Built-in (VictronConnect compatible)
  • Dimensions & Mounting: See Victron Manual for system wiring & integration options

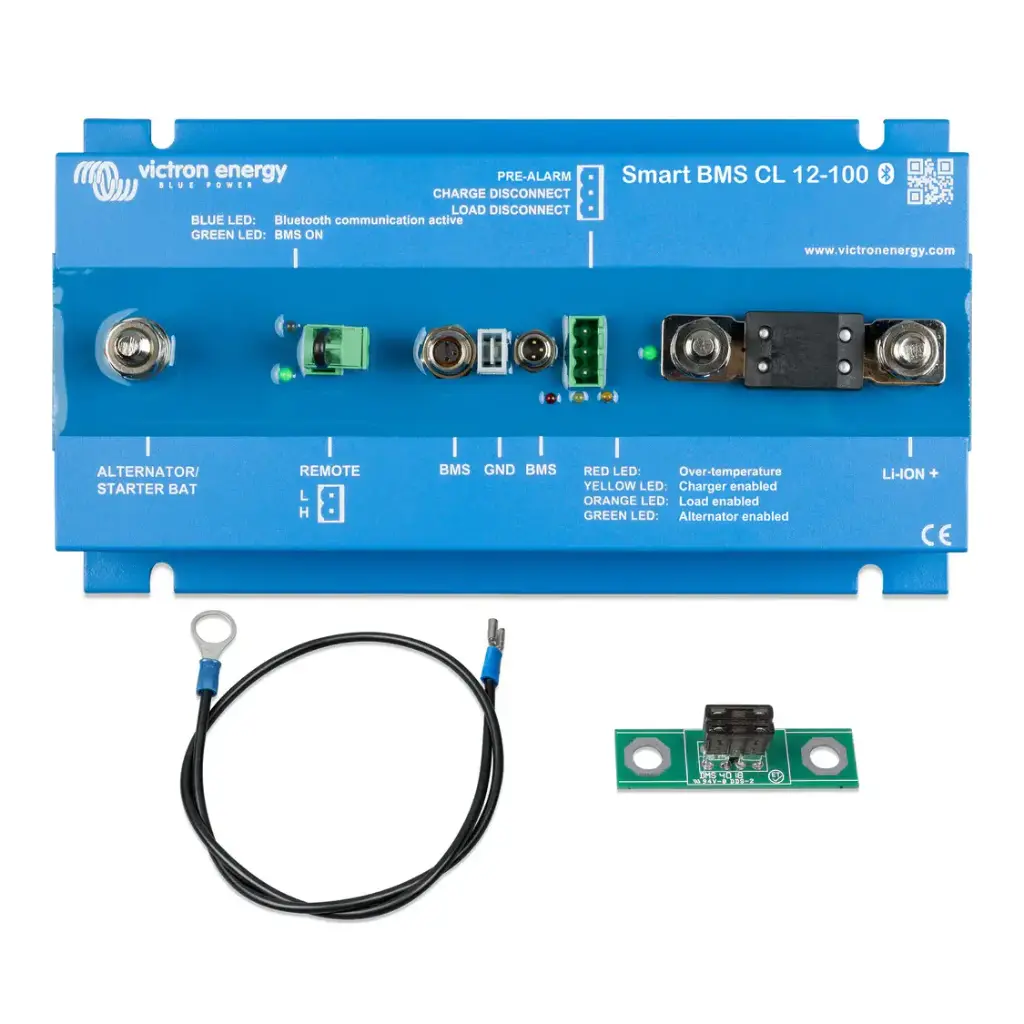

📦 What’s in the Box

  • Victron Smart BMS CL 12/100
  • Terminal connectors
  • Quick-start guide

Note: Some applications may require additional interface cables (refer to the official manual).

Ensure the safety and efficiency of your lithium battery system with the Victron Smart BMS CL 12/100 — the intelligent heart of any 12V Victron LiFePO₄ setup.
