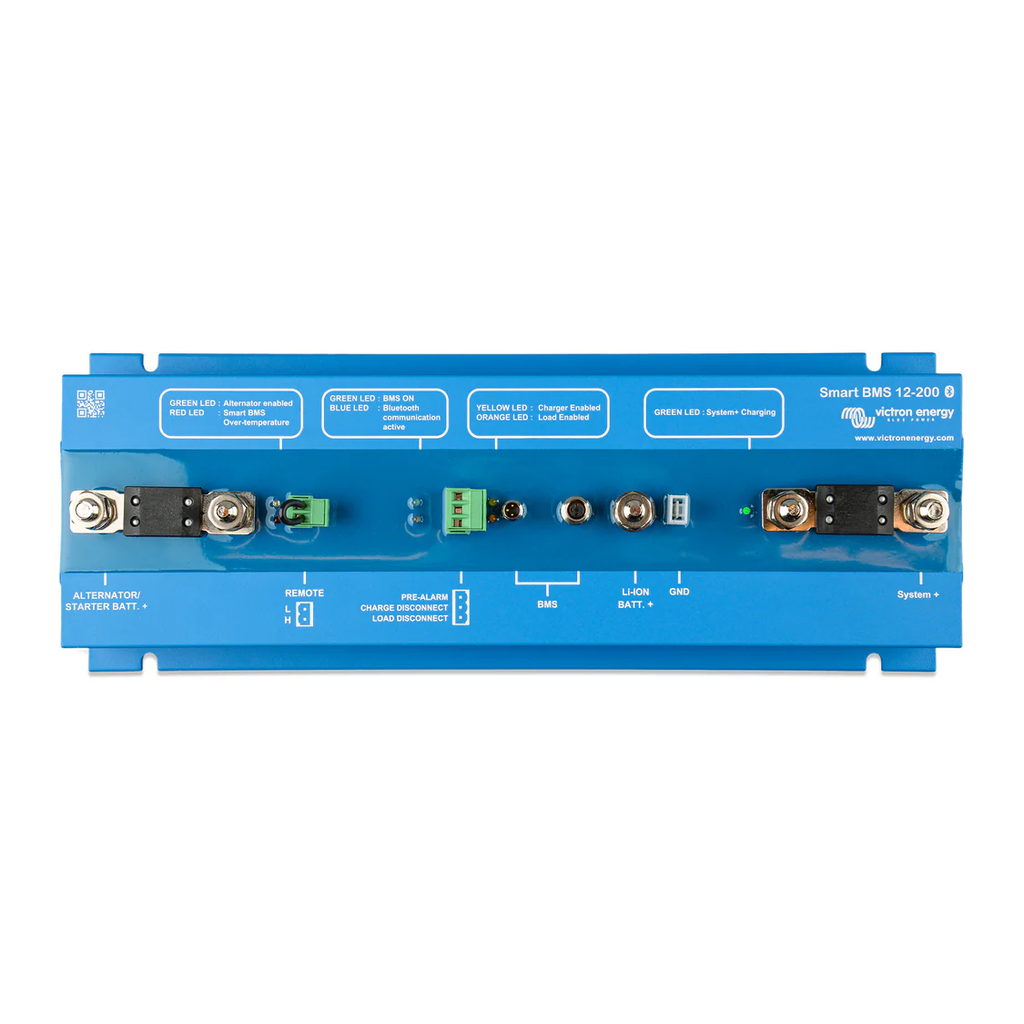

Victron Energy Smart BMS 12/200

Data Sheet  User Manual

The Victron Smart BMS 12/200 is designed for Victron 12.8V Lithium Battery Smart batteries in 12V vehicle and marine systems. It combines battery protection, alternator current limiting and DC load management, with Bluetooth monitoring through VictronConnect.

FEATURES

• Limits alternator charging current to 100A

• Supports up to 200A system current and 400A peak discharge

• Protects against cell undervoltage, overvoltage and overheating

• Automatically disconnects charging sources and loads when necessary

• Built-in Bluetooth monitoring and remote on/off control

• Integrated battery combiner and pre-alarm output

SPECIFICATIONS

• System voltage: 12V

• Battery compatibility: Victron 12.8V Lithium Battery Smart

• Alternator current limit: 100A (125A fuse)

• System current: 200A maximum

• Peak discharge: 400A

• Operating temperature: -40°C to +60°C

• Protection rating: IP65

• Connections: M8 terminals

• Dimensions: 65 × 120 × 340mm

• Weight: 2kg

• Warranty: 5 years

IMPORTANT

• Designed exclusively for Victron 12.8V Lithium Battery Smart batteries.

• The alternator connection is limited to 100A; the system connection supports up to 200A.

• Load and charge disconnect outputs are control signals, not high-current power outputs.

• The pre-alarm output is not short-circuit protected.
