Data Sheet – smallBMS with Pre-Alarm User Manual – smallBMS with Pre-Alarm

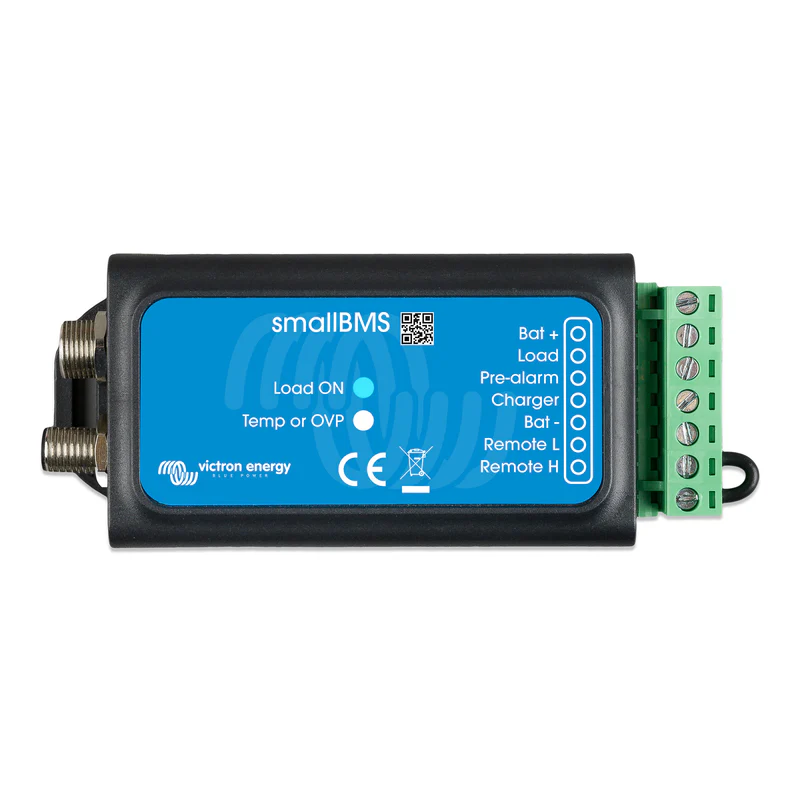

The Victron smallBMS is a compact battery management system designed for Victron Lithium Battery Smart batteries. It monitors battery conditions and controls connected loads and chargers to help protect the battery from undervoltage, overvoltage and temperature-related issues.
FEATURES
Load disconnect output to control compatible loads and BatteryProtect devices
Charge disconnect output to control compatible chargers
Pre-alarm output for a visual or audible warning before load disconnection
Remote on/off control for load and charge disconnect outputs
LED indicators for load and charging status
SPECIFICATIONS
Operating voltage: 8–70V DC
Load disconnect output: Maximum 1A
Charge disconnect output: Maximum 10mA
Pre-alarm output: Maximum 1A
Operating temperature: -20°C to +50°C
Protection rating: IP20
Dimensions: 106 × 42 × 23mm
Weight: 0.1kg
Warranty: 5-year limited warranty
IMPORTANT
Designed exclusively for Victron Lithium Battery Smart batteries.
Not compatible with VE.Bus MultiPlus or Quattro inverter/chargers; the smallBMS has no VE.Bus interface.
Output connections are control signals, not high-current power outputs. The charge disconnect output cannot drive an inductive load such as a relay coil.
The pre-alarm output is not short-circuit protected. The load disconnect output is also not short-circuit protected.
Power supply cable and fuse are not included.
