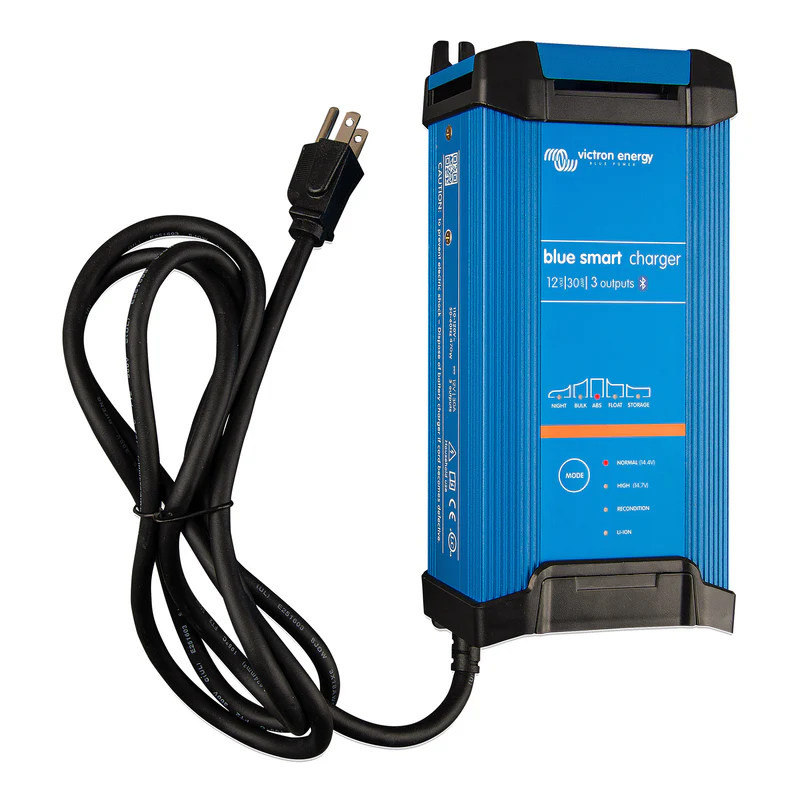

Victron Energy Blue Smart IP22 Charger 12V/30A – Intelligent, Efficient Battery Charging

Ensure reliable and efficient charging for your 12V battery systems with the Victron Blue Smart IP22 Charger (12V/30A). Designed for performance and convenience, this charger uses adaptive charging technology and Bluetooth connectivity for real-time monitoring and full configurability.

Key Features:

• Bluetooth Smart Enabled
  Monitor voltage and current, change settings, and update firmware using the VictronConnect app on iOS or Android.
• Adaptive 6-Stage Charging Algorithm
  Automatically optimizes charge cycles with stages: Test, Bulk, Absorption, Recondition, Float, and Storage.
• High Efficiency Design
  Achieves up to 94% efficiency with minimal heat generation. Standby power consumption drops to just 0.5W.
• Storage Mode
  Reduces float voltage after 24 hours of inactivity to prevent corrosion and sulfation—ideal for batteries in standby use.
• Lithium Battery Compatible
  Supports Li-ion charging with recovery function for fully discharged batteries and automatic reconnect.
• Fully Programmable via App
  Customize charge voltage, recondition settings, and temperature compensation. Expert mode unlocks full parameter access.
• Night & Low Modes
  Operates silently with reduced current output—Night mode ends after 8 hours; Low mode is manual.
• Thermal Protection
  Output is reduced automatically at elevated temperatures (up to 50°C) without shutdown.
• Multi-LED Status Display
  Clear status indication of charging stage and mode settings: Normal, High, Recondition, or Li-ion.
• Charge Cycle History
  View statistics for the last 40 charge cycles directly in the app.
• VE.Smart Networking
  Wirelessly connect to Smart Battery Sense, SmartShunt, or additional chargers for synchronized charging and shared data.
• Parallel Charging Capability
  Synchronize up to 10 units in a VE.Smart network for increased capacity, redundancy, and flexibility in tight spaces.

Ideal For:

Off-grid systems, RVs, boats, backup setups, and professional-grade energy systems requiring reliable battery maintenance and advanced charging control.
